Specifications
Brand Name :
Hunter Men
Model Number :
HT08-90THZ
Certification :
SGS,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
50 rolls
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/A, D/P,Alibaba,Paypal
Supply Ability :
300rolls per day
Delivery Time :
1-15 work days
Packaging Details :
200 Yards/Roll,1 rolls in Carton
Melt Flow Index: :
35g/10min(Condition:ASTMD1238-04)
Hardness :
97±2A(Shore A)
Melt Point :
60±5℃
Operate Temperature :
90-150℃
Thickness(mic) :
30mic
Width(mm) :
1420mm
Length(Yards) :
500 Yards/Roll
Finished Product :
142cm*500yards/roll or as your demands
Description

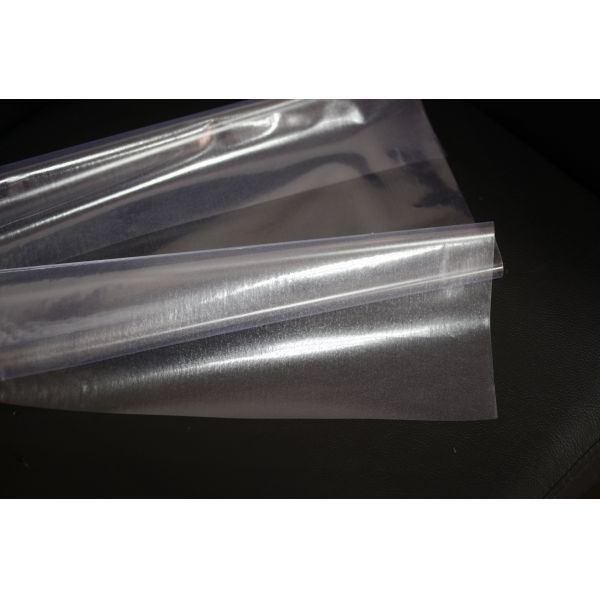

Milky Translucent 0.03mm Thickness Polyurethane Hot Melt Glue Film For Composite Leater or Textile Fabrics

Model Number:HT08-90TH

Description:

HT08-90TH structure is PE film+ TPU film,it is suitable to bonding many materials and can be heat plasticized adhesive repeated. It have good adhesion for textile, polyester, cotton, blended fabric, TPU, PVC, PC, ABS and so on. This adhesive product possesses excellent chemical additives resistant.HT08-90TH widely applied in TPU and leather lamination,moblie phone case, earphone case,metals,automobile trims,Ic card sealing, PVC lamination etc.

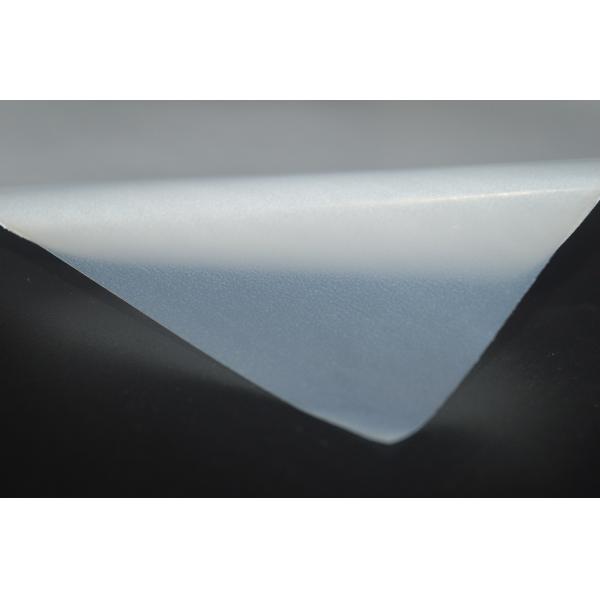

0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent

Physical Characteristics:

Color Milk Translucent Release Liner PE Film
Density 1.18±0.02g/cm³ Conventional thickness 30mic
Melt Flow Index

35/10min

Conventional Width 1420mm
Hardness (Shore A) 97±2A Length 400yards or 500yards
Melt Point 60±5 Normal Size /Rolls

1420mm(width)*500yards(Length)

Recommended Bonding Conditions:

First Backing Operate Second Hot Pressure Operate
Backing Temperature 90℃-120℃ Hot Pressure Temperature 110℃-130℃
Hot Pressing Time 1-5seconds Hot Pressure Time 8-15seconds
Pressure 0.6mpa Pressure 0.6mpa

Remarks:The above information and technical support are besed on our current knowledge and experience.They are without guranteen and legal cliam.To obtain the test processing conditions,we suggest you test the samples before using it.

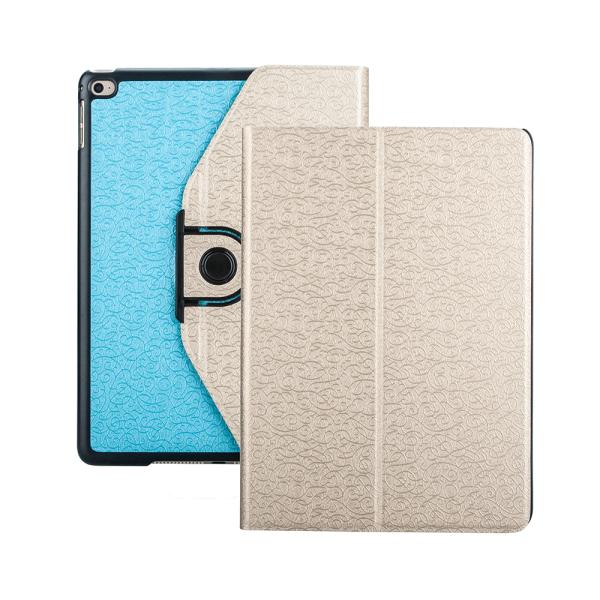

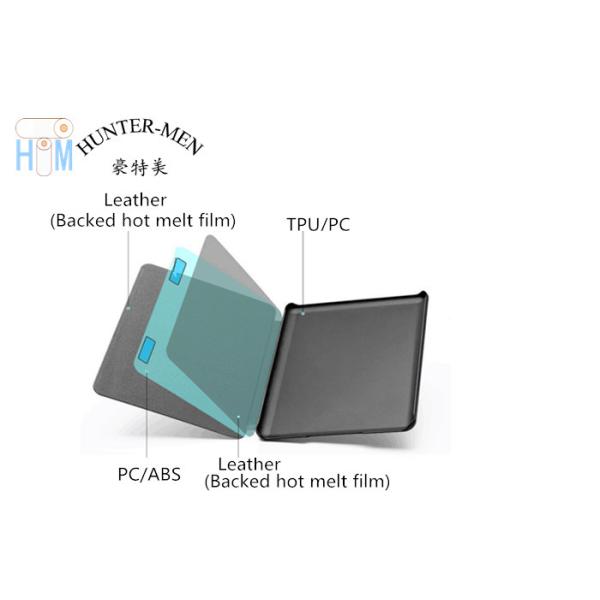

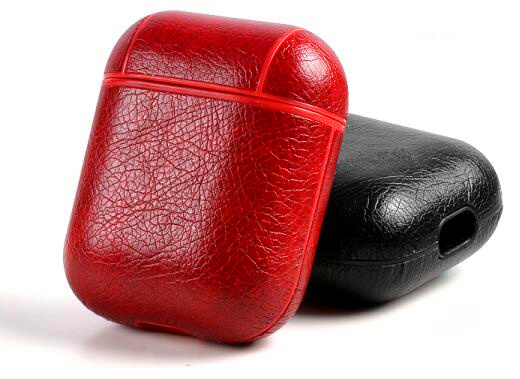

Applications:

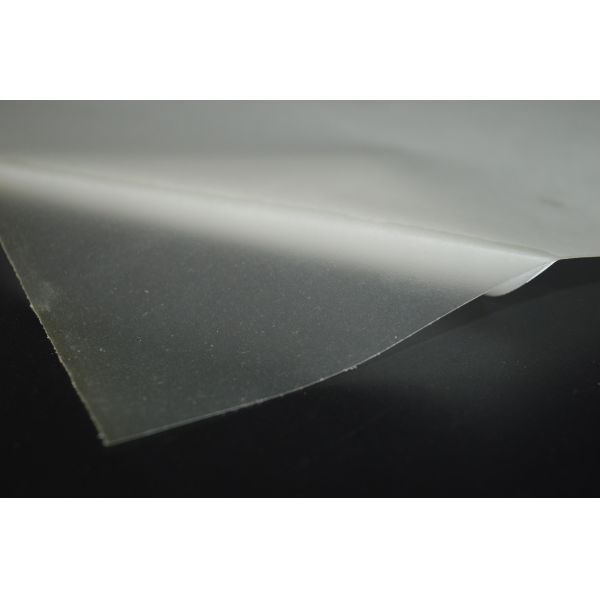

0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent
0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent 0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent 0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent

Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.

How to Use:

Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.

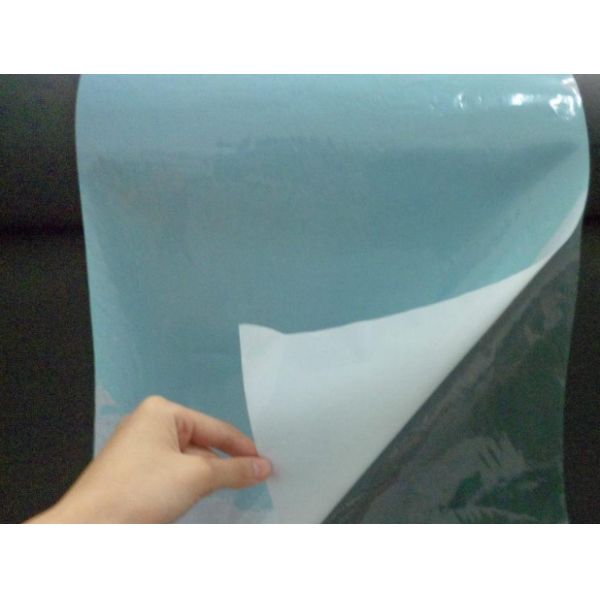

0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent

Packaging Details:

1PC/PE FILM, 500yard/roll, 1 rolls/CTN, or it's up on the customer's option

Delivery Detail:

Shipped in 1-15 days after payment

Our Main Hot Melt Adhesive Film:

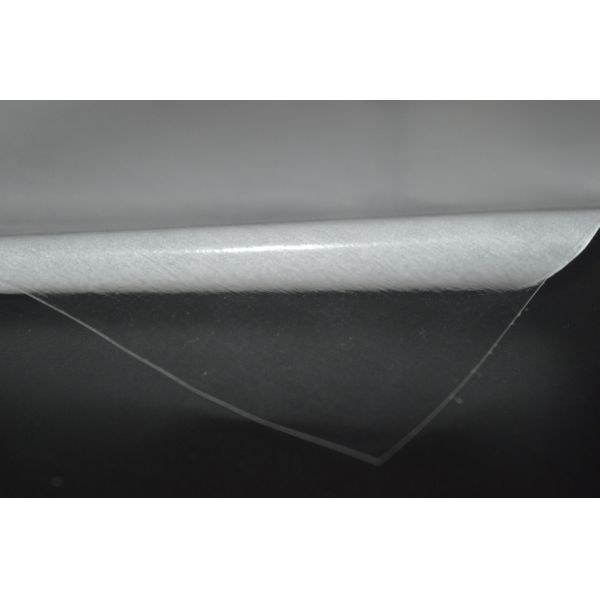

HOT MELT ADHESIVE FILM SERIES
0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent 0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent 0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent 0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent 0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent
PO/EAA HOT MELT ADHESIVE FILM PES HOT MELT ADHESIVE FILM PA HOT MELT ADHESIVE FILM TPU HOT MELT ADHESIVE FILM EVA HOT MELT ADHESIVE FILM

Support Customization Production:

We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.

1. According to the Film Performance:

A.Melt Point: 70-110℃,

B.Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),

C.Thickness:0.05mm-1mm,

D.Width: 5mm-1500mm,

E.Length:1M-1000M/roll,

F.Colors:All of colors

2.According to the base material:

A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.

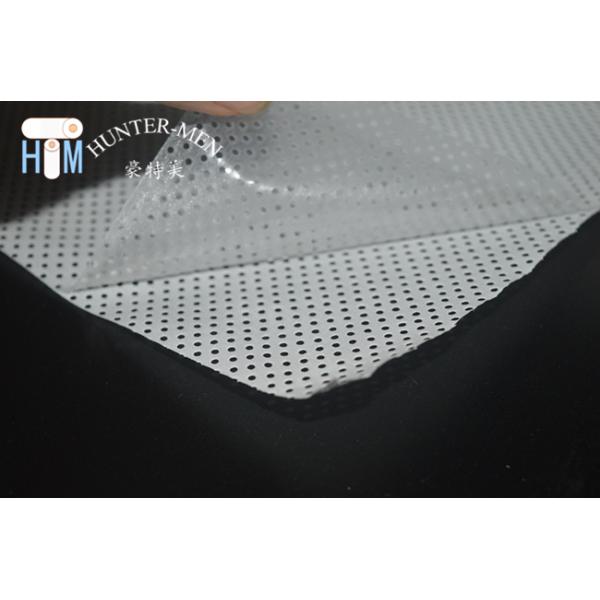

3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)

A.Conventional Aperture:1.4mm,1.5mm,1.8mm

B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm

0.03mm Polyurethane Hot Melt Glu Film 500 Yards / Roll Translucent

Why Choose Us:
1, more than 10 years experience in production.
2, well-known products: Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.

We can tailor hot melt film as your business and demands.

FAQ:

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
