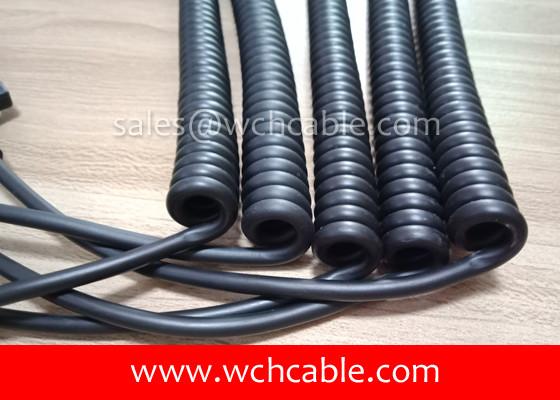

UL21330 Pneumonia Tester Curly Cable
UL21330 Pneumonia Tester Curly Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL21330
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
200 pcs per box
Price :
USD 0.155 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Style Number :
UL21330
Type :
Curly Cable
Application :
Pneumonia Tester Connect
Feature :
Easy working
Conductor Material :
Pure Copper Wire Strands
Standard :
AWM
Conductor Gauge :
10-32AWG
Rated Voltage :
1000V
Description

UL21330 Pneumonia Tester Curly Cable

Rating: 80 deg C, 1000 Vac

Conductor Size: 10-32AWG

Conductor Quantity: 2 ~ 50 cores

Insulation Material: Polypropylene PP

Jacket Material: polyurethane PUR.

Executed Standard: AWM.

Application: pneumonia tester connect purpose.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21330 3C 28 7/0.127 0.76 2.00 0.381 5.57 239.00
3C 26 7/0.16 0.76 2.10 0.381 5.79 150.00
3C 24 11/0.16 0.76 2.20 0.381 6.00 94.20
3C 22 17/0.16 0.76 2.40 0.381 6.43 59.40
3C 20 21/0.178 0.76 2.50 0.381 6.65 36.70
3C 18 34/0.178 0.76 2.80 0.381 7.30 23.20
3C 16 26/0.254 0.76 3.10 0.381 7.94 14.60
4C 28 7/0.127 0.76 2.00 0.381 6.09 239.00
4C 26 7/0.16 0.76 2.10 0.381 6.33 150.00
4C 24 11/0.16 0.76 2.20 0.381 6.57 94.20
4C 22 17/0.16 0.76 2.40 0.381 7.06 59.40
4C 20 21/0.178 0.76 2.50 0.381 7.30 36.70
4C 18 34/0.178 0.76 2.80 0.381 8.02 23.20
4C 16 26/0.254 0.76 3.10 0.381 8.75 14.60
5C 28 7/0.127 0.76 2.00 0.381 6.66 239.00
5C 26 7/0.16 0.76 2.10 0.381 6.93 150.00
5C 24 11/0.16 0.76 2.20 0.381 7.20 94.20
5C 22 17/0.16 0.76 2.40 0.381 7.74 59.40
5C 20 21/0.178 0.76 2.50 0.381 8.01 36.70
5C 18 34/0.178 0.76 2.80 0.381 8.82 23.20
5C 16 26/0.254 0.76 3.10 0.381 9.64 14.60
6C 28 7/0.127 0.76 2.00 0.381 7.26 239.00
6C 26 7/0.16 0.76 2.10 0.381 7.56 150.00
6C 24 11/0.16 0.76 2.20 0.381 7.86 94.20
6C 22 17/0.16 0.76 2.40 0.381 8.46 59.40
6C 20 21/0.178 0.76 2.50 0.381 8.76 36.70
6C 18 34/0.178 0.76 2.80 0.381 9.66 23.20
6C 16 26/0.254 0.76 3.10 0.381 10.56 14.60
7C 28 7/0.127 0.76 2.00 0.381 7.37 239.00
7C 26 7/0.16 0.76 2.10 0.381 7.68 150.00
7C 24 11/0.16 0.76 2.20 0.381 7.98 94.20
7C 22 17/0.16 0.76 2.40 0.381 8.60 59.40
7C 20 21/0.178 0.76 2.50 0.381 8.90 36.70
7C 18 34/0.178 0.76 2.80 0.381 9.82 23.20
7C 16 26/0.254 0.76 3.10 0.381 10.74 14.60
8C 28 7/0.127 0.76 2.00 0.381 7.80 239.00
8C 26 7/0.16 0.76 2.10 0.381 8.12 150.00
8C 24 11/0.16 0.76 2.20 0.381 8.45 94.20
8C 22 17/0.16 0.76 2.40 0.381 9.10 59.40
8C 20 21/0.178 0.76 2.50 0.381 9.43 36.70
8C 18 34/0.178 0.76 2.80 0.381 10.41 23.20
9C 28 7/0.127 0.76 2.00 0.381 8.19 239.00
9C 26 7/0.16 0.76 2.10 0.381 8.54 150.00
9C 24 11/0.16 0.76 2.20 0.381 8.89 94.20
9C 22 17/0.16 0.76 2.40 0.381 9.58 59.40
9C 20 21/0.178 0.76 2.50 0.381 9.92 36.70

UL21330 Pneumonia Tester Curly Cable

Related: curly cable, spring cable, spiral cable, curly cord
