300V TPU Curly Cable UL21198 20AWG 4C OD5.2mm VW-1 Matt Black L=230mm Straight Tails
300V TPU Curly Cable UL21198 20AWG 4C OD5.2mm VW-1 Matt Black L=230mm Straight Tails
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-200405230
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
100 PCS
Price :
USD0.3212
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Rated Voltage :
300V
Jacket Material :
TPU
Product Name :
Curly Cable
UL Style :
21198
Curly Segment :
230mm
Colour :
Matt Black
Description

300V TPU Curly Cable UL21198 20AWG 4C OD5.2mm VW-1 Matt Black L=230mm Straight Tails

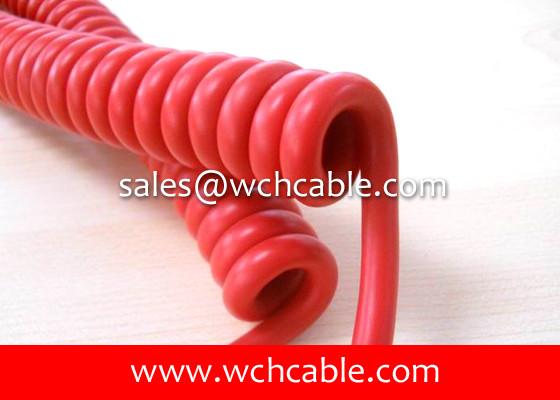

Spiral Cable
Construction		 Spiral Length (unexpanded) (mm) 230
Straight Ends (mm/mm) 600/850
Extension Ratio 　 1 : 3.5
Spiral Outer Ø (mm) 18.50
Tail Angle 　 180 degree
End Treatment 　 Cut Flat
Electrical
Capability		 Working Voltage (V) 300
Temp Range (°C) -40 to +80
Test Voltage (V) 2000/3000
Nominal Voltage (V) 300
Conductor Resistance (Ω/KM 20°C) 36.7
Insulation Resistance (MΩ/KM 20°C) 100
Standard
& Use		 UL Marking 　 Per UL21198
CUL Standard 　 I/II A
Flammability 　 VW-1
Raw Cable
Construction		 Conductor Size (AWG) 20
Insulation Material 　 PP (RoHS)
Insulation Diameter (mm) 1.50
Conductor Quantity 　 4 Cores
Assembly 　 Stranded in layers
Overall Diameter (mm) 5.20
Jacket Material 　 TPU (RoHS)
Surface Effect 　 Matt Black
