300V UL Power Cord Cable SJT 14AWG 3C ABC Conductors OD9.3mm PVC Black
300V UL Power Cord Cable SJT 14AWG 3C ABC Conductors OD9.3mm PVC Black
Specifications
Brand Name :
WCH Cable
Model Number :
SJT 14AWG 3C OD9.30 BLK
Certification :
UL & CUL Certificate
Place of Origin :
Dongguan, China
MOQ :
5000 meters
Price :
USD0.1885
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
UL Type :
SJT
Application :
Power Cord Cable
Conductor Gauge :
14AWG
Diameter :
9.30mm
Jacket Material :
PVC
Colour :
Black
Description

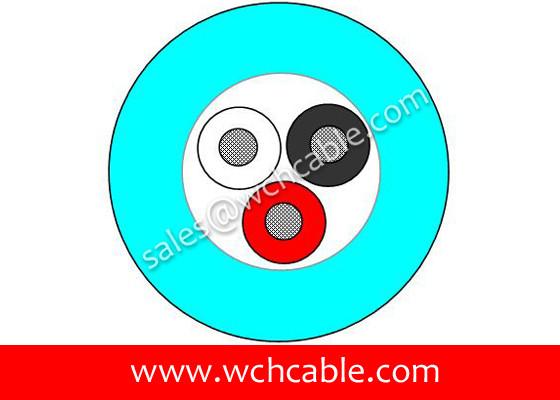

300V UL Power Cord Cable SJT 14AWG 3C ABC Conductors OD9.3mm PVC Black

Conductor Specification (AWG) 14
Section Area (mm²) 2.0775
Material 　 Bare Stranded Copper
Configuration (mm) AS41/0.254±0.008
Conductor Quantity 　 3C
Insulation Average Thickness (mm) 0.77
Minimum Thickness (mm) 0.61
Over Diameter (mm) 3.50±0.10
Material 　 PVC (RoHS)
Colour 　 Black, White, Red
Jacket Average Thickness (mm) 0.86
Minimum Thickness (mm) 0.69
Overall Diameter (mm) 9.30±0.30
Material 　 PVC (RoHS)
Colour 　 Black
Electrical
Capability		 Rated Temperature (℃) 105
Rated Voltage (V) 300
Conductor Resistance (Ω/KM 20℃) 8.62
Insulation Resistance (MΩ/KM 20℃) 10
Flammability Fire Retardance 　 VW-1
　 　 CUL FT1
Approval UL Style Number 　 SJT
Environmental Standard 　 Lead Free
　 　 RoHS & Reach Compliant
