Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control
Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control
Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control
Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control
Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control
Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control
Specifications
Brand Name :
Topland
Model Number :
SW12-D1
Certification :
API
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
Western Union,T/T
Supply Ability :
5 SETS/MONTH
Delivery Time :
ABOUT 40 DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Material :
Alloy;Steel
Application :
Drilling
Customization :
Acceptable
Condition :
New
Durability :
High
Size :
At Request
Description

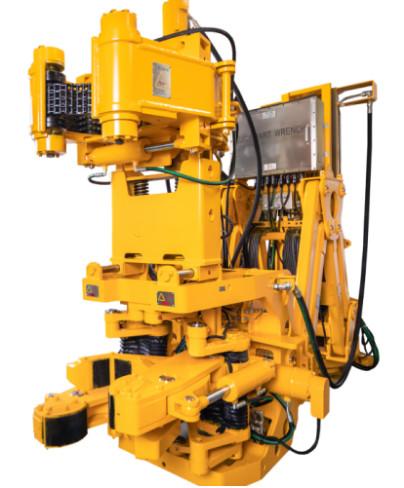

SW12-D1 IRON ROUGHNECK Ultra-Deep Well Smart Wrench Remote Control and Wireless Control (Standard)

The equipment applies a unique dual torque wrench design with higher make-up torque which is suitable for dual elevator operation in ultra-deep wells. AI machine vision and low-temperature upgrade packages are optional.

Techincal Specifications
Model SW12-D1
Hydraulic Requirement Rated Pressure: 17.5MPa (2,500psi)
Max Pressure: 21MPa (3,000psi)
Rated Flow: 140LPM (37GPM)
Min Flow: 120LPM (32GPM)
Pipe Range 2-7/8 ″DP ~ 9-3/4 ″DC
Max. Spin Speed 80RPM @ 5 ″DP
Max. Spin Torque 5,000N·m (3,750ft-lb )
Max. Make-up Torque 140,000N·m (100,000ft-lb)
Max. Break-out Torque 160,000N·m (120,000ft-lb)
Joint Height 570mm ~ 1,570mm (22.4″~61.8″)
Horizontal Travel 2,365mm ~ 3,840mm (93.5″~151.2″)
Controls Remote Control and Wireless Control (Standard)

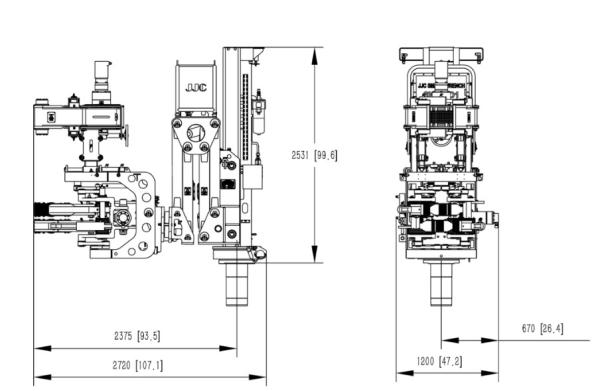

Dimensions
(WxHxL)		 1,200mm×2,531mm×2,375mm
( 47.2″×99.6″×93.5″)
Weight 3,925kg (8,653lbs)

Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control

Hydraulic Drive Well Drilling Iron Roughneck Ultra Deep Well Smart Wrench Remote Control

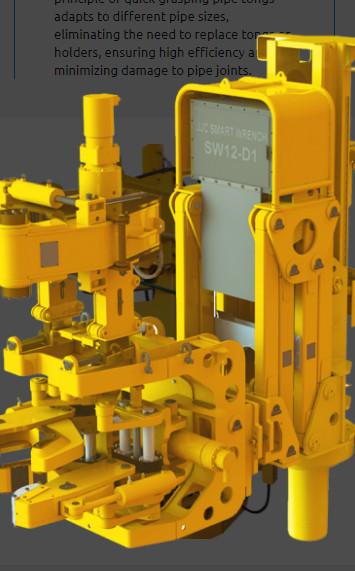

The structure is simple and reasonable applying modular structural design, more convenient for maintenance. Durable and robust, low failure rate, less maintenance, and lower maintenance cost.Patented continuous chain spinner effectively reduces damage to the pipe. Patented torque wrench applying the principle of quick grasping pipe tongs adapts to different pipe sizes, eliminating the need to replace tongs or holders, ensuring high efficiency and minimizing damage to pipe joints.
