High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1
High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1
High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1
High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1
High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1
High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1
Specifications
Brand Name :
Topland
Model Number :
SW10-D1
Certification :
API
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
Western Union,T/T
Supply Ability :
5 SETS/MONTH
Delivery Time :
ABOUT 35 DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Material :
Alloy;Steel
Application :
Drilling
Customization :
Acceptable
Condition :
New
Description

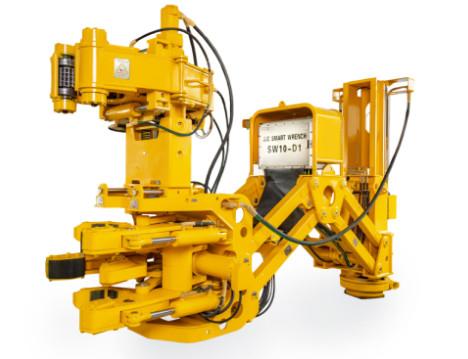

SW10-D1 IRON ROUGHNECK Standard Smart Wrench Remote Control And Wireless Control (Standard)

The smart wrench is a drill floor robot used for making up and breaking out the tool joints of oil & gas drilling tubulars. The equipment applies patented chain-based spinning wrench and a patented smart torque wrench, which can carry out the making up and breaking out operation quickly and safely. AI machine vision and low-temperature upgrade packages are optional.

Techincal Specifications
Model SW10-D1
Hydraulic Requirement Rated Pressure: 17.5MPa (2,500psi)
Max Pressure: 21MPa (3,000psi)
Rated Flow: 140LPM (37GPM)
Min Flow: 120LPM (32GPM)
Pipe Range 2-7/8 ″DP ~ 9-3/4 ″DC
Max. Spin Speed 80RPM @ 5 ″DP
Max. Spin Torque 5,000N·m (3,750ft-lb )
Max. Make-up Torque 140,000N·m (100,000ft-lb)
Max. Break-out Torque 160,000N·m (120,000ft-lb)
Joint Height 650mm ~ 1,650mm (25.6″~65.0″)
Horizontal Travel 1,850mm ~ 3,300mm (72.8″~129.9″)
Controls Remote Control and Wireless Control (Standard)
Dimensions
(WxHxL)		 1,190mm×2,531mm×1,880mm
( 46.7″×99.6″×74.0″)
Weight 3,700kg (8,157lbs)

High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1

High Strength Iron Roughneck Smart Swrench Pipe Handling Tool Sw10-D1

We focus on manufacturing, supplying oilfield onshore drill equipment and rig components.Service, value, and quality are the main priorities of Topland as we pave the way to building a sustainable oil future.Our priority is attention and attitude: not only do our products meet, or in most cases, exceed the technical specifications, international standards, quality requirement and scheduled delivery time, but also provide a smooth, care-free process for our clients.
