Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
Specifications
Model Number :
TF0360T
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Certification :
CCC, ISO/TS16949
Price :
Negotiable
Supply Ability :
3000 Per Month
Tipping System :
Hyva
Loading Material :
Sand, Stone, Rock, Coal
Delivery Time :
30 work days
Tipping Method :
Front
Place of Origin :
China
Material :
Steel
MOQ :
1
Packaging Details :
Nude Packing
Thickness of Body Steel :
Floor 8mm, Side 6mm, Others Are Optional
Payment Terms :
L/C,T/T
Condition :
New
Color :
Yellow, Red, White, etc
Brand Name :
Tourfine
Types of Suspension Systems :
Mechanical suspension
Axle Brand :
Fuwa, BPW, Aq, Zy
Description

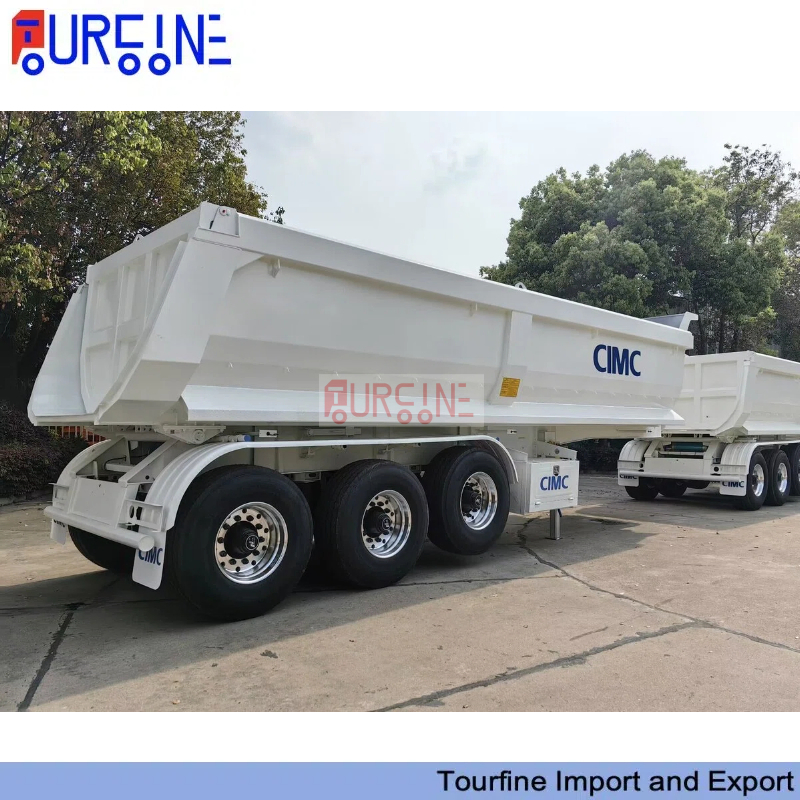

Heavy-Duty 3 Axle Dump Trailer with 60 Ton Payload for Mining Operations

Product Description


Designed for demanding mining and construction operations, the 60 Ton Tri-Axle Tipping Trailer provides a reliable solution for transporting aggregates, stone, ore, coal, and other bulk materials.

Its reinforced steel structure offers excellent resistance to heavy loads and harsh road conditions. The hydraulic tipping mechanism allows quick unloading, helping operators improve fleet efficiency and reduce turnaround time.

With durable running gear and a stable suspension system, the trailer is suitable for long-distance hauling as well as off-road applications in quarries, mines, and large-scale infrastructure projects.

Product Parameters

Dimension 9300*2500*3600mm(outside)
Payload(kg) 35cbm / 60tons
Kerb Mass(kg) 85000kg
Thickness Floor 6mm ,side 4mm stainless steel
Main beam Mild Alloy (16Mn) by Automatic submerged arc welding.The height of the beam is 500 mm, upper plate is 14mm,down plate is 16mm,middle plate is 8mm.
Box size 8700*2400*1700mm 6mm
Axle 3 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear Fuwa 28T lifting capacity with two speed
King Pin 2.00 inch bolt-in king pin Brand JosT
Suspension Mechanical suspension reinforced type
Leaf Spring 90mm(w)*13mm(T)*10 Layer
Pneumatic Braking System Dual line pneumatic brake system,T30 air chamber ,40L air tanksEmergency relay valve
Rim 9.0-20*12 pCS
Tire 12R22.5*12 pCS
Accessories One standard tool box
Spare tire rack one
Electrical system 24 volt electrical system.7 pin electrical connector. Parking stop, reversenumber plate and indicator lights.rear lights
conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosiveprime, 2 coats of final paint
Shipping Terms By Bulk CargO/RORO OR 45ft HQ container

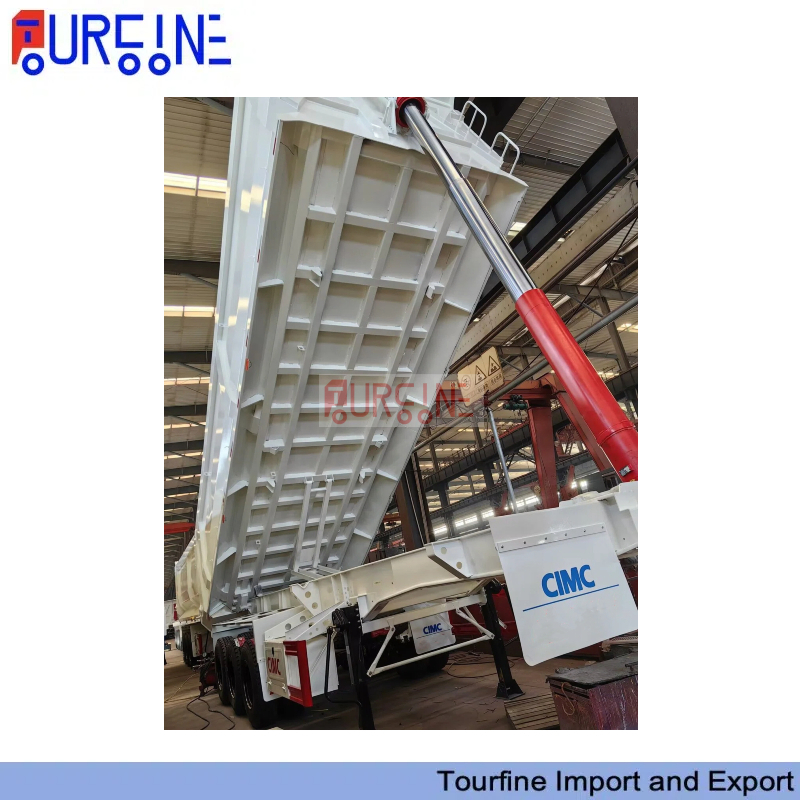

Detailed Photos


Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining OperationsReinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining OperationsReinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining OperationsReinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining OperationsReinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations

FAQ

Q1: What's your MOQ?
A: One unit

Q2: What are your payment terms?
A: We accept T/T or LC.

Q3: How about the after-sales service?
A: We offer comprehensive technical support and spare parts to ensure the long-lasting performance of our products. Spare parts are provided via DHL, TNT, UPS, or FedEx.

Q4: What is your shipping method?
A: We ship via Container, Flat rack container, Roro vessel, or Bulk vessel.

Q5: What is your delivery time?
A: Delivery takes approximately 7 to 60 days after receiving the deposit.

Q6: Can you meet my special requirements?
Absolutely! We can customize trailers and trucks to meet your specific needs.

Q7: Do you offer high-quality spare parts?
A: Yes, we do.

Successful Case


Reinforced Steel Heavy Duty Dump Trailers 3 Axle 60 Ton Payload For Mining Operations
