Specifications
Delivery Time :
30 work days
ABS Anti-lock Braking System :
With
Thickness of Body Steel :
Floor 8mm, Side 6mm, Others Are Optional
Model Number :
TF0480T
Payment Terms :
L/C,T/T
Material :
High-strength steel
Supply Ability :
3000 Per Month
Tipping Method :
Front
Price :
Negotiable
Certification :
CCC, ISO/TS16949
Packaging Details :
Nude Packing
Types of Suspension Systems :
Mechanical suspension
Brand Name :
Tourfine
Tipping type :
Hydraulic
MOQ :
1
Place of Origin :
China
Description

80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System

Product Description


The 4 Axle 80 Ton Front Tipping Semi Trailer is designed to handle high-volume transportation tasks in mining, quarry, construction, and infrastructure projects. With an 80-ton payload capacity, it is suitable for hauling sand, gravel, stone, coal, ore, and other bulk materials efficiently and safely.


Its hydraulic front tipping system provides smooth and rapid unloading, helping reduce operation time and improve overall transport efficiency. The trailer is built with a reinforced high-strength steel body and chassis, ensuring excellent durability and resistance to heavy loads and demanding road conditions.


Featuring a heavy-duty suspension system, reliable axle configuration, and optimized structural design, this tipper trailer offers enhanced stability, load distribution, and long-term performance. It is an ideal choice for fleet operators and contractors seeking a dependable and cost-effective solution for large-scale bulk material transportation.


Product Parameters

Product name 4 axles dump semi trailer
Size(mm) 10500*2500*3900
Bucket capacity 40 cubic meters
Lifting system Hyva brand fe/fc type cylinders diameter=202 mm
Axles 4 * 13ton capacity(brand optional)
Tipping box T700 / High Wear Resistant Steel
Main beam Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ;material is q345b steel.
Suspension Mechanical suspension (air suspension optional)
Leaf spring 90(w)mm*13(thickness)mm*10 layer or 100mm*12mm*12(special for export market )

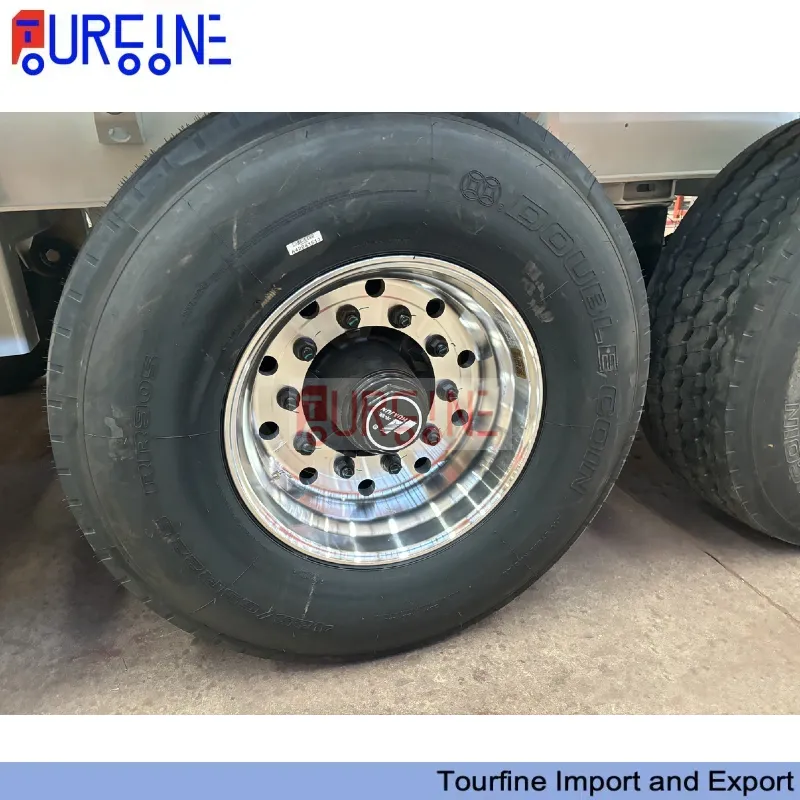

Tire 12r22.5 / 11.00r20 (other size optional)
Rim 9.00-22.5 / 11.00r20 (other size optional)
Kin pin Jost brand 2.0'' / 3.5'' bolt type king pin
Landing gear 28t double speed jost / taihua brand
Braking system Double air chamber ,brake valve,45l air tanks ;abs optional
Electrical Led light , 7 ways ,24v
Accessory One tooling box with a set of standard trailer tool
Painting 1.sand blasting processing clean rust.
2.coat of anticorrosive primer.
3.coats of finish urethane paint.
4.color as customer choice.

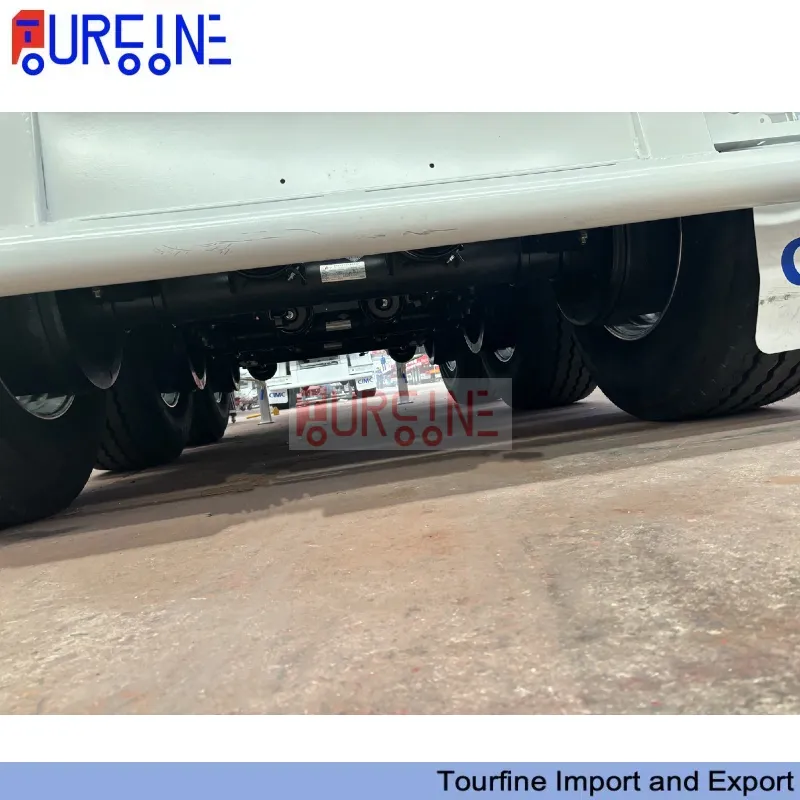

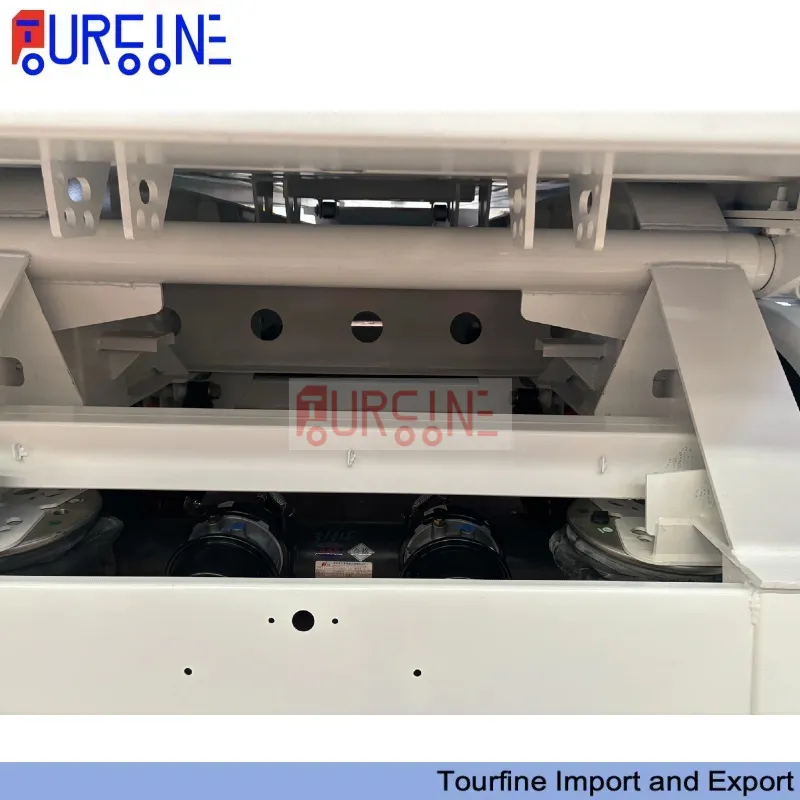

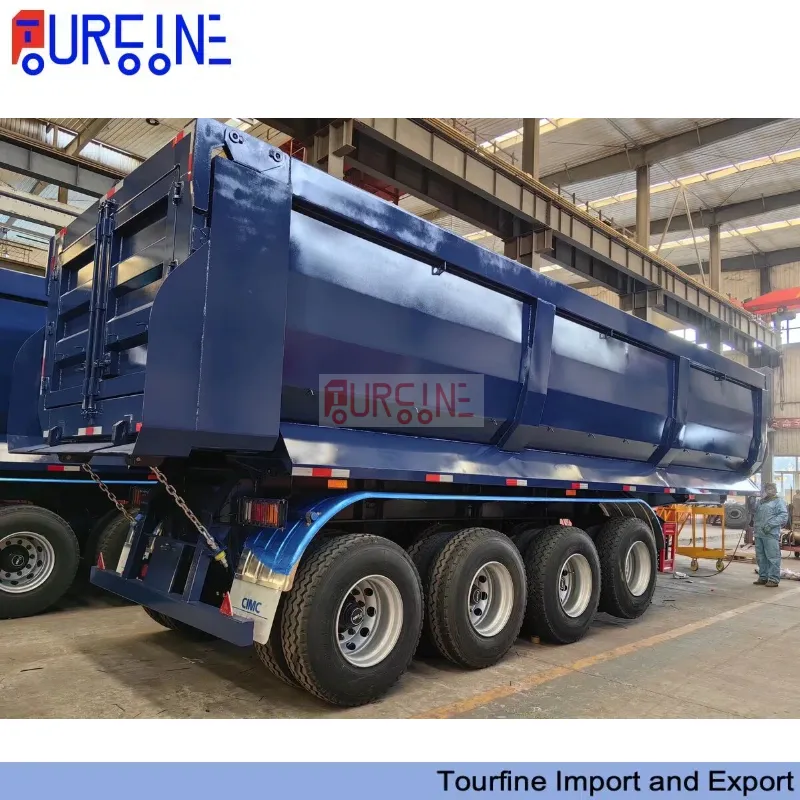

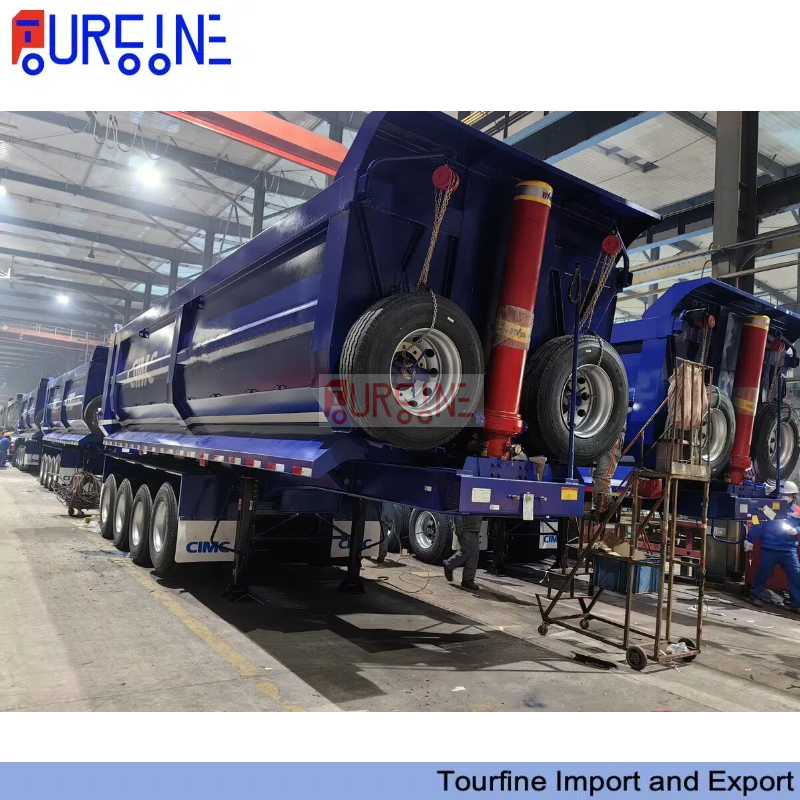

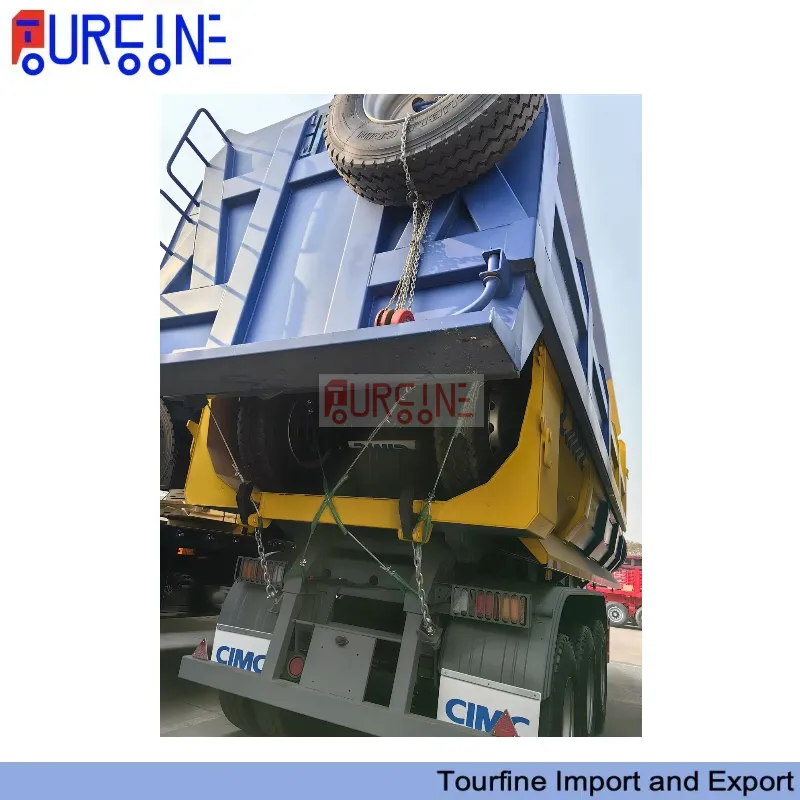

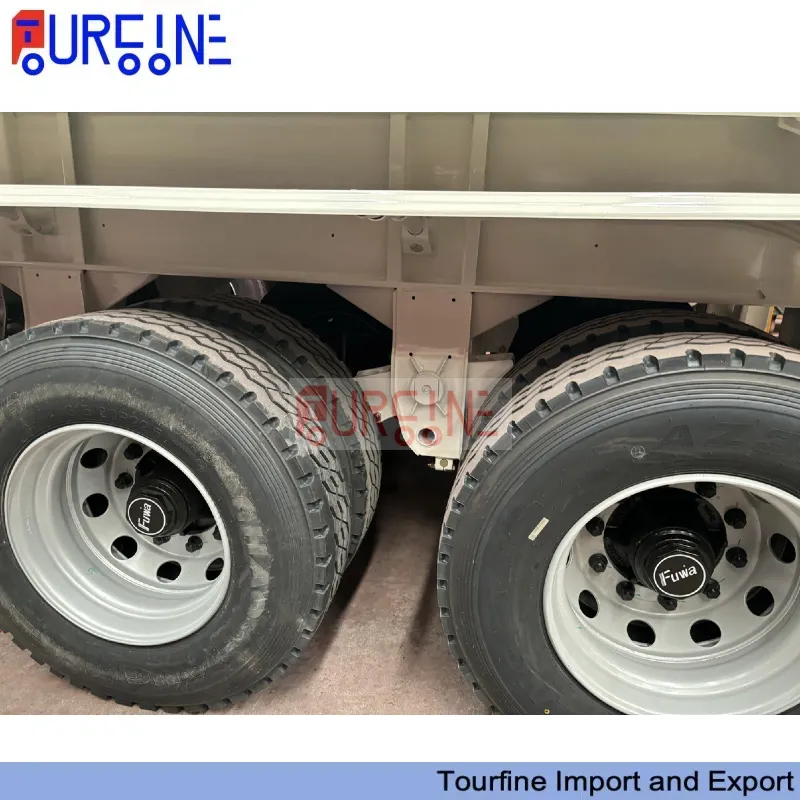

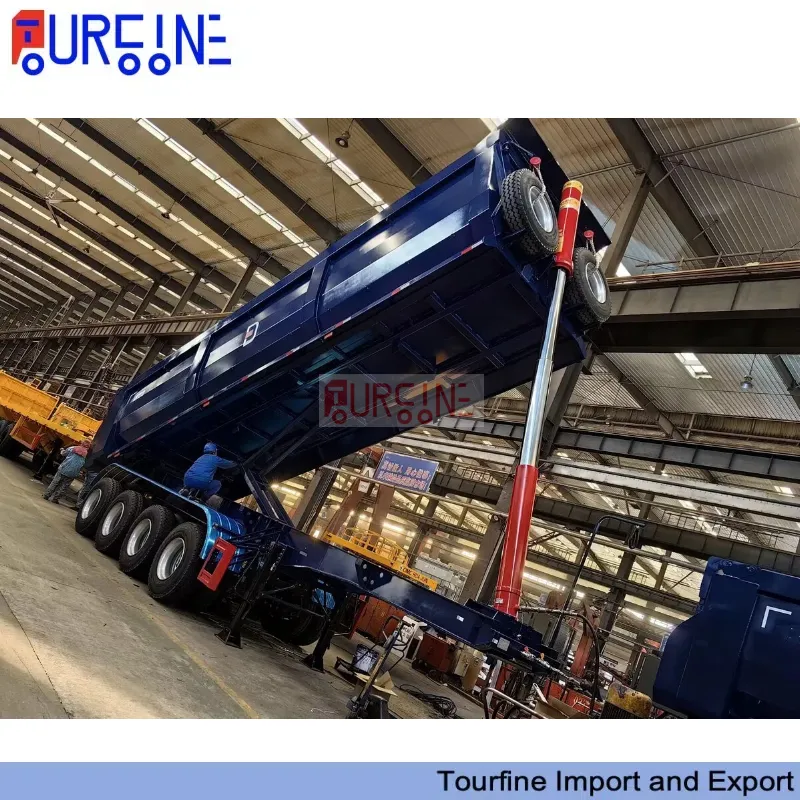

Detailed Photos

80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System

FAQ

Q1: What's your MOQ?

A: One unit

Q2: What are your payment terms?
A: We accept T/T or LC.

Q3: How about the after-sales service?
A: We offer comprehensive technical support and spare parts to ensure the long-lasting performance of our products. Spare parts are provided via DHL, TNT, UPS, or FedEx.

Q4: What is your shipping method?
A: We ship via Container, Flat rack container, Roro vessel, or Bulk vessel.

Q5: What is your delivery time?
A: Delivery takes approximately 7 to 60 days after receiving the deposit.

Q6: Can you meet my special requirements?
Absolutely! We can customize trailers and trucks to meet your specific needs.

Q7: Do you offer high-quality spare parts?
A: Yes, we do.

Successful Case


80 Ton 4 Axle Dump Semi Trailer with Hydraulic Front Tipping System

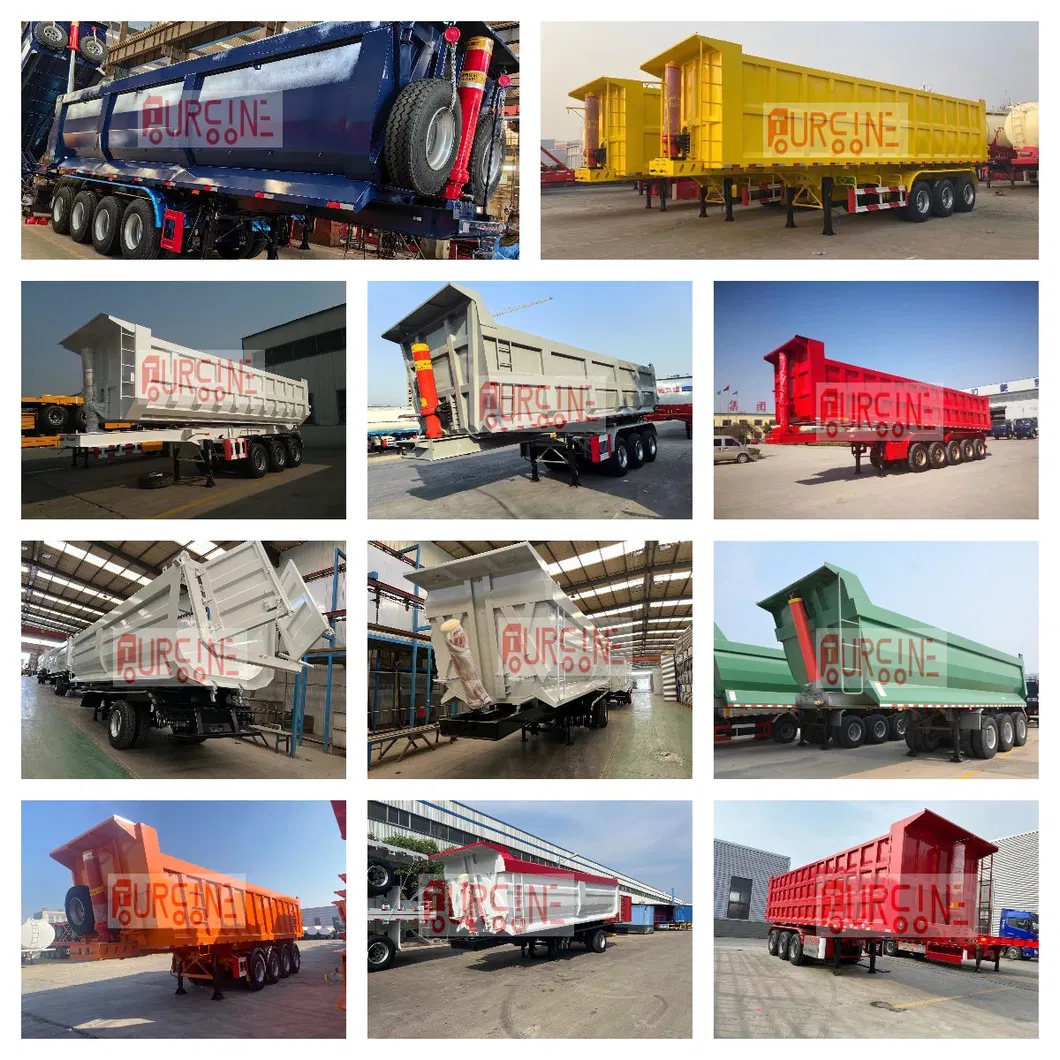

Other trailers
