Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Specifications
Packaging Details :
Nude Packing
Model Number :
10Wheel 10Ton
Maximum Lifting Weight :
8-10t
Supply Ability :
1000 Per Month
Type :
Folding and Straight Arm
Delivery Time :
30 work days
Engine :
Weichai
Certification :
ISO9001
Price :
Negotiable
Place of Origin :
China
Shaft Number :
3
Brand Name :
Beiben
Maximum Lifting Height :
30-40m
MOQ :
1
Payment Terms :
L/C,T/T
Crane Jib :
Three-Arm
Description

Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity

Product Description

The Beiben 6×4 Knuckle Boom Truck Mounted Crane is built for efficient cargo lifting, equipment transportation, and construction material handling. Equipped with a powerful 10 ton hydraulic knuckle boom crane, it offers flexible lifting angles and smooth operation in confined working environments. Mounted on a durable Beiben 6×4 cargo truck chassis, this truck mounted crane combines transportation and lifting functions to improve work efficiency while reducing operating costs. It is suitable for construction sites, mining projects, logistics companies, ports, and municipal engineering across Africa. With reliable hydraulic performance, easy maintenance, and optional crane configurations, the Beiben hydraulic crane truck provides a dependable solution for heavy-duty lifting and cargo transport.

Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
North Africa: Egypt, Libya, and Sudan.
East Africa: Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, and Burundi.
Central Africa: Chad, Gabon, Republic of the Congo (Congo-Brazzaville), Democratic Republic of the Congo (Congo-Kinshasa), and São Tomé and Príncipe.
West Africa: Mauritania, Senegal, The Gambia, Mali, Burkina Faso, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, and Guinea.
South Africa: Angola, Botswana, South Africa, Lesotho, Madagascar, Malawi, Comoros, Mauritius, Mozambique, and Zambia.
Product Parameters
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
BEIBEN 6x6 6X4 truck mounted 10Ton telescopic boom crane
Emission Standard EURO 3
Chassis model NG80B TYPE
Driving Type 6×6 6x4
Dimensions
Wheelbase(mm) 5050+1450
Overall Dimension(mm) 8960×2500×3328
Cargo box dimension(mm) 6000x2300x800
Weight parameters
GVW(kg) 25,000kgs
Curb weight(kg) 13,250kgs
Real load weight(kg) 11,010kgs
Chassis parameter
Front axle 7 Ton front axle load capacity, Double shoe disc air break
Rear/middle axle 18Ton/axle (2 axle combined)
Dual-circuit air braking system,driving axle,ductalloy axle cover
with wheel side reducer
Front axle span(mm) 1940
Rear axle span(mm) 1847/1847
Front/rear overhang(mm) 1410/2530
Approach angle(°) 34
Departure angle(°) 24
Max speed(km/h) 80
Suspension Leaf spring suspension
Engine performance
Engine model WP10.320(From WEICHAI engine)
Engine type Straight in-line,6 cylinders,4 strokes,water-cooling
Turbo charge with inter-cooling,diesel engine
No. of cylinders Straight-6 cylinders
Displacement(L) 9.726L
Max. Output (KW) 235kw (320hp)
Fuel type Diesel
Max. output (kw/Ps/rpm) 235kw(320ps)/2200 rpm
Max torque/Speed(N.m/rpm) 1250 N.m/1400-1600rpm
Tire specification 14.00R20,total 6 units off-road tire+1 spare tire
Drive Line
Clutch description ¢420,dry single plate, hydraulic control booster,mechanical
operation with hydraulic assistance
Transmission 8 forwarder,1 reverse gear, synchronous meshing,manual
Braking system Service brake:Brake gap can be adjusted automatically
double circulation air brake system
Assistant brake:WEVB(Engine exhaust brake)
Park brake:Spring brake effect to middle and rear tires
Suspension system
Front axle Semi-elliptic leaf springs shock absorbers
Rear axle Torsion bar semi-elliptic leaf springs
Electrical Equipment
Voltage 24V
Batteries 2X12V/135Ah
Starter 6.2Kw/24V
Cab description
NG80 short cab,cooling and heating air-conditioner,all steel bumper
With FM,AM radio player,with manual windows

The specifications of 10Ton telescopic boom crane specifications
Special function for 10Ton straight boom crane
This type of crane have many advantage than others.The main character of this crane is high speed,and strong grade ability,etc. The arm can lift rapidly ,operate easily,high efficient and energy conservation ability.It is an ideal product to use in dock, Steel and Iron Works,Lumber Mill,etc
This 10Ton crane is knuckle boom crane,model:SQ10SK3Q,with 4 section booms.It can rotation at 360 degree.It with 4 units telescopic all hydraulic support landing gear which guarantee the stability and reliability when at working status.
Crane model SQ10ZK3Q (4 booms) Unit
Max lifting capacity 10,000 kg
Max lifting moment 25 T.M
Recommend Power Needed At
Recommend Oil Flow		 28 KW
Rotation angle 360 Degree
Max Oil Flow of Hydraulic system 63 L/min
Max Pressure of Hydraulic system 26 Mpa
Installation Space 1150 mm
Crane Weight 3800 kg
Oil tanker capacity 160 Liter
Crane max Lifting height 14 m
Crane working radius 12 m
Working radius(m) 2.5m 4.5m 7.0m 9.0m 12.0m
Lifting weight (kg) 10,000kg 5,500kg 3,200kg 2,300kg 1,500kg

Crane model SQ10SK3Q Unit
Max Lifting Capacity 10000 kg
Max Lifting Moment 25 T.M
Recommend Power 28 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 3800 kg
Installation Space 1150 mm
SQ10SK3Q:
Working raduis(m) 2.5 4.5 7 9 12
Lifting weight(kg) 10000 5500 3200 2300 1500

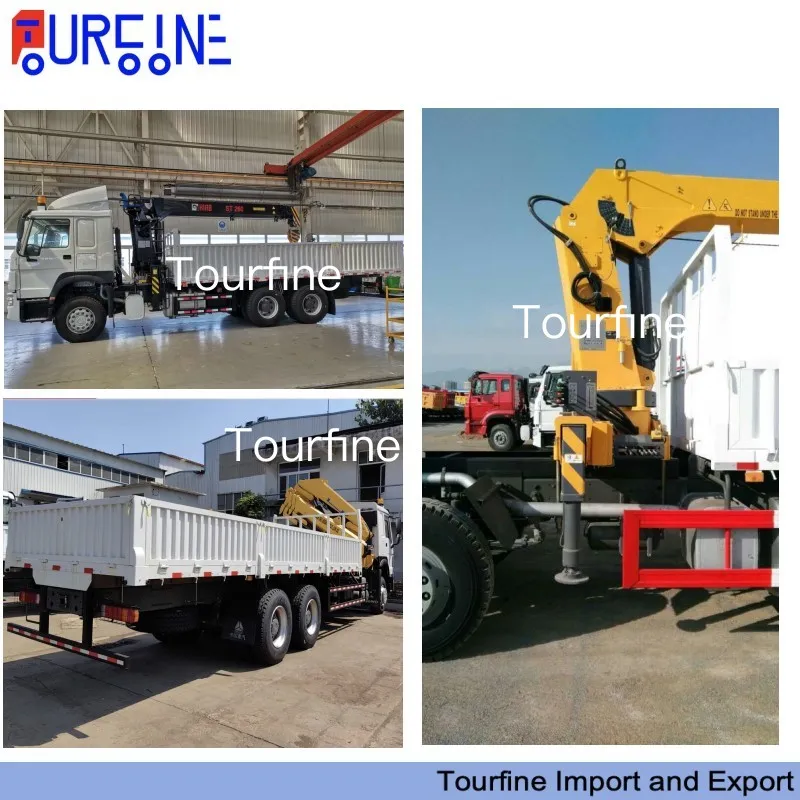

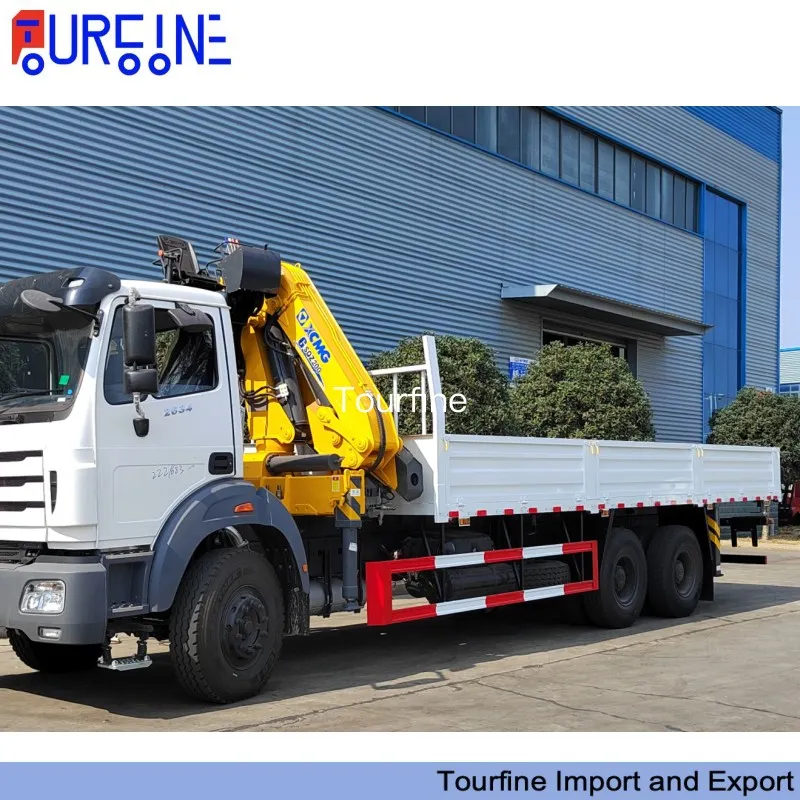

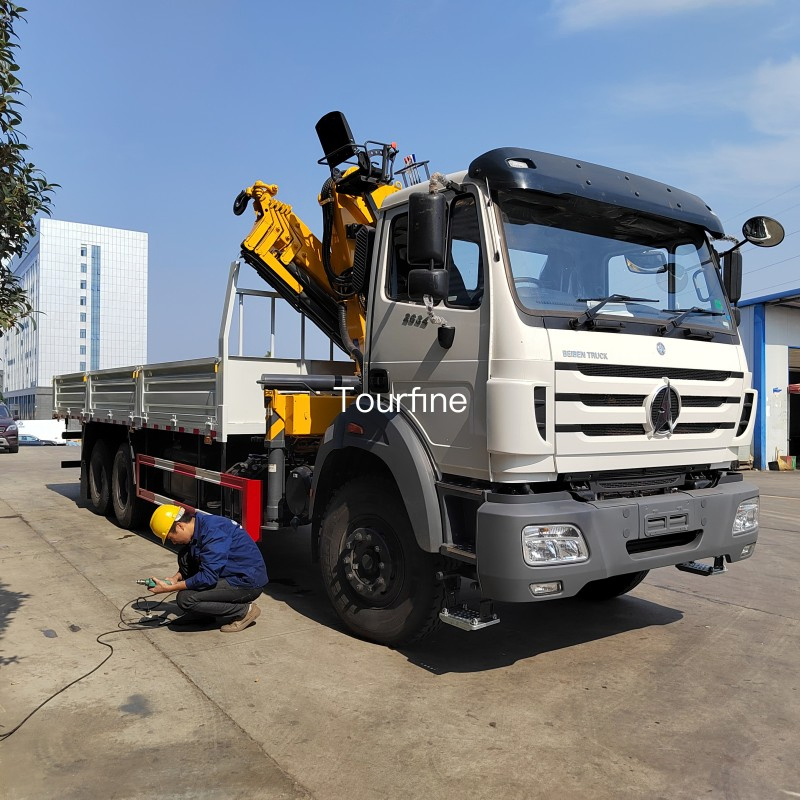

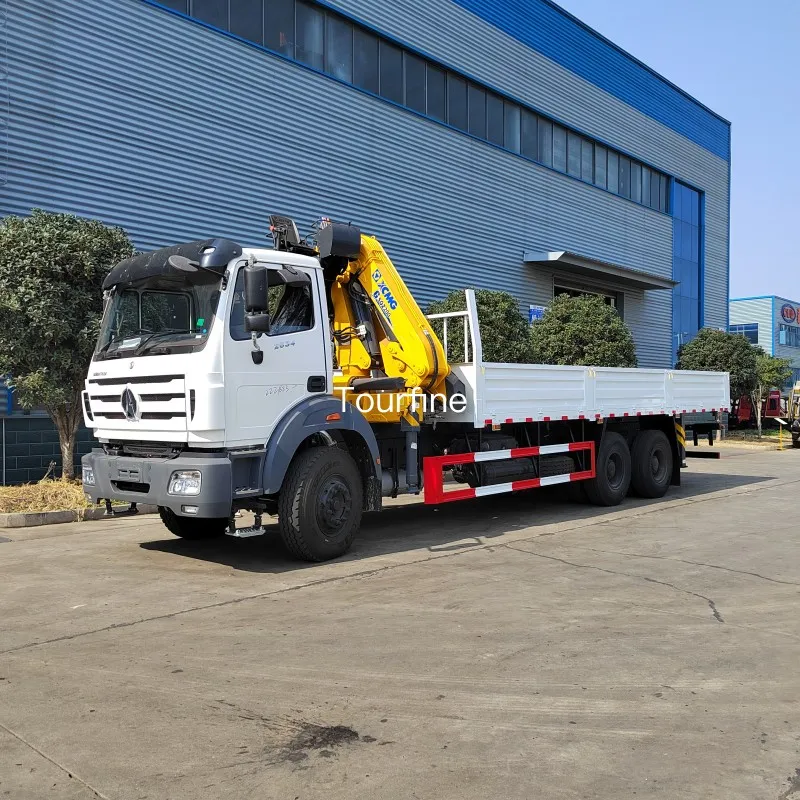

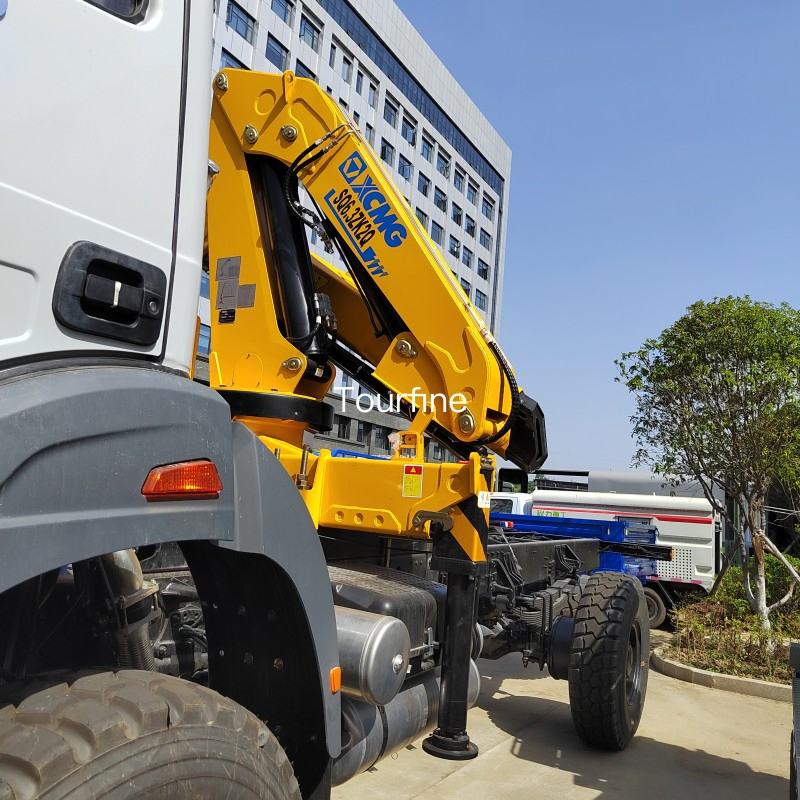

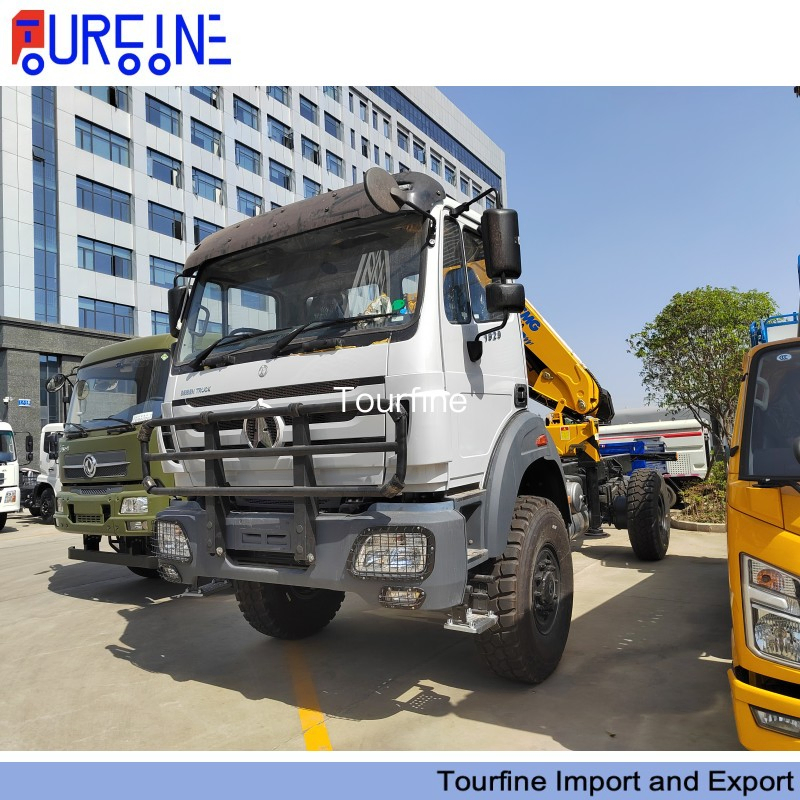

Detailed Photos

Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting CapacityKnuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting CapacityKnuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting CapacityKnuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity

Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity

Packaging & Shipping
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity

Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity

FAQ
Knuckle Boom Beiben 6×4 Truck Mounted Crane with 10 Ton Hydraulic Lifting Capacity
  1. Q: What is the minimum order quantity (MOQ)?
    A: Our MOQ is one unit.
  2. Q: What are your payment terms?
    A: We accept payment through T/T or LC.
  3. Q: What after-sales services do you provide?
    A: We offer technical support and provide spare parts to ensure the long lifespan of our products. Spare parts can be delivered via DHL, ***, UPS, or FedEx.
  4. Q: What shipping methods do you use?
    A: We use container, flat rack container, Roro vessel, and bulk vessel for shipping.
  5. Q: How long does delivery take?
    A: Delivery time ranges from 7 to 60 days after receiving the deposit.
  6. Q: Can you accommodate special requirements?
    A: Absolutely! We can manufacture trailers and trucks according to your specific requirements.
  7. Q: Do you offer high-quality spare parts?
    A: Yes, we provide good quality spare parts.

For more information, please contact Beijing Tourfine Import and Export Co. Ltd.
