Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Specifications
Packaging Details :
Nude Packing
Model Number :
10 Wheel 10Ton
Maximum Lifting Weight :
8-10t
Supply Ability :
3000 Per Month
Type :
Folding and Straight Arm
MOQ :
1
Delivery Time :
30 work days
Engine :
Weichai
Certification :
ISO9001
Place of Origin :
China
Shaft Number :
3
Brand Name :
HOWO
Maximum Lifting Height :
30-40m
Price :
Negotiable
Payment Terms :
L/C,T/T
Crane Jib :
Three-Arm
Description

Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom

Product Description
The Sinotruk HOWO 10 Wheel Truck Mounted Crane is engineered for heavy-duty cargo lifting, equipment handling, and construction material transportation. Equipped with a powerful 10 ton telescopic boom crane, it delivers excellent lifting capacity, smooth hydraulic operation, and reliable performance in demanding working environments. Built on a durable HOWO 10 wheel chassis, this truck mounted crane combines transportation and lifting functions to improve efficiency while reducing operating costs. It is widely used in construction projects, logistics, mining operations, ports, and municipal engineering across Africa. With stable performance, easy maintenance, and optional boom configurations, the HOWO telescopic boom crane truck is an ideal solution for contractors and fleet operators requiring dependable lifting equipment.
Product Parameters
Cabin: HW76, two doors, tippable, one sleeper, with A/C
Traction Type: 6*4
Driving Type: LHD
Steering model: hydraulic steering with power assistance
Overhang (Front/rear) (mm): 1500/1560
Engine: Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line,water cooling,turbo-charging & inter cooling
Engine model: WP10.340E222
Displacement: 9.726L
Fuel type: diesel
Min.fuel consumption: 198(g/kw.h)
Emission Standard : Euro3
Max. Output: 340hp
Torque: 1900NM
Gear box: HW19710(10speeds)
Axle: Rear axle: HC16, 16T*2 loading capacity, double reduction driving axle
Front axle: HF9, 9T loading capacity. Disc brake
Body:
Wheel base: 5225+1350,5200+1400
Tyres: 12.00R20
Cargo box 8500*2300*600mm
Dimension: 11840*2496*4200mm
Crane model SQ10SK3Q Unit
Max Lifting Capacity 10000 kg
Max Lifting Moment 25 T.M
Recommend Power 28 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 3800 kg
Installation Space 1150 mm
Detailed Photos

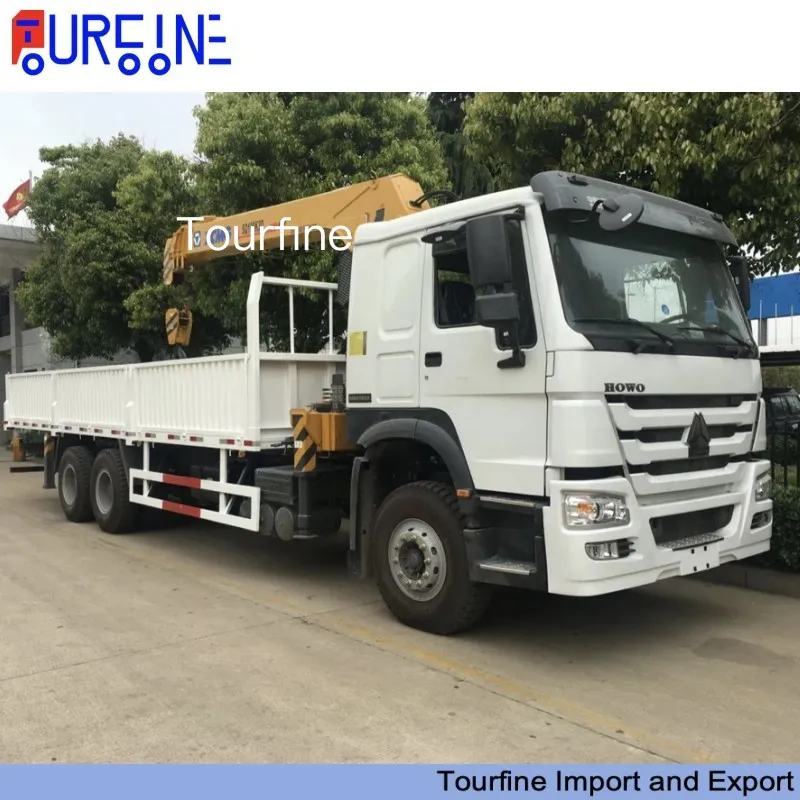

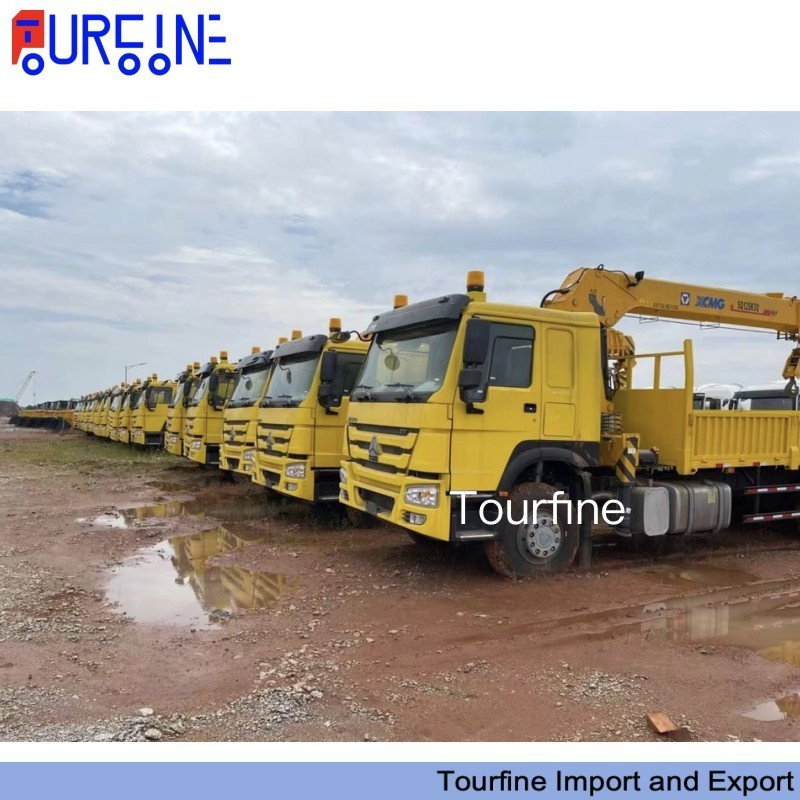

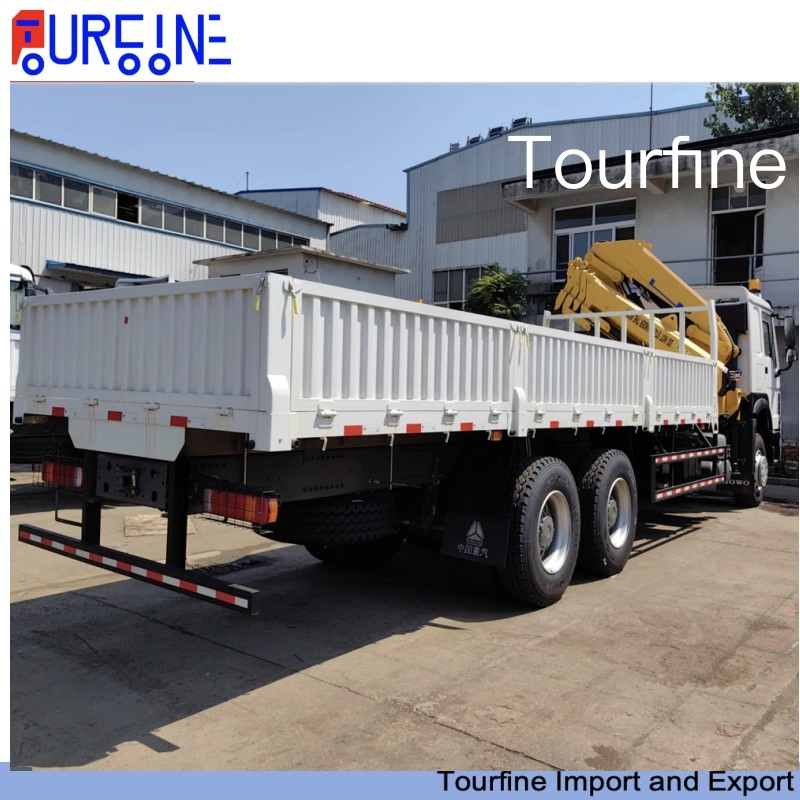

Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic BoomSinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
Packaging & Shipping

Sinotruk HOWO 10 Wheel Truck Mounted Crane with 10 Ton Telescopic Boom
FAQ
  1. Q: What is the minimum order quantity (MOQ)?
    A: Our MOQ is one unit, ensuring flexibility for our clients.
  2. Q: What are your payment terms?
    A: We accept payment through T/T or LC, providing convenient options for our customers.
  3. Q: What after-sales services do you provide?
    A: We offer comprehensive technical support and supply spare parts to ensure the longevity of our products. Spare parts can be delivered via DHL, ***, UPS, or FedEx.
  4. Q: What shipping methods do you use?
    A: We utilize container, flat rack container, Roro vessel, and bulk vessel shipping methods to meet diverse logistical needs.
  5. Q: How long does delivery take?
    A: Delivery time ranges from 7 to 60 days after receiving the deposit, depending on order specifications.
  6. Q: Can you accommodate special requirements?
    A: Absolutely! We can manufacture trailers and trucks tailored to your specific requirements.
  7. Q: Do you offer high-quality spare parts?
    A: Yes, we provide high-quality spare parts to ensure optimal performance.
For more information, please contact:
Beijing Tourfine Import and Export Co. Ltd
.
