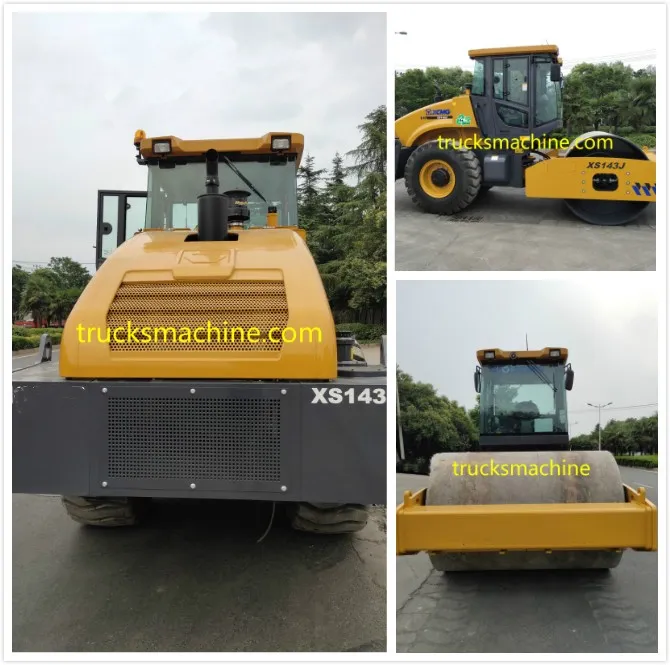

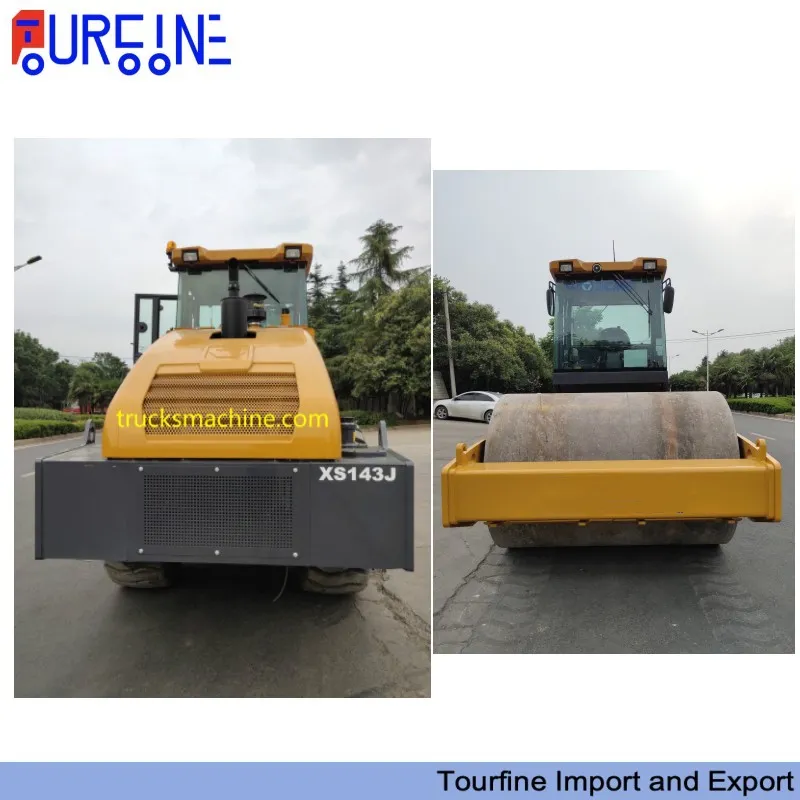

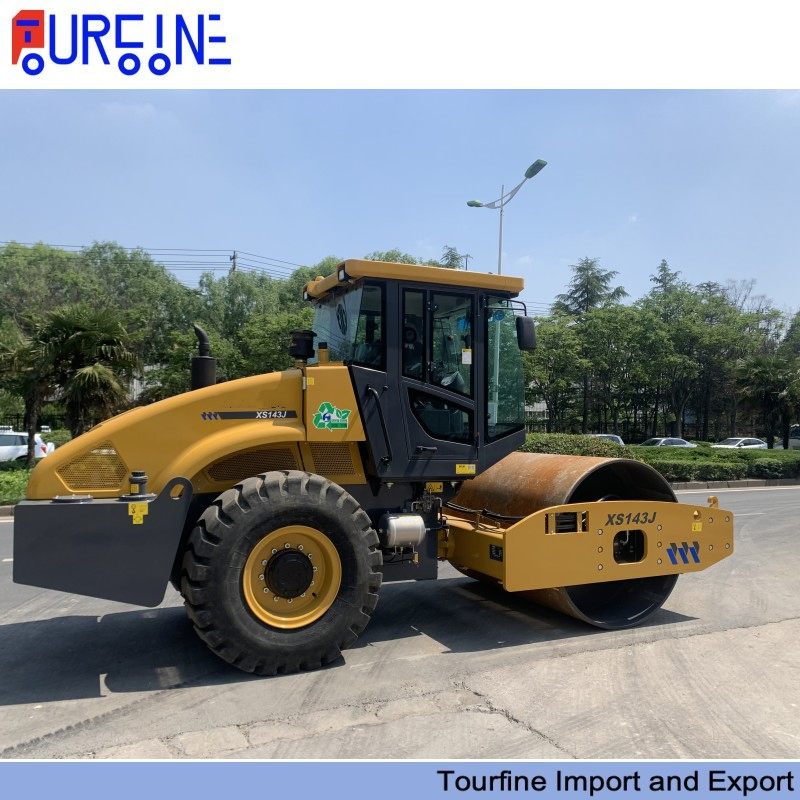

XS143J 14 Ton Single Drum Vibratory Road Roller for Road Construction
The XCMG XS143J 14 Ton Single Drum Vibratory Road Roller is designed for efficient soil and asphalt compaction in highway, municipal, airport, and infrastructure construction projects. Equipped with a powerful engine and an advanced vibratory compaction system, this single drum vibratory road roller provides excellent compaction performance, stable operation, and high working efficiency. The durable hydraulic system and ergonomic operator cabin improve productivity while reducing maintenance requirements. The XS143J road roller is suitable for compacting gravel, sand, crushed stone, and asphalt surfaces. As reliable road construction equipment, it delivers consistent performance, low operating costs, and long service life, making it an ideal choice for professional contractors and construction companies.
| ltem | Unit | XS143J | ||
| Service mass | kg | 14000 | ||
| Distributed mass of driving wheel | kg | 7300 | ||
| Distributed mass of vibration wheel | kg | 6700 | ||
| Static line load | N/cm | 315 | ||
| Vibration frequency | Hz | 28/33 | ||
| Theoretical amplitude | mm | 1.9/0.95 | ||
| Exciting force | kN | 274/190 | ||
| Range of speed | Forward | I | km/h | 2.85 |
| II | km/h | 5.08 | ||
| III | km/h | 11.17 | ||
| Backward | I | km/h | 2.88 | |
| II | km/h | 5.02 | ||
| Wheel base | mm | 3040 | ||
| Compaction width | mm | 2130 | ||
| Theoretical gradeability | % | 30 | ||
| Minimum turn radius | mm | 6800 | ||
| Diameter of vibration wheel | mm | 1523 | ||
| Minimum ground clearance | mm | 431 | ||
| Engine | Model | SC4H140.1G2 | ||
| Rated speed | r/min | 1800 | ||
| Rated power | kW | 103 | ||
| Overall dimension (length x width x height) | mm | 6150*2300*3200 | ||


For more information, please contact Beijing Tourfine Import and Export Co. Ltd.
