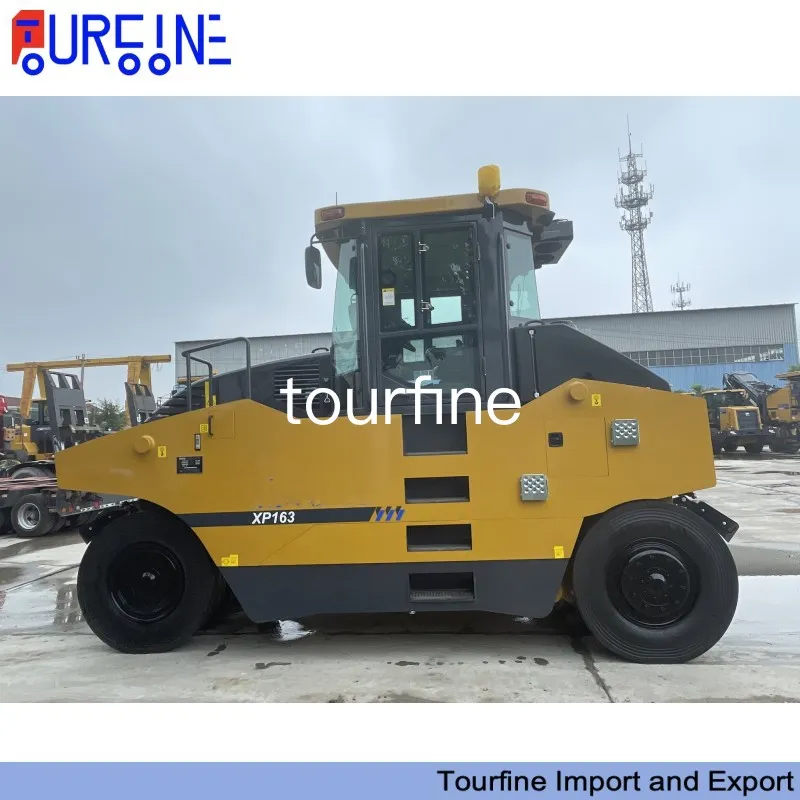

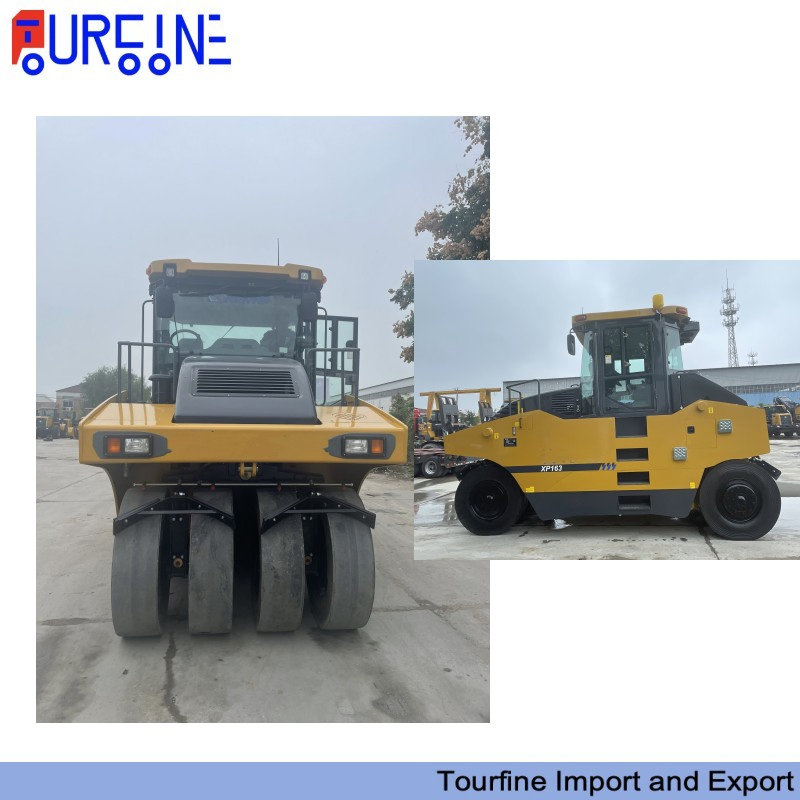

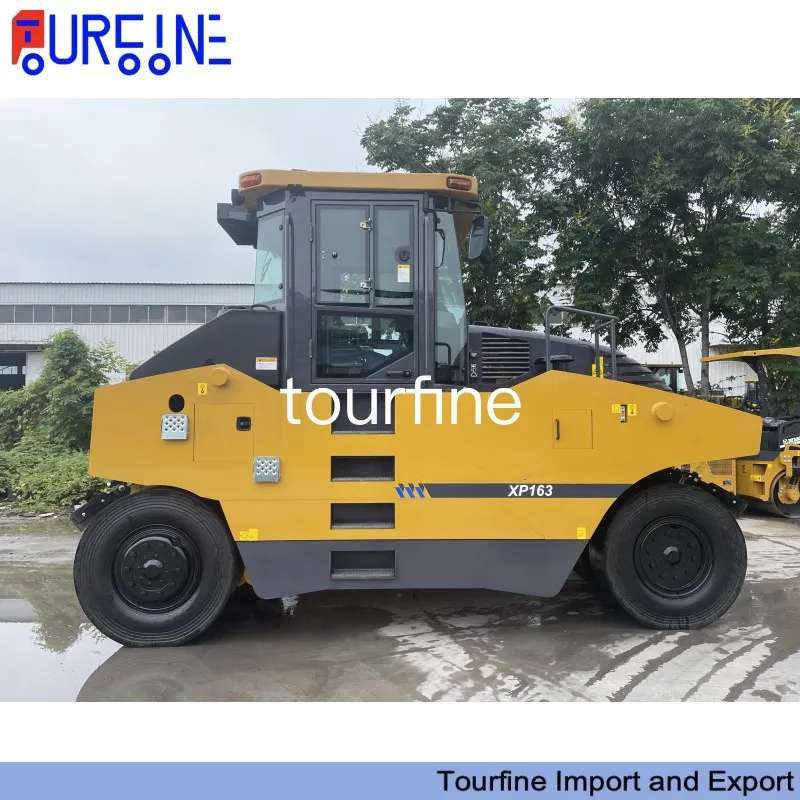

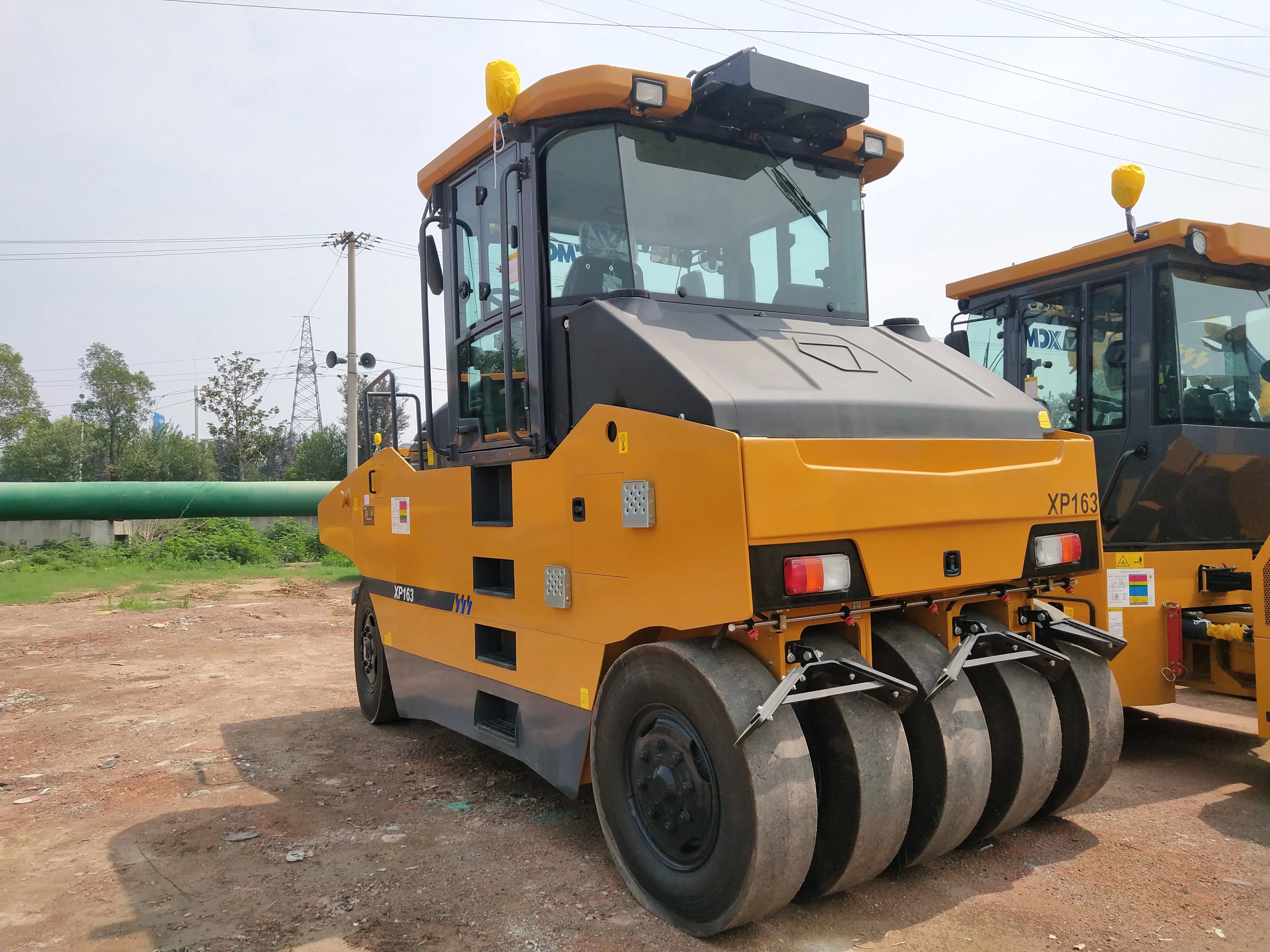

XP163 16 Ton Pneumatic Tire Road Roller with Yuchai Engine
The 16 Ton Pneumatic Tire Road Roller is designed for efficient compaction of asphalt pavements, base layers, and subgrade materials in highway, municipal, and infrastructure projects. Powered by a reliable Yuchai engine, this pneumatic tire road roller delivers strong performance, excellent fuel efficiency, and stable operation under demanding working conditions. The multiple rubber tires provide uniform pressure distribution, ensuring superior surface finishing and high compaction quality. Built with a durable hydraulic system and an ergonomic operator cabin, this road roller offers easy operation, low maintenance, and long service life. It is an ideal road construction equipment solution for contractors seeking reliable performance, productivity, and consistent compaction results.
| Min. working weight | kg | 11100 |
| Max. working weight | kg | 16000 |
| Ground pressure | kPa | 200-400 |
| Travel speed | km/h | |
| Speed I | 4.2 | |
| Speed II | 8.2 | |
| Speed III | 17.4 | |
| Reverse speed I | 4.17 | |
| Reverse speed II | 8.2 | |
| Theoretical gradeability | % | 20 |
| Min. external turning radius | mm | 7230 |
| Min. ground clearance | mm | 250 |
| Compaction width | mm | 2055 |
| Roller overlap amount | mm | 30 |
| Tyre specification | 9.00-20-12PR | |
| Amount | Front 4 Rear 5 | |
| Engine model | YC4A125Z | |
| Type | Water cooling, pressurizing | |
| Rated power | kw @2200 r/min | 92 |
| Engine oil consumption | g.kw/h | <230 |
| Hydraulic oil tank capacity | L | 60 |
| Diesel oil tank capacity | L | 130 |
| Overall length | mm | 4715 |
| Overall width | mm | 2055 |
| Overall height | mm | 3258 |
