Specifications
Packaging Details :
Nude Packing
Condition :
New
Material of Tank :
Carbon Steel/Stainless Steel
Color :
Depends on Customer's Requirement
Certification :
ISO9001, CCC
Model Number :
TFF0345
Supply Ability :
3000 Per Month
Shape :
Circle
Delivery Time :
30 work days
Axle :
BPW/Fuwa/Aq/Zy
MOQ :
1
Place of Origin :
China
Types of Suspension Systems :
Leaf Spring Suspension
Material :
Steel
Brand Name :
Tourfine
Price :
Negotiable
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Payment Terms :
L/C,T/T
Description

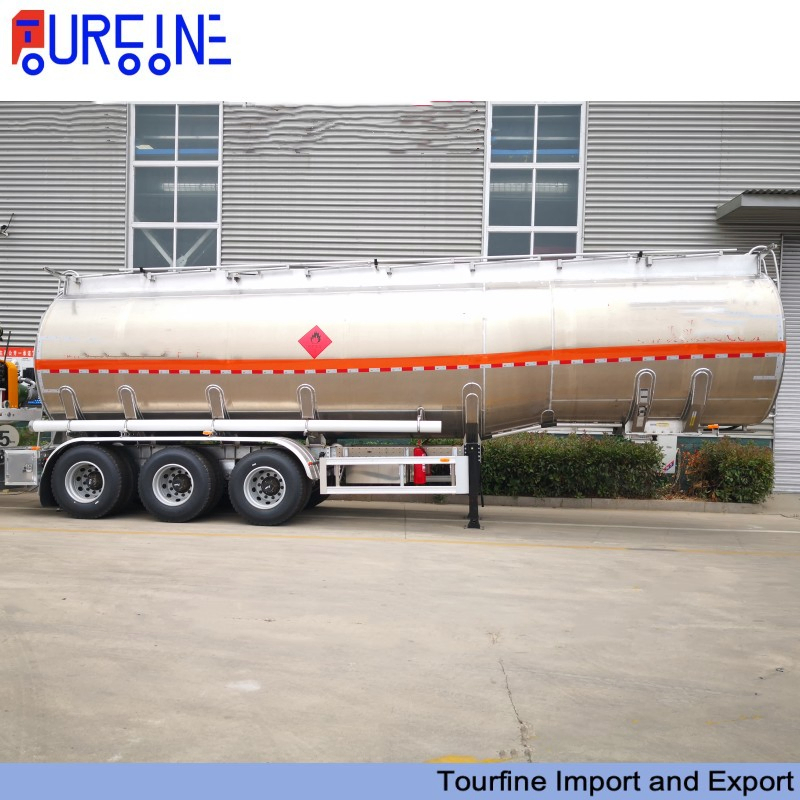

45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics

The 3 Axle 45 CBM Fuel Tank Semi Trailer is designed for the safe and efficient transportation of diesel, petrol, kerosene, and other liquid fuels. With a 45 CBM tank capacity, it is widely used by fuel distribution companies, petroleum suppliers, and commercial logistics operators for regional and long-distance fuel transportation.


Manufactured with a reinforced chassis and available in carbon steel or stainless steel tank configurations, the trailer delivers excellent strength, durability, and corrosion resistance to meet different operating requirements. The optimized tank structure enhances liquid stability during transit, while optional multi-compartment designs allow multiple fuel products to be transported simultaneously. Equipped with reliable axles, a heavy-duty suspension system, and an efficient braking system, the trailer provides stable handling and dependable performance under demanding road conditions. Optional bottom loading, fuel dispensing, vapor recovery, and overfill protection systems are available, making this fuel tanker trailer a reliable and cost-effective solution for modern fuel logistics operations.

Product Description


volume 45000L
payload 45ton
tare weight 10000kg
axle 3x13ton/14ton/16ton/20ton brand can be opentional
suspension mechanical suspension/air suspension/american type/germany type can be opentional
tire 11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional
wheel rim 8.25/9.0/8.0/8.5
kingpin 2"/3.5"
I beam can be use aluminium alloy or carbon steel.tank can be boult type
landing gear jost ac300 /fuwa two speed 28ton
tank body 6mm thickness aluminium alloy 5183 .can be add thermal insulation layer as requirment
end plate 7mm thickness
manhole cover 3/4/5/6 vapor recovery system can be opentional .civacon brand select
compartment 2/3/4/5/6/7 the compartment can be work by itself .its independent
pump can be opentional
electricity wiring 6 core wiring;24v or 12v ;LED lamp;
brake system wabco relay valve;drum brake;t30/30 brake chamber
paiting complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime;
2 coats of final paiting
tank type V different volume can be use the "W"
accessories brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp
Shape Oblong, circle oval
Dimension 11000mmx2500mm x3900mm
(the exact size depends on the final design.)
Total volume(m³) 35000-50000 Liters
Tank Body Material 5mm carbon steel
Bottom Valve Optional
Discharging Valve Diameter is 3 or 4 inch
Compartments Optional
Discharging Pipe 2pcs,6m/each
Chassis
Axle 3 units
Landing Gear JOST brand
Suspension Mechanical suspension,air suspension
Tire 12 units
ABS Optional
Accessories One standard tool box
Shipping Terms By bulk cargo , RORO

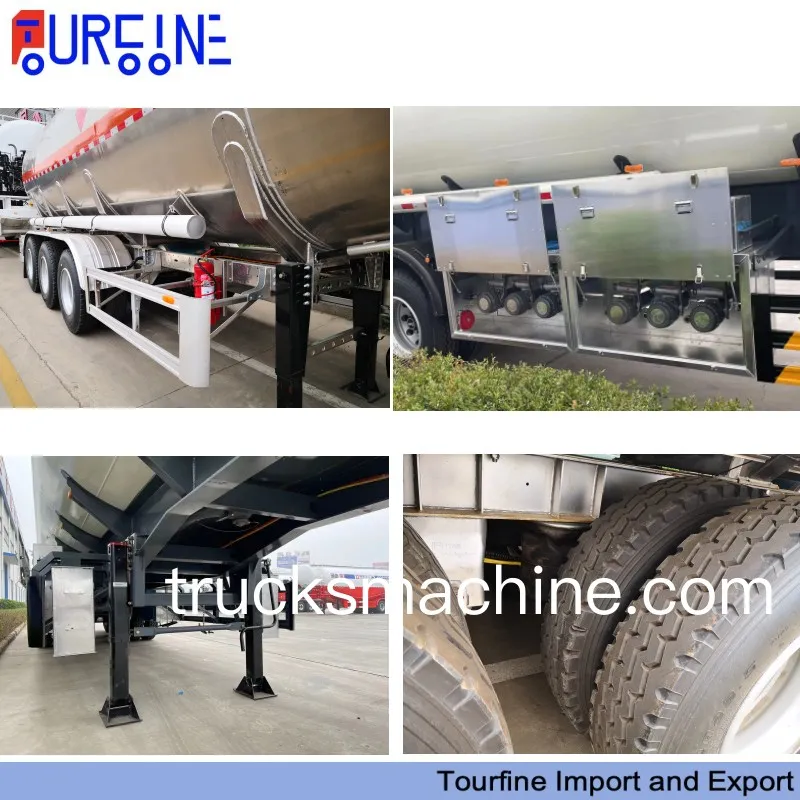

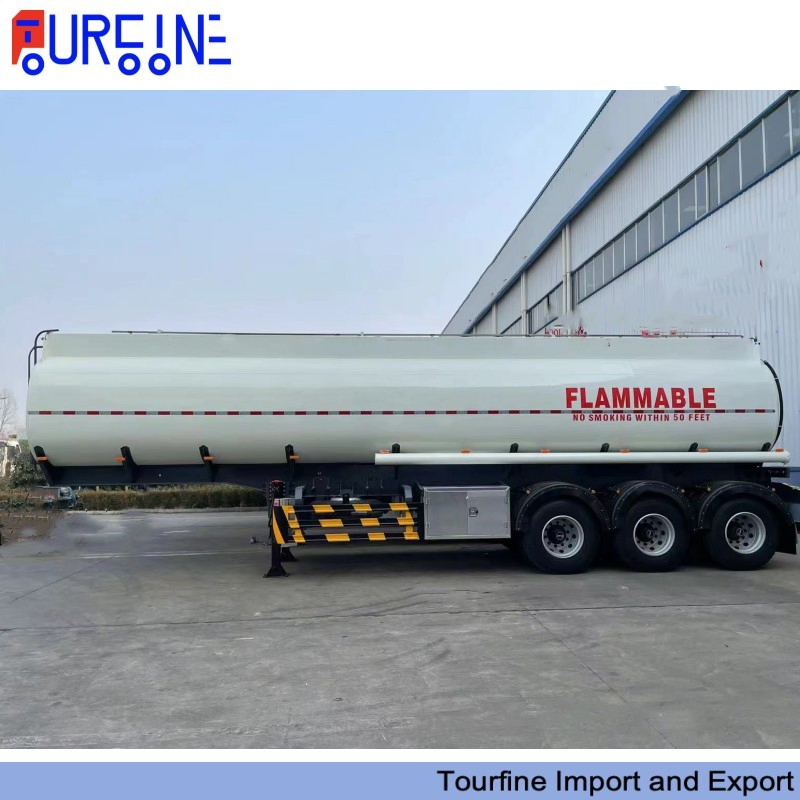

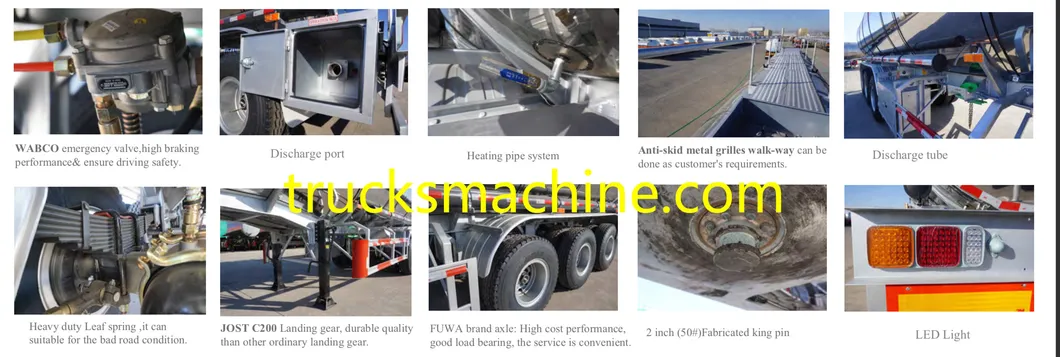

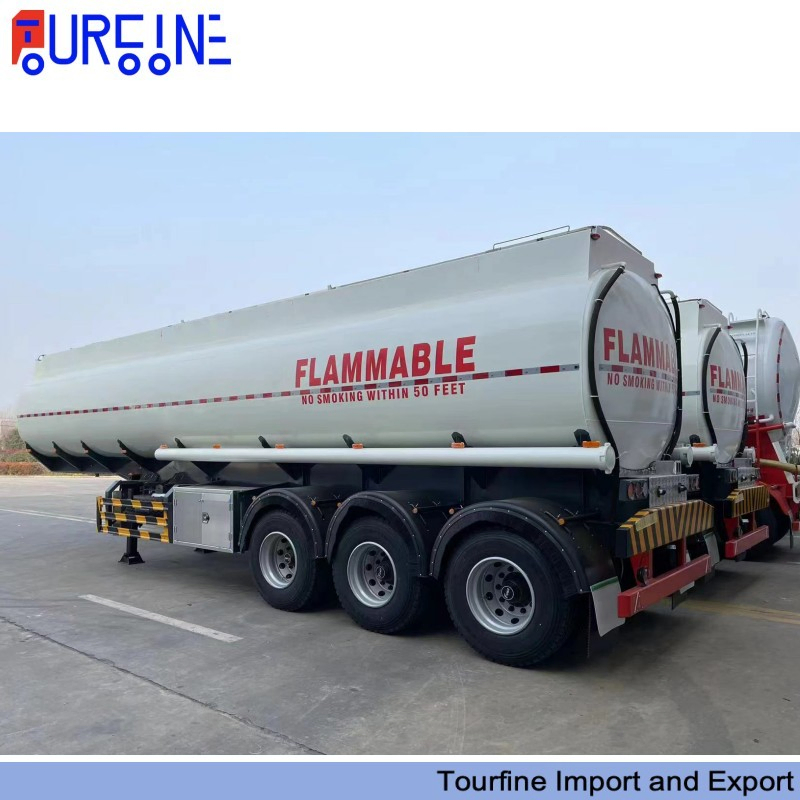

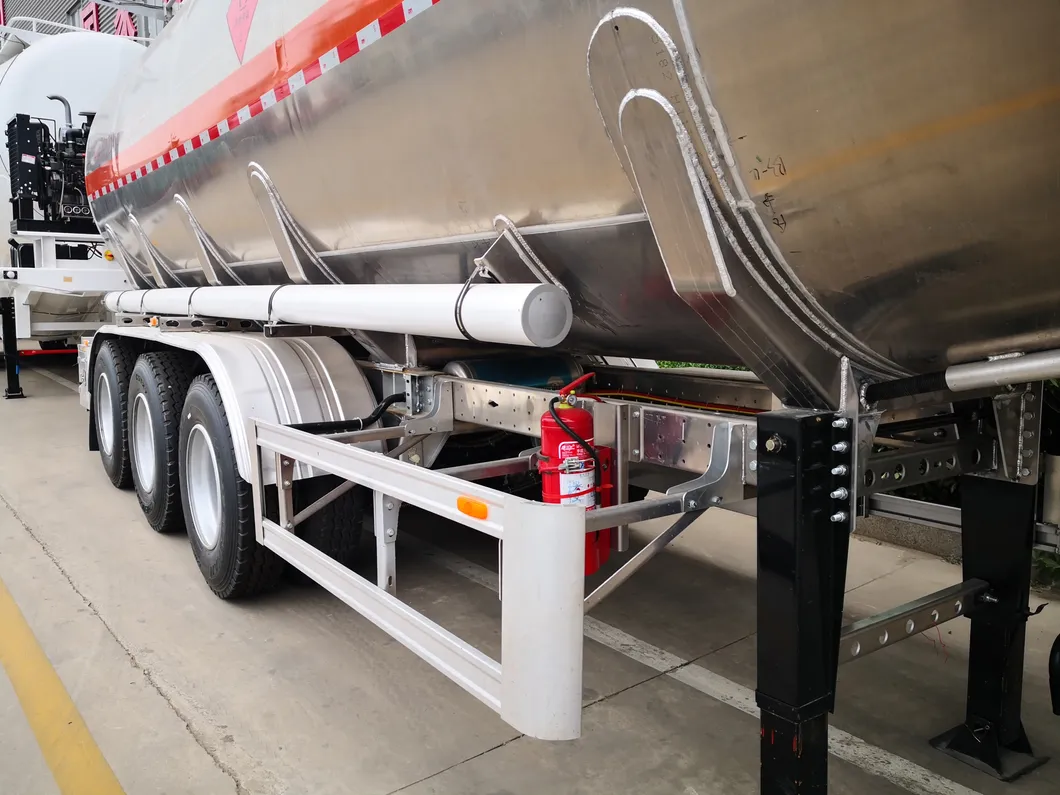

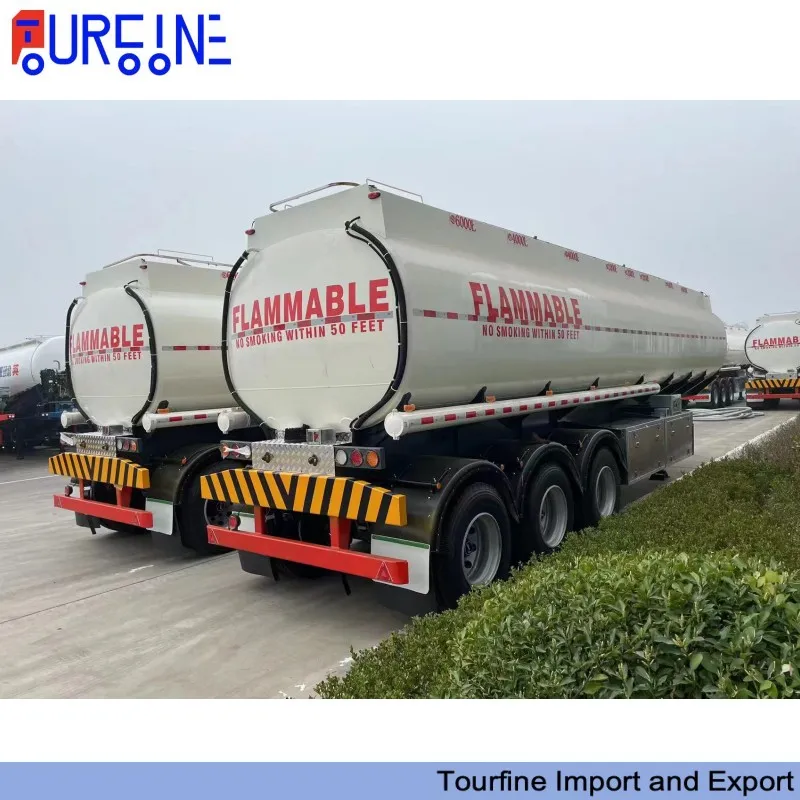

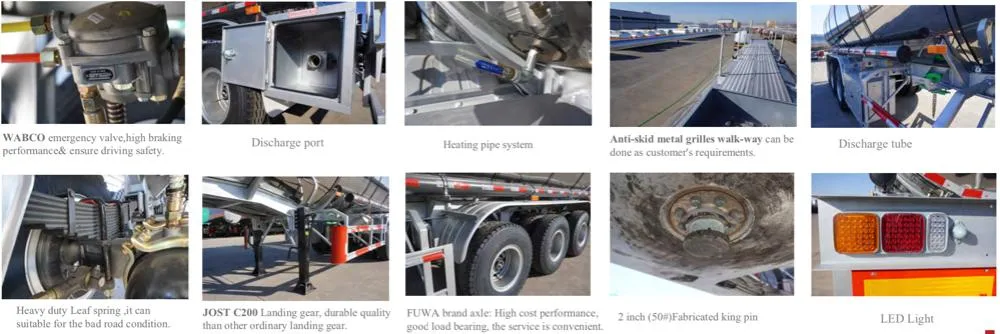

Detailed Photos

45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics

45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics

FAQ

Q1: What's your MOQ?
A: One unit.

Q2: What's your payment terms?
A: T/T or LC

Q3: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.Provide spare parts for the parts BY DHL,TNT,UPS OR FEDEX.

Q4: What is your shipping method?
A: Container, Flat rack container, Roro vessel, Bulk vessel

Q5: What is your delivery time?
A: It takes around 7 days to 60 days after receive the deposit

Q6.Can you satisfy my special requirement?
Sure! We can manufacture the trailers and trucks according to your requirement.

Q7: Do you offer good quality spare parts?
A:Yes.

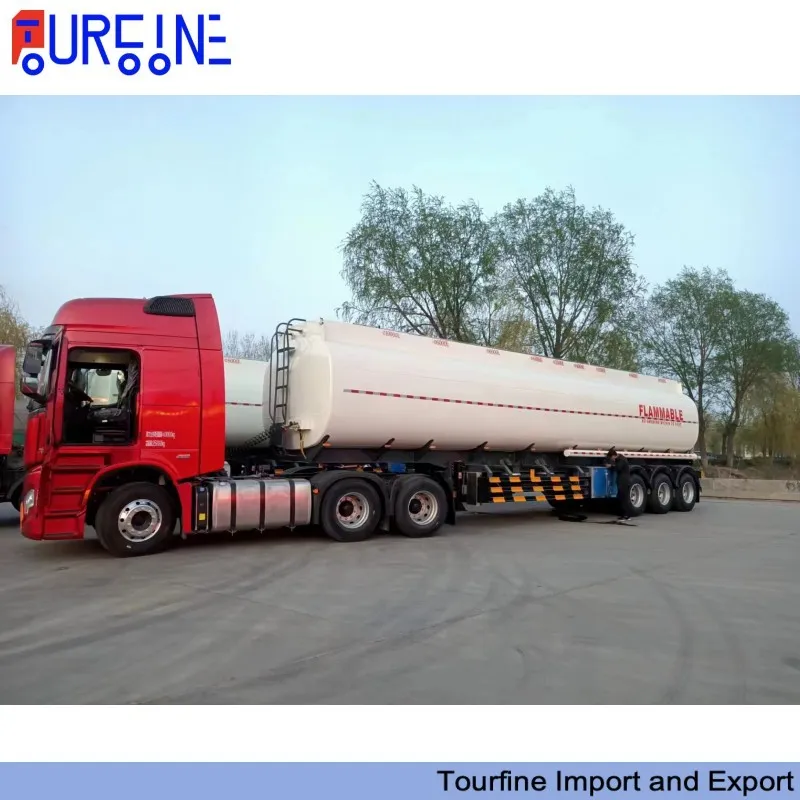

Successful Case

45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics

Packaging & Shipping
45 CBM 3 Axle Fuel Tank Semi Trailer for Commercial Fuel Logistics
