Specifications
Packaging Details :
Nude Packing
Model Number :
TFF0340
Shape :
Circle
Supply Ability :
3000 Per Month
Condition :
New
Delivery Time :
30 work days
Specification :
40000 L
Place of Origin :
China
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Certification :
ISO9001, CCC
Payment Terms :
L/C,T/T
Material :
Steel
Price :
Negotiable
MOQ :
1
Brand Name :
Tourfine
Types of Suspension Systems :
Leaf Spring Suspension
Description
3 Axle 40 CBM Fuel Tanker Semi Trailer for Diesel and Petrol Transport
Product Description

The 3 Axle 40 CBM Fuel Tanker Semi Trailer is designed for the safe and efficient transportation of diesel, petrol, fuel oil, and other liquid fuels. With a 40 CBM (40,000-liter) capacity, it is an ideal solution for fuel distribution companies, oil terminals, and long-distance fuel logistics operations.


Built with a reinforced carbon steel tank and a high-strength chassis, the trailer offers outstanding durability, reliable load capacity, and long service life. The optimized tank structure helps improve liquid stability during transportation, while optional multi-compartment configurations allow different fuel products to be transported simultaneously. Equipped with premium axles, a dependable braking system, and a heavy-duty suspension, the trailer ensures safe handling and stable performance on highways and regional roads. Optional bottom loading, vapor recovery, fuel dispensing, and overfill protection systems are available to meet different operational and regulatory requirements. This fuel tanker semi trailer delivers a reliable, efficient, and cost-effective solution for modern fuel transportation.

Product Parameters
volume 40M3
payload 45ton
tare weight 10000kg
axle 3x13ton/14ton/16ton/20ton brand can be opentional
suspension mechanical suspension/air suspension/american type/germany type can be opentional
tire 11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional
wheel rim 8.25/9.0/8.0/8.5
kingpin 2"/3.5"
I beam can be use aluminium alloy or carbon steel.tank can be boult type
landing gear jost ac300 /fuwa two speed 28ton
tank body 6mm thickness aluminium alloy 5183 .can be add thermal insulation layer as requirment
end plate 7mm thickness
manhole cover 3/4/5/6 vapor recovery system can be opentional .civacon brand select
compartment 2/3/4/5/6/7 the compartment can be work by itself .its independent
pump can be opentional
electricity wiring 6 core wiring;24v or 12v ;LED lamp;
brake system wabco relay valve;drum brake;t30/30 brake chamber
paiting complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime;
2 coats of final paiting
tank type V different volume can be use the "W"
accessories brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp
Shape Oblong, circle oval
Dimension 11000mmx2500mm x3900mm
(the exact size depends on the final design.)
Total volume(m³) 35000-50000 Liters
Tank Body Material 5mm carbon steel
Bottom Valve Optional
Discharging Valve Diameter is 3 or 4 inch
Compartments Optional
Discharging Pipe 2pcs,6m/each
Chassis
Axle 3 units
Landing Gear JOST brand
Suspension Mechanical suspension,air suspension
Tire 12 units
ABS Optional
Accessories One standard tool box
Shipping Terms By bulk cargo , RORO

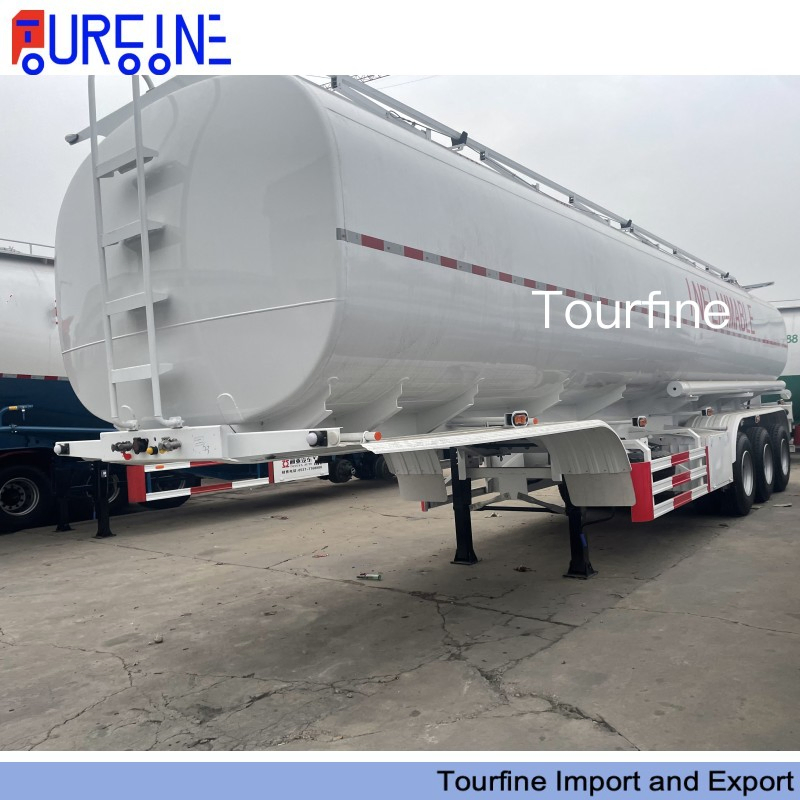

Detailed Photos

Tri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol TransportTri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol TransportTri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol Transport

Tri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol TransportTri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol TransportTri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol Transport

FAQ

Q1: What's your MOQ?
A: One unit.

Q2: What's your payment terms?
A: T/T or LC

Q3: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.Provide spare parts for the parts BY DHL,TNT,UPS OR FEDEX.

Q4: What is your shipping method?
A: Container, Flat rack container, Roro vessel, Bulk vessel

Q5: What is your delivery time?
A: It takes around 7 days to 60 days after receive the deposit

Q6.Can you satisfy my special requirement?
Sure! We can manufacture the trailers and trucks according to your requirement.

Q7: Do you offer good quality spare parts?
A:Yes.

Successful Case

Tri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol Transport

Packaging & Shipping
Tri Axle 40 CBM Fuel Tanker Semi Trailer For Diesel And Petrol Transport
