0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface
Specifications
MOQ :
1000
Delivery Time :
6weeks~8weeks
View angle :
All O’clock
Payment Terms :
T/T
name :
0.97" E-PAPER
Display Color :
white background and black character
Price :
US$2.6
size :
0.97"
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
Supply Ability :
100K per month
Display Technology :
E-ink Epaper Display
resolution :
88x184
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Model Number :
HX00973BW
interface :
4wire SPI
Brand Name :
HuaXin
Description

HX0097-3BW is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white and black full display capabilities. The 0.97inch active area contains 88×184 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.


A:Product Parameters

Part NO. HX00973BW
Display Type E-paper module
Diagonal Screen Size 0.97 inch E-paper
Background color white background and black character
Active Area (mm) 10.65×22.26
Panel size(mm) 14.15(H)×30 ×1.0
Resolution 88x184
Interface 4wire SPI
View angle ALL
Driving IC SSD1680

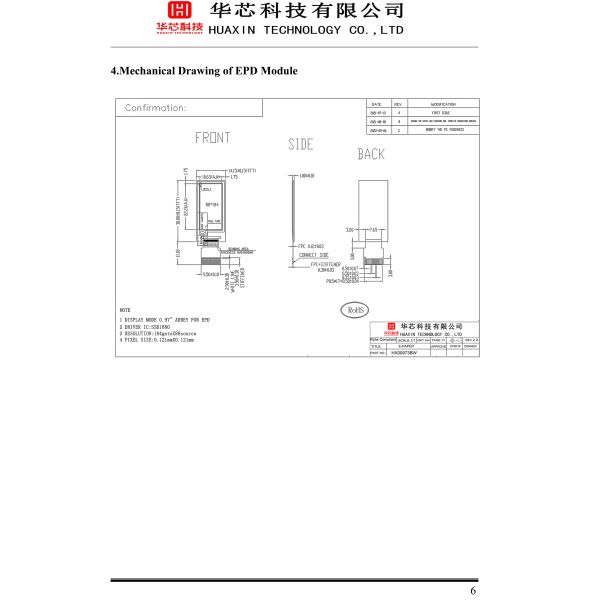

B:Technical Drawing

0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface

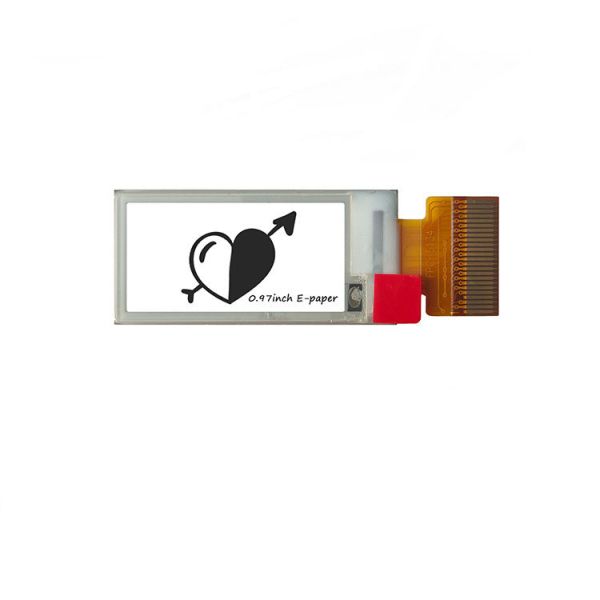

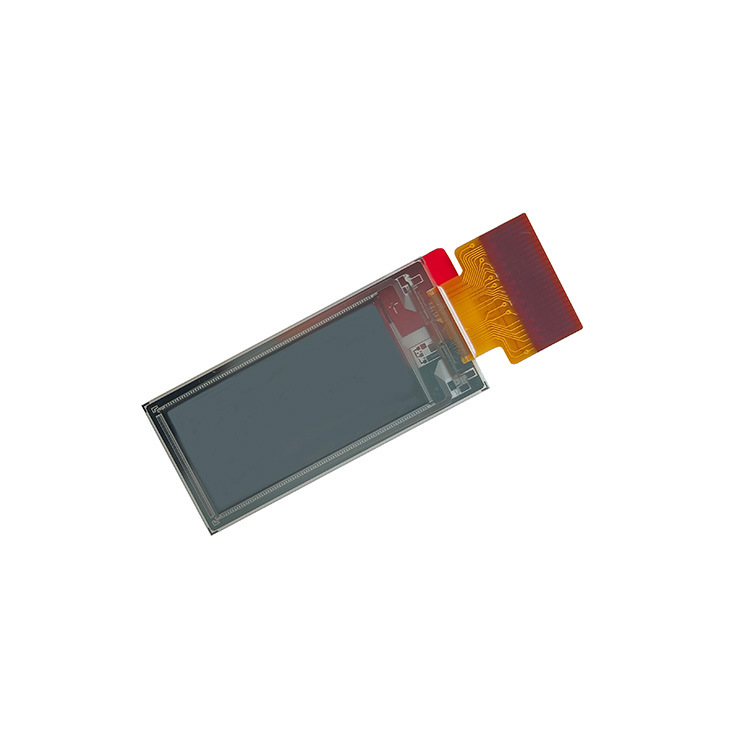

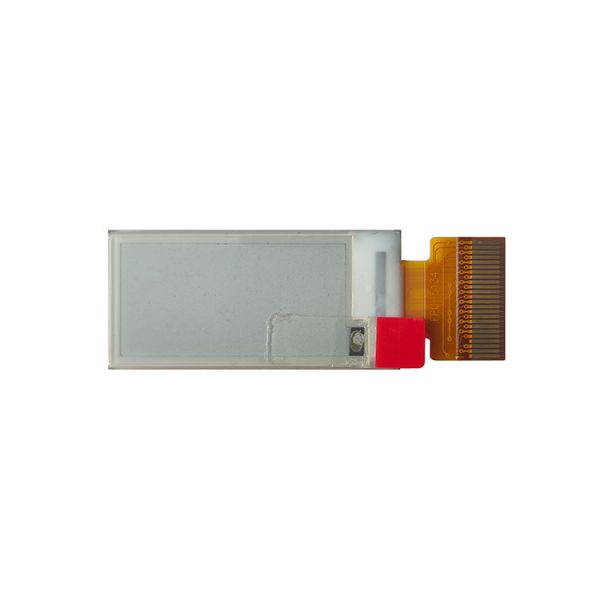

C: Product Picture

0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface

0.97 inch E-paper Display with 88x184 Resolution and 4wire SPI Interface







D: E-paper Product Knowledge

  • E- paper Advantages:
  • paper-like reading experience
  • ultra wide view angle
  • ultra low power consumption
  • ultra thin
  • eye protection
  • environmental protection
  • without backlight


E-paper Disadvantages

  • suitable to lower temperature
  • size is limited in the market
  • color is limited and can't make full color


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day



G: Product Application


1.supermarket retail lable

2.e-book reading

3.financial field

4. smart healthcare

5. smart transportation and smart home


H: E-paper display Characteristics


1. Reflective Display

2. Bi-stable

3. Low Power Consumption

4. High Contrast and Readability

5. Flexible and Lightweight

6. Limited Color Capabilities

7. Slow Refresh Rate


I:Are there any drawbacks to using e-paper displays


1.Limited Color Capabilities

2.Slow Refresh Rate:

3.Limited Viewing Angles:

4.Limited Brightness and Contrast

5.Slower Image Updates

6.Limited Availability of Larger Sizes

7.Susceptibility to Environmental Factors
