High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
Specifications
Brand Name :
HuaXin
Model Number :
ESHX-Epaper0213N01-A0
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100K per month
Delivery Time :
6weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Size :
2.13 Inch
Resolution :
250*122
Outline Dimension :
59.2mm*29.2mm*0.98mm
Viewing Angle :
180°
Operating Voltage :
3.3V
Interface Type :
3-wire SPI, 4-wire SPI
Refresh power :
26.4mW(typ.)
Standby power :
<0.017mW
Description
Key Specifications/ Special Features:

Electronic paper finds extensive applications. Nowadays, many products are transitioning from traditional paper to electronic paper for their price tags. Electronic paper can display a wider array of images and can also be integrated into management systems, significantly enhancing the standardization of product management and employee productivity. It is a wise choice.
Our company offers a range of electronic paper options. Please specify your requirements, and we will provide you with professional and cost-effective services.

High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose

A: Basic Information:
Model NO. ESHXEPAPER0213N01-A0
Feature LED Backlight Display
Optimum Resolution 250*122
Type E-Paper Didplay
Widescreen Not Widescreen
Response Time 15s
3D Not 3D
Interface Type 3-wire SPI,4-wire SPI
Driving Static 3.3V
Viewing Angle All O’clock
Working Temperature 0ºC--35ºC
Storge Temperature ’-10ºC--60ºC
Display Mode Transmission
Transport Package Carton
Specification International Standard Packing
Trademark ASK
Origin Dong Guan China
HS Code 8531200000
Production Capacity 10000PCS/Month
B: Other attributes
Resolution 250*122
Outline dimension 59.2(H)*29.2(v)*0.98(D)mm
Display size 48.55(H)*(V)m23.71m
Display color black, white,red
Grey scale 2
Viewing angle 180 O'clock
Operating voltage 3.3V
Interface Type 3-wire SPI, 4-wire SPI

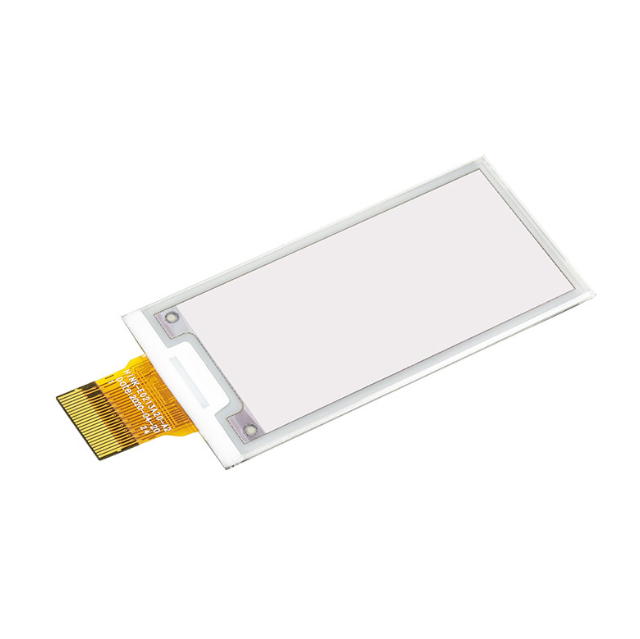

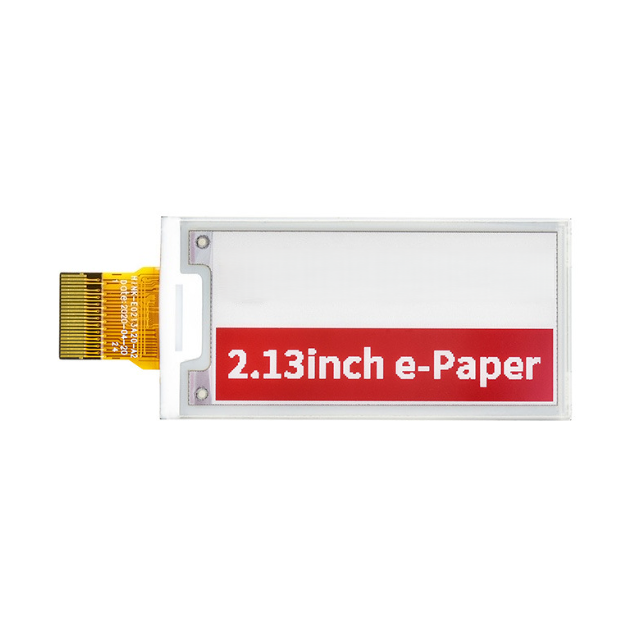

C: Product Picture
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose High quality 2.13 Inch E-Ink E-Paper Display in Red Black and White for Shelf Label purpose
D: E-paper Product Knowledge

E- paper Advantages:

  • paper-like reading experience
  • ultra wide view angle
  • ultra low power consumption
  • ultra thin
  • eye protection
  • environmental protection
  • without backlight

E-paper Disadvantages

  • suitable to lower temperature
  • size is limited in the market
  • color is limited and can't make full color
E: Company Information

Huaxin Advantage:

  • factory base located at inland city which has cost effective
  • most advanced new equipment which can keep quality stable
  • most processes using fully automatic equipment which has effeciency and stable quality
  • professional engineers and production leaders who works in lcd field for more than 20 years
  • self design for customized product

our certificates

  1. ISO14001/
  2. ISO9001/IATF16949
  3. SGS of LCD module
  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%
F: Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton Capacity 4.5 9 9 9 9 Unit:thousands of logarithms/Day
LCM Producton Capacity 70 150 300 450 450 Unit:Thousand piece/Day
Backlight Producton Capacity 100 200 300 500 500 Unit:Thousand piece/Day
OLED Producton Capacity 10 20 30 40 50 Unit:Thousand piece/Day
G: Product Application
  • supermarket retail lable
  • e-book reading
  • financial field
  • smart healthcare
  • smart transportation and smart home
H: E-paper display Characteristics
  • Reflective Display
  • Bi-stable
  • Low Power Consumption
  • High Contrast and Readability
  • Flexible and Lightweight
  • Limited Color Capabilities
  • Slow Refresh Rate
I: Are there any drawbacks to using e-paper displays
  • Limited Color Capabilities
  • Slow Refresh Rate:
  • Limited Viewing Angles:
  • Limited Brightness and Contrast
  • Slower Image Updates
  • Limited Availability of Larger Sizes
  • Susceptibility to Environmental Factors
