BOE 10.1 1280x800 eDP LCD Panel GV101WXM-N81 250 Nits
BOE 10.1 1280x800 eDP LCD Panel GV101WXM-N81 250 Nits
BOE 10.1 1280x800 eDP LCD Panel GV101WXM-N81 250 Nits
BOE 10.1 1280x800 eDP LCD Panel GV101WXM-N81 250 Nits
Specifications
Brand Name :
BOE
Model Number :
GV101WXM-N81
Place Of Origin :
Made In China
Certification :
Green Product (RoHS & Halogen Free Product))
MOQ :
50pcs
Price :
To Be Negotiated
Packaging Details :
Carton Box Or Wood Case
Delivery Time :
1~15 Working Days
Payment Terms :
T/T
Supply Ability :
1000pcs Per Day
Operating Temperature :
0~50℃
Resolution :
1280x800 Pixels
Display Color :
16.7M
Luminance :
250cd/㎡
Surface Treatment :
HC Glare
Active Area :
216.96x135.6mm
Panel Size :
10.1"
Storage Temperature :
-20~60℃
Description

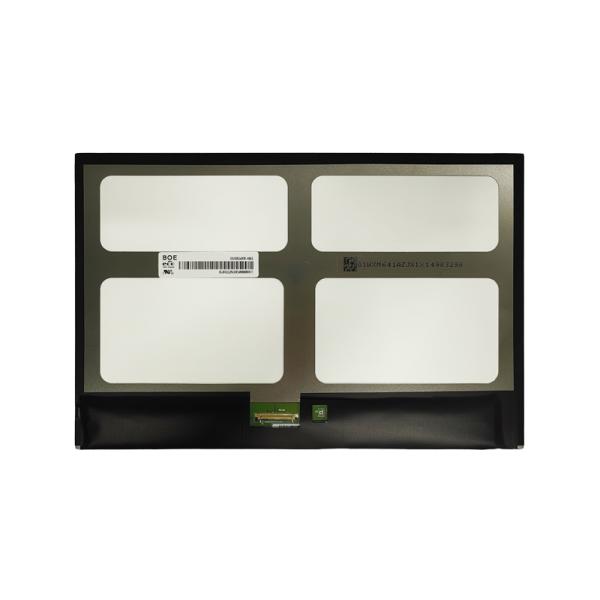

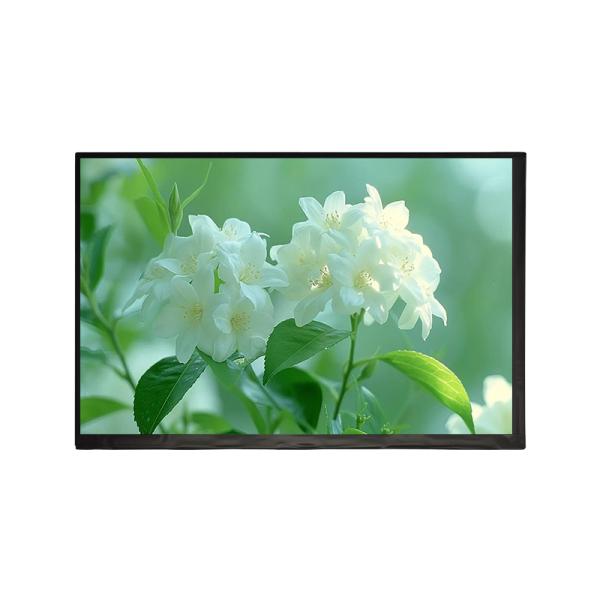

BOE 10.1" 1280x800 eDP Interface LCD Panel GV101WXM-N81 with Brightness of 250 Nits

Product Description of GV101WXM-N81:

GV101WXM-N81 is a 10.1" LCD panel with resolution of 1280x800 pixels, eDP interface, wide viewing angles, brightness of 250 nits, and HC glare. It is from BOE, orginal new A grade. Multi-touch funtion is for option. The LCD Panel product is a cutting-edge Active Matrix Display that offers exceptional visual quality and performance.


The Active Area of the LCD Panel measures 216.96x135.6mm, providing ample screen space for vibrant and detailed imagery. This generous Active Area ensures that every pixel is utilized effectively, resulting in crisp and clear visuals. The Outline dimensions of the LCD Panel are 228.3x149.05mm, making it a compact and versatile display solution.


Equipped with an EDP Interface, the LCD Panel offers seamless connectivity and compatibility with a wide range of devices. The EDP Interface ensures smooth data transmission and enables the panel to deliver high-quality images without any lag or distortion.


With a Luminance of 250cd/㎡, this LCD Panel delivers bright and vivid colors that pop off the screen. Whether viewing photos, videos, or graphics, the high Luminance level ensures that every detail is showcased with clarity and precision.

Features of GV101WXM-N81:

  • 1 Lane eDP1.2 Interface
  • Thin and light weight
  • Display 16.7M coors (Hi FRC)
  • 250 nits brightness, low reflection and wide viewing agnle
  • 3.3V for logic power and 12V for backlight LED
  • RoHS Compliant
  • Touch Function is for Option

Technical Parameters of GV101WXM-N81:

Outline 228.3x149.05mm
Color Gamut 50%
Operating Temperature 0~50℃
Luminance 250cd/㎡
Viewing Angle 85/85/85/85 Deg.
LED Life-time 1,5000hours Minimum
Panel Size 10.1"
Backlight Type LED
Storage Temperature -20~60℃
Resolution 1280x800 Pixels
