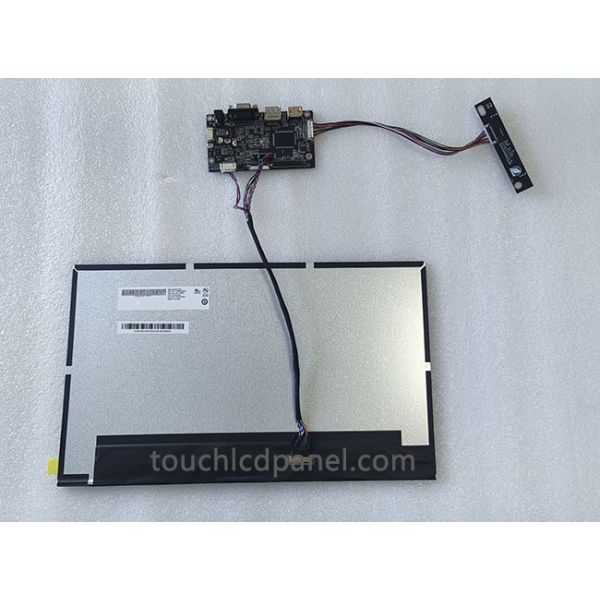

15.6-inch LCD Panel G156HAN05.0 from AUO for Indoor Applications with FHD Resolution and Brightness of 500 Nits

Product Description of G156HAN05.0:

G156HAN05.0, an industrial grade TFT-LCD module from AUO, is a color active matrix liquid crystal display composed of TFT-LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920x1080 screen and 16.2M colors (RGB 6-bits + 2FRC data driver) with LED backlight driving circuit. All input signals are eDP (Embedded Display Port) interface compatible. G156HAN05.0 is designed for a medical monitor, industrial machine and some other indoor display panels.

One of the key highlights of this LCD Panel is its LED Backlight with Driving Circuit Design. The integration of LED backlighting provides bright (500nits), uniform illumination (80%) across the entire display, enhancing contrast (1000) and color accuracy (16.2M colors). The driving circuit design optimizes power efficiency and ensures stable backlight performance, resulting in longer lifespan (50,000 hours of LED lifetime) and reduced energy consumption (12.8W Max).

Equipped with an EDP (Embedded DisplayPort) interface, this LCD Panel offers high-speed data transmission capabilities, supporting seamless integration with modern computing devices. The EDP interface (2 lane eDP 1.2) is known for its ability to deliver high-resolution video signals with minimal latency, which is essential for applications requiring fast and responsive display output.

Features of G156HAN05.0:

• Product Name: 15.6-inch LED-backlit LCD Panel
• Interface: EDP (2 lane eDP 1.2)
• Brightness: Typical 500 Nits; Minimum 400 Nits
• Support Colors: 16.2M Colors
• LED Life Time: 50,000 Hours
• Operating Temperature Range: -10 to 60 °C
• Technology: Liquid Crystal Display Panel
• Color Gamut: 72%
• ESD Contact : ±8 KV / Operation, Class B ; Air : ±15 KV / Operation, Class B

Technical Parameters:

Touch LCD Module

Anti-glare Touch Panel LBCTP1569880

AUO G156HAN05.0 LCD panel is a standard TFT-LCD module and LB has PCAP touchscreen overlays to work with it. LBCTP1569880 is one of our universal projected capacitive touch (PCT). It is a 15.6-inch anti-glare PCAP touchscreen overlay. It is glass on glass solution, driven by an USB controller, supporting plug-and-play. Besides, the front glass of this touch panel has anti-glare surface treatment. And we get them optically bonded together as a touch-lcd module, recommended for medical and industrial applications.

3mm Front Glass Touch Panel

Similarly, this is another PCAP touchscreen kit (Model No.:LBCTP156010), including a touch glass and a touch controller PCBA. It supports USB interface.

Applications:

The AUO G156HAN05.0 LCD panel is a high-quality LED-backlit LCD Panel designed to deliver exceptional visual performance across a wide range of applications.

It is suitable for use in consumer electronics such as laptops, portable monitors, and all-in-one PCs, where compact size and superior display quality are critical. Additionally, its IPS panel type allows for excellent color reproduction and viewing angles, making it perfect for professional applications like graphic design, video editing, and medical imaging.

AUO G156HAN05.0 is also well-suited for industrial, medical and commercial environments, including digital signage, kiosks, and embedded systems, where durability and reliable performance are required. The panel’s LED backlight ensures clear visibility even in brightly lit spaces, while its robust build supports continuous operation.
