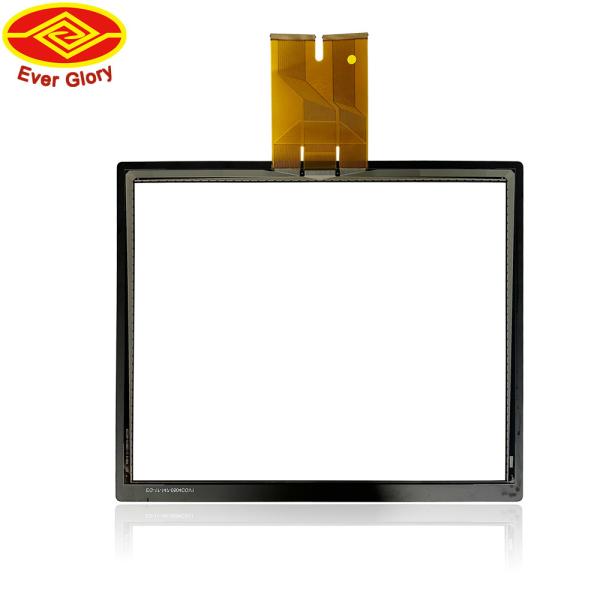

17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
Specifications
Brand Name :
EG
Model Number :
EG-17-A-0504V1
Certification :
ROHS, FCC, EMC,CE
Place of Origin :
China
MOQ :
1pcs
Price :
TBA
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
wooden box/ carton box
Interface type :
USB
Type :
capacitive
Screen Size :
Customized Size
Products status :
Stock
Touch points :
10 Points, 2-32 Multi Point Touch, 1-10 points
Application :
Industrial Application, training, bank other field, monitors etc.
Screen Diagonal :
17/5:4
Cover Outline Dimension :
372.92*305.34mm
Touch Panel View Area :
337.92*270.34mm
Touch Panel Active Area :
338.92*371.34mm
Touch Panel Thickness :
2.9mm
Cover surface hardnes :
7H
Controller Interface :
USB Typ.
Touch Response Time :
≤25ms
Description

High resolution 10 touch points 17 inch touch screen lcd touch screen monitor which widely applicable to industrial machine, outdoor kiosk machine, medical machine etc.

17 Inch Touch Panel With Glass Laminate And Touch Sensor

17 Inch Touch Panel With Glass Laminate And Touch Sensor

Size 17 inch
Structure G+G
Touch controller EETI / ILITEK
Surface hardness 7H
Touch points 10 Points
Application Industrial,medical,banking,consumer,military,education,HMI....
Color Black,White,Transparent,colors optional
Customized AF/AR/AG/waterproof/glove touch
Operating system Win7,win8,win10,Android, Linux,IOS
Warranty 3 years
Type Capacitive
Transmittance ≥85%


17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor

Lens's features

Sensor features
Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm		 Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232


17 Inch Touch Panel With Glass Laminate And Touch Sensor

17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor
17 Inch Touch Panel With Glass Laminate And Touch Sensor

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
