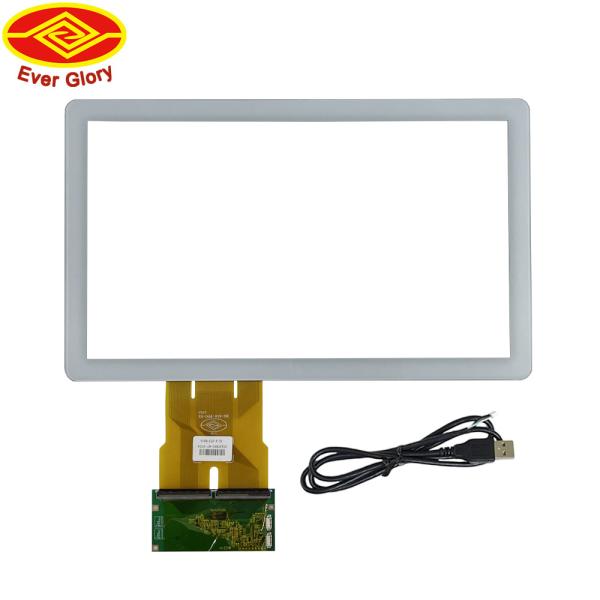

15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
Specifications
Place of Origin :
Guangdong, China
Brand Name :
EG
Packaging Details :
Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box.
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$50.00/pieces 2-499 pieces
Certification :
CE/FCC/ROHS/ISO9001/ISO14001
Type :
COB
Display Size :
customized size
Products Status :
Stock
Touch points :
10 Points
Structures :
Glass/Glass
IC :
EETI
Outline Dimension :
229.99(W)*380.56(L)±0.3mm
Active Area :
194.99(W)*345.56(L)±0.3mm
Total Thickness :
2.9±0.2mm
Transmittance(T%) :
>85%
Interface :
USB/RS232/I2C
Color :
Customizable
Port :
Shenzhen port/Guangzhou port, China
Description

15.6 Inch Capacitive LCD Touch Screen Panel Overlay Kits For Vandal Proof LED Touchscreen Audio System Car Navigation

15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation

Size 15.6 inch
Screen Diagonal 16:9
Structure G+G
Touch controller EETI / ILITEK
Surface hardness >6H
Waterproof IP65
Outline Dimension 229.99(W)*380.56(L)±0.3mm
View Area 193.99(W)*344.56(L)±0.3mm
Active Area 194.99(W)*345.56(L)±0.3mm
Sensor Thickness 0.7±0.05mm
Cover Thickness 2.0±0.2mm
Total Thickness 2.9±0.2mm
Power Consumption ＜0.55 W
Life Time Knock Test ＞50,000,000 times
Operation Conditions -40℃~+85℃ 20%~90%RH
Report Rate ＞100 Hz
Linearity X≦1.0%, Y≦1.0%
Color Black
Interface Type USB,RS232,I2C
Warranty 3 years


15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation

Lens's features

Sensor features
Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm		 Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232


15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation

15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation
15.6 Inch Capacitive Touch Panel , LCD Touch Screen For Vandal Proof Car Navigation

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
