15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
Specifications
Brand Name :
EG
Model Number :
EG-15-A-0635V1-KT
Certification :
CE/FCC/ROHS/ISO9001/ISO14001
Place of Origin :
Guangdong, China
MOQ :
2 units
Price :
TBA
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs/month
Packaging Details :
Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box.
Description

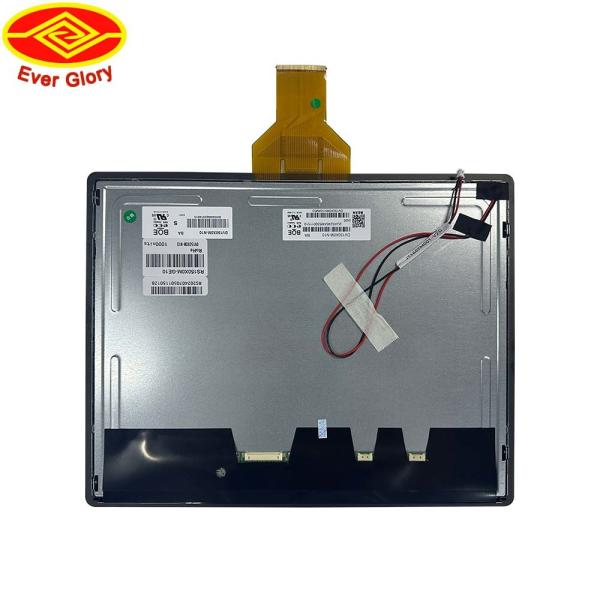

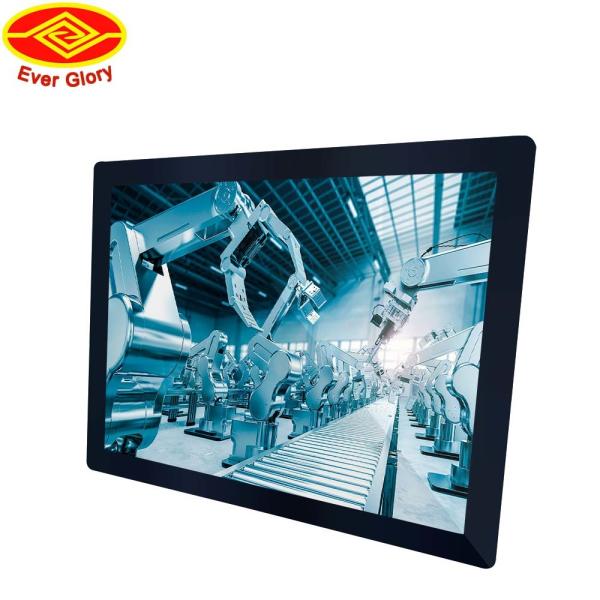

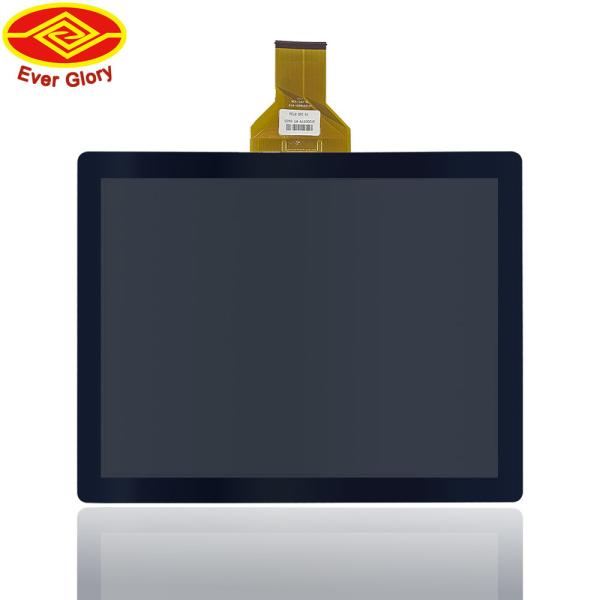

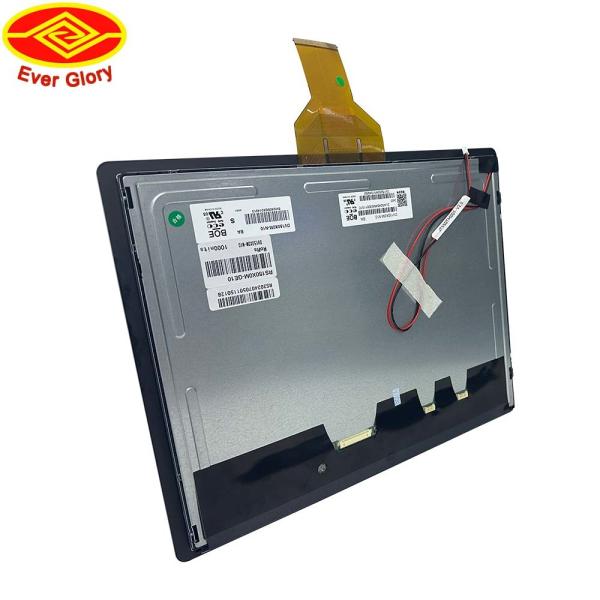

15.0-inch TFT LCD module with built-in LED backlight unit and 20-pin LVDS interface. The module supports 1024 x 768 XGA resolution and can display 16.7M/262k colours. In addition, if you have other needs, support customisation, we can provide you with touch screen solutions.

15 Inch Tft Lcd Display Module

Size 15 inch
Cover Outline Dimension 336.3*260.6 mm
Touch Panel View Area 336.3*260.6 mm
Touch Panel Active Area 305.3*229.6 mm
Touch Panel Thickness 2.75 mm
Display Outline Dimension 326.5*253.5 mm
Support Touch Points 10 points
Cover hardness ≥7 H

Ink adhesion

 ≥4B
Pixels H×V 1024 x R.G.B x 768
Support Color 16.7M Colors ( RGB 8-bits )
Average lifespan 50000h
Working conditions -30°C~80°C
Torage conditions -40°C~80°C

15 Inch Tft Lcd Display Module


15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module

15 Inch Tft Lcd Display Module15 Inch Tft Lcd Display Module

Shape:Standard/Customization Material:Glass,Film Optical Bonding
Color:Silkprinting,logo FPC:Shape Design Optional Air Bonding
Glass material:Glass,PMMA IC:EETI/ILITEK LCD:LED,OLED,TFT,IPS
Treatment:AR/AF/AG/Anti-UV Interface:12C/USB/RS232
Thickness:1.1-12mm


15 Inch Tft Lcd Display Module

15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module
15 Inch Tft Lcd Display Module

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
