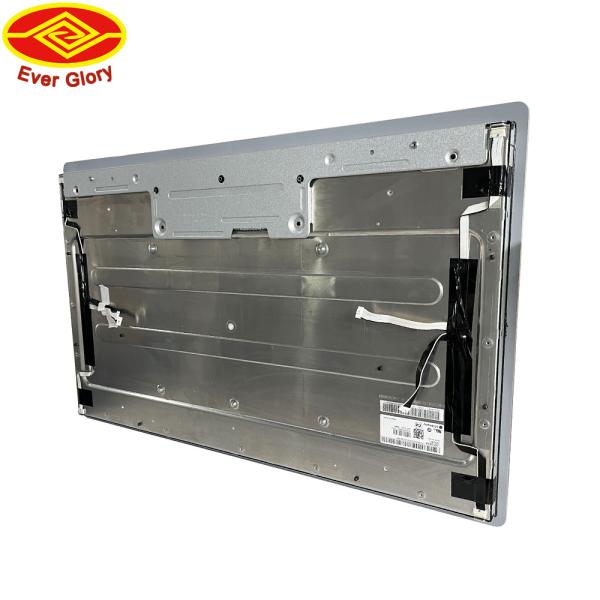

31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
Specifications
Brand Name :
EG
Model Number :
EG-17-A-0504V1
Certification :
CE/FCC/ROHS/ISO9001/ISO14001
Place of Origin :
Guangdong, China
MOQ :
2 pieces
Price :
$184.00/pieces 2-499 pieces
Supply Ability :
100000 Piece/Pieces per Month
Packaging Details :
Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box.
Type :
Capacitive
Display Size :
31.5 "
Touch points :
10 Points Touch
Support Color :
16.7M Colors ( RGB 8-bits )
Transmittance :
＞90%
Touch Controller :
EETI or ILITEK
Brightness :
350cd/m2
Color Gamut :
72% NTSC
Contrast Ratio :
1000:1
Display Ratio :
16:9
Display Resolution :
3840(RGB)*2160 (UHD)
Description

31.5 Inch Touch Display Panel For Marine And Energy Industries Supporting I2C Interface And IP65 Waterproof Rating

31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface

Touch Panel P/N EG-31.5-A-1609V1
Display P/N G3105EG01_V1
Screen Diagonal 31.5 inch 16:9
Resolution 3840(RGB)*2160 (UHD) 139PPI
Viewing Angl 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Contrast Ratio 1000 : 1 (Typ.)
Brightness 350 Cd/m2
OD 734(H)×420(V) ×17.7(D) mm
Active Area 696.96(H)*392.04(V) mm
Total Thickness 21.9mm
Impact resistance ≥IK07


31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface

Shape:Standard/Customization Material:Glass,Film Optical Bonding
Color:Silkprinting,logo FPC:Shape Design Optional Air Bonding
Glass material:Glass,PMMA IC:EETI/ILITEK LCD:LED,OLED,TFT,IPS
Treatment:AR/AF/AG/Anti-UV Interface:12C/USB/RS232
Thickness:1.1-12mm

31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface
31.5 Inch Touch Panel Display For Marine Energy Industries Supporting I2C Interface

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.

Product tags

industrial panel mounted touch screen pc

,

siemens simatic touch screen panel

,

industrial panel pc touch screen
