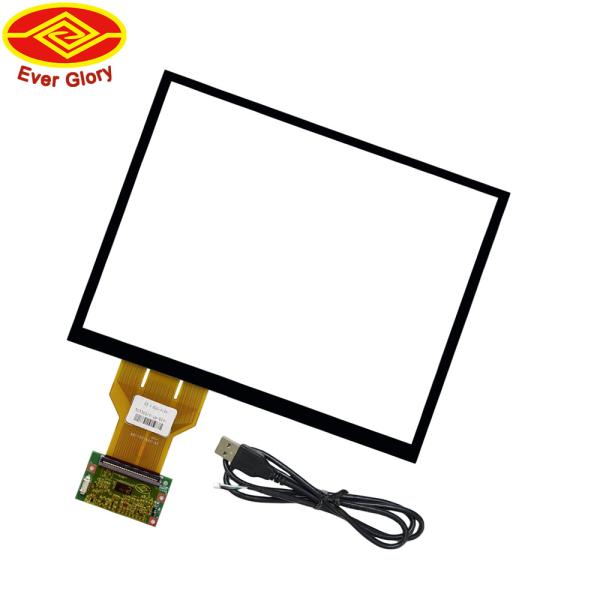

18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
Specifications
Brand Name :
EG
Model Number :
EG-18.5-A-1609V1
Certification :
ROHS, FCC, EMC,CE
Place of Origin :
China
MOQ :
2pcs
Price :
18-20$/price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
wooden box/ carton box
Interface type :
USB
Type :
Capacitive
Screen Size :
18.5 inch
Resolution :
1920*1080, 1024 x 768, 4096*4096, 3840*2160, Other
Products status :
Stock
Touch points :
10 Points, 2-32 Multi Point Touch, 1-10 points
Operating system :
XP Win7 8 Android Linux, Win7, Android, linux, XP
Application :
Industrial training bank other field monitors etc
Structure :
Glass+Glass+FPC+IC
Solution :
EETI/ILIEK/SIS
Description

18.5 Inch PCAP Touch Panel Anti-Glare 10 Touch Points Waterproof Touch Screen Panel

18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof

Size 18.5 inch
Structure G+G
Touch controller EETI / ILITEK
Surface hardness >6H
Waterproof IP65
Sensor glass Thickness 0.7mm
Cover lens Thickness 2.0mm
Total Thickness 2.9mm
Sensor Proces Print Process(ITO Pattern) + laser line(Ag)
AA(WxH) 410.8±0.3mm*231.4±0.3mm
Transmittance >85%
Touch point 10 points
Relative Humidity 95% at 60℃, RH Non-condensing
Interface Type USB,RS232,I2C
Warranty 3 years


18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof

Lens's features

Sensor features

Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm

Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232


18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof

18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof
18.5 Inch PCAP Multi Touch Screen Anti Glare 10 Touch Points Waterproof

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
