7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
Specifications
Place of Origin :
Guangdong, China
Brand Name :
EG
Packaging Details :
Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box.
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$49.00/pieces 2-499 pieces
Certification :
CE/FCC/ROHS/ISO9001/ISO14001
Type :
COB
Display Size :
customized size
Products Status :
Stock
Screen Diagonal :
7 inch
Structures :
G+G
Outline Dimension :
265.4(W)*444.8(L) ±0.3mm
Active area :
231.4(W)*410.8(L)±0.3mm
Module View Area :
230.4(W)*409.8(L)±0.3mm
Application :
Industrial, medical, application
Operating System :
WinXP/7/8/10, Linux, Android, Mac
Shipping ways :
DHL,TNT, FedEx,EMS
Touch points :
Multi Point Touch
Port :
Guangzhou port/ Shenzhen port,China
Description

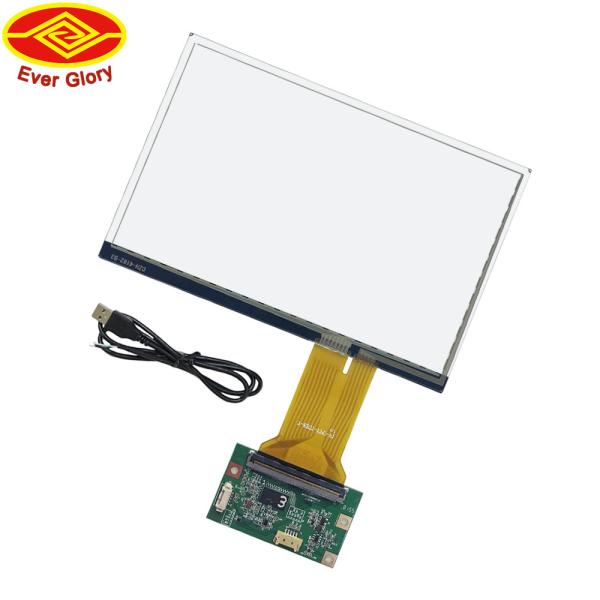

7 inch Capacitive TFT LCD Touch Screen Panel For Floor Standing Hospital Self-serve Queue System Ticket Dispense Monitor

7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser

Size 7 inch
Structure G+G
Touch controller EETI / ILITEK
Surface hardness 6H
Touch points 10 Points
Application Industrial,medical,banking,consumer,military,education,HMI....
Color Black,White,Transparent,colors optional
Customized AF/AR/AG/waterproof/glove touch
Warranty 3 years
Type Capacitive
Transmittance ≥85%


7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser

Lens's features

Sensor features
Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm		 Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232


7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser

7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser
7 Inch Capacitive TFT LCD Touch Panel Screen For Floor Standing Ticket Dispenser

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
