Specifications
Brand Name :
ZK-tool®
Model Number :
ZK410,420,430,450,460,470,5100,5120,5166,etc
Certification :
Refer to sample
Place of Origin :
China
MOQ :
10 Sheets
Price :
negotiationable
Payment Terms :
T/T
Supply Ability :
>100m³ /month
Delivery Time :
7-15 days after receipt the deposit
Packaging Details :
Standard export packing
Density :
0.6-1.7 g/cm3
Material :
Epoxy resin
Hardness :
~90 Shore D
Stability :
Dimensionally stable
Surface Finish :
Smooth
Temperature Resistance :
Up to 150°C
Dimension :
Customizable
Application :
Prototype,Model, Mold,Mould
Description

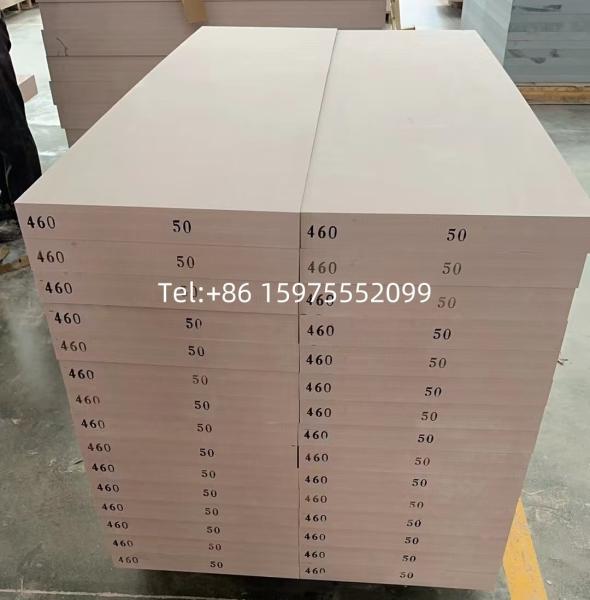

Dongguan ZEEK New Materials Co., Ltd is your first-choice epoxy modeling board and polyurethane tooling board factory from China, we can provide customized service. We have developed more than 1000 different size molds. We can provide neutral packing or custom logo, various standard or customized shapes and sizes,standard board dimensions from diameter 300~600mm, 750x500x50-100mm,1000x500x50-100mm to 2000 x 1200 x 220 mm,other larger size also can be customized. The size of tooling board as below is 1500x1000x400mm.

Model NO. ZK-tool®460
Color brown/beige
Density(g/cm3) 0.7
Hardness(Shore D) 68-73
Coefficient of thermal expansion(10-6 K-1) 45-55
Thermal variant temperature(°C) 75-80
Compressive strength(N/mm²) 50-55
Flexural strength(N/mm²) 35-40
Tensile strength(N/mm²) 25-30
Key Properties 1. Very fine surface structure
2. Very easily machined
3. Excellent dimension stability
Applications 1. Master and copy models
2. Vacuum forming molds
3. Fixtures and gauges
Dimension(mm) 750 x 500 x(50/75/100)
1500 x 500 x(50/75/100)
