ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
Specifications
Brand Name :
ZK-Tool®
Model Number :
ZK700
Certification :
Refer to sample
Place of Origin :
China
MOQ :
10 sheets
Price :
negotiationable
Payment Terms :
T/T
Supply Ability :
>100m³ /month
Delivery Time :
10 days after receipt the deposit
Packaging Details :
Standard export packing
Compressive Strength :
≥55 MPa
Material :
Epoxy Tooling Board
Cnc Machinable :
Yes
Surface Finish :
Smooth
Density :
0.7 g/cm3
Hardness :
Shore D 73-78
Color :
Brown
Chemical Resistance :
Excellent
Description

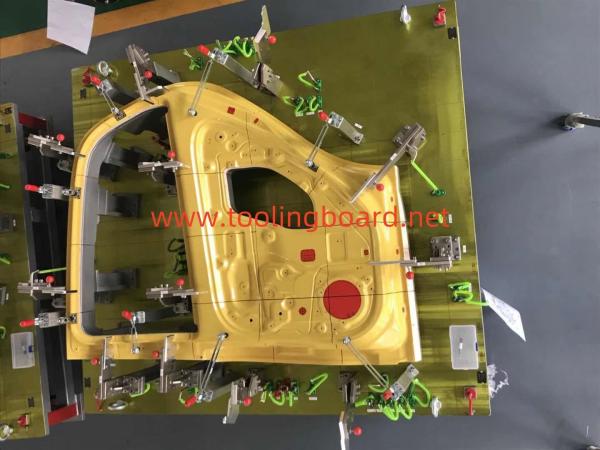

ZK700 is a high temperature low density epoxy tooling Board for carbon fiber molds, heat resistance up to 150°C.It is a good choice for use in high temperature lay-up tools and parts, carbon fiber moulds,thermoforming,metal stamping,checking fixtures and gauges.

If you are using modeling and tooling board RENSHAPE 5060 NECURON 690 702,OBO 750 850,RAMPF WB 0691, SIKA LAB 973, our work board ZK700 is also your ideal alternative to them. We have a lot of stock ready for ship.

Model NO. ZK700
Color brown
Density(g/cm3) 0.7
Hardness(Shore D) 73-78
Coefficient of thermal expansion(10-6 K-1) 35-45
Thermal variant temperature(°C) 140-150
Compressive strength(N/mm²) 50-55
Flexural strength(N/mm²) 35-40
Tensile strength(N/mm²) 25-30
Key Properties 1. Very fine surface structure
2. High temperature resistant,up to150℃
3. Excellent dimension stability
Applications 1. Master and copy models

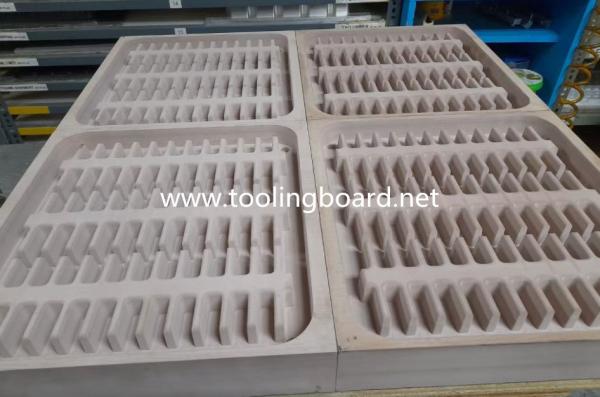

2. Vacuum forming molds
3. Lay-up tools for prepreg
Dimension(mm) 750 x 500 x(50/75/100)
1500 x 500 x(50/75/100) bigger size can be customized
