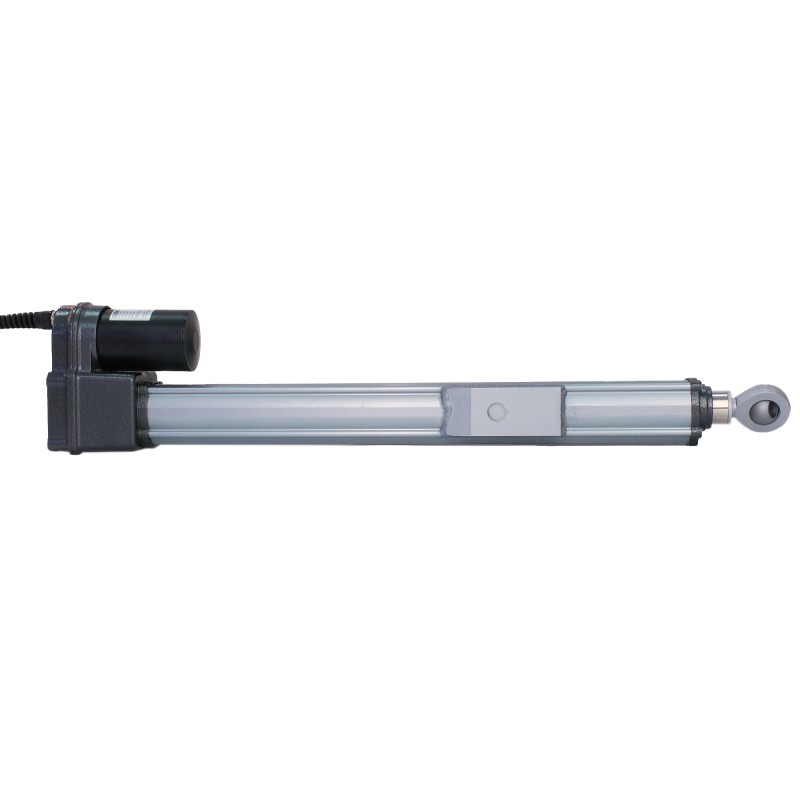

TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
Specifications
Model Number :
U20K
Price :
$280-320 / piece
Duty Cycle :
10%
Ratio :
110:1
Rated Speed(mm/s) Full Load (24V) :
1.6mm/s
Certification :
CE
Code :
A
IP Class :
IP65/IP66/IP67
MOQ :
Contact Supplier
Rated Load (N) Pull :
20,000
Place of Origin :
Guangdong, China
Rated Current(A) :
7.0
Brand Name :
TOMUU
Description
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator
Optimized for single-axis solar tracking systems, this industrial linear actuator delivers reliable performance for horizontal single-row ground solar tracking brackets.
Product Overview
The TOMUU U20K single-axis optimized industrial linear actuator features a standard fisheye front-end device calibrated specifically for horizontal single-row ground solar tracking applications. Operating at 24V DC, this actuator provides balanced 20000N push-pull load capacity at 5A rated current, with 35000N extreme dynamic load capability.
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
Technical Specifications
Voltage 12V DC / 24V DC
Maximum Load 20000N
Speed 1.6mm/s ±5%
Duty Cycle 10%
Protection Class IP65/IP66/IP67
Noise Level ≤60dB
Stroke 100-800mm
Material Aluminium Alloy
Temperature Range -40℃ to +65℃
Product Dimensions
TOMUU U20K Fisheye 20000N 5A Industrial Linear Actuator For Single Axis Solar Tracker
Key Advantages
  • Optimized Force Output: Tuned force curve perfectly matches horizontal rotation mechanical demands of single-axis solar trackers, delivering balanced push and pull power without uneven bracket stress
  • Fisheye Front Joint: Eliminates torsion generated during horizontal PV array rotation, extending bracket service life
  • Energy Efficient: Low 5A rated current reduces power supply configuration costs for single-axis solar farms
  • Weather Resistant: IP66 dust and water resistance ensures stable year-round outdoor operation
  • Easy Installation: Standardized mounting fittings and custom stroke options with multi-length cables simplify mechanical matching and reduce on-site assembly labor
This actuator is designed for compatibility with mainstream single-axis PV tracking systems worldwide, offering reliable performance and simplified integration for solar energy applications.
