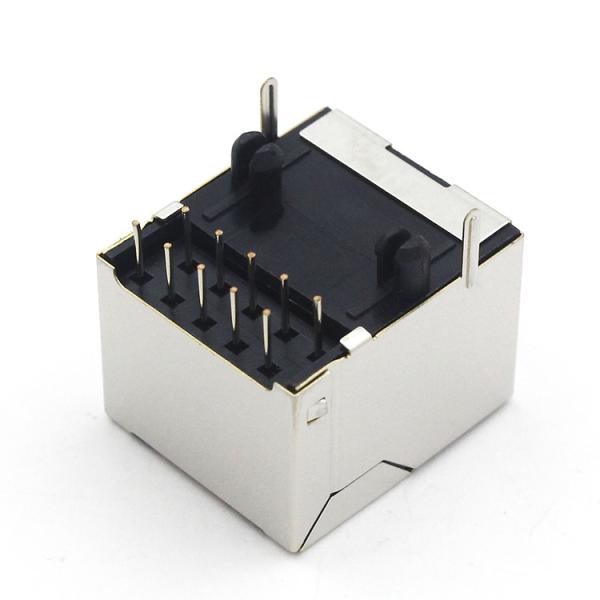

Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11
Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11
Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11
Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11
Specifications
Brand Name :
TM
Model Number :
TM56A011EXX11
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
20Days
Packaging Details :
100pcs/tray,5000pcs/carton
Number of Positions :
10
Terminals per Port :
10
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
500PCS
Package :
100pcs/tray,5000pcs/carton
Keywords :
rj45 connector/rj45 female connector/rj45 jack/rj45 socket
Description

Latch Down One Port 10 positions 10 contacts rj45 female connector Without Led ,18.15 mm TM56A011EXX11

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu” (Optional) over nickel( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 18.15 mm
Connector Width: 15.65 mm
Connector Height: 13.20 mm
Termimal Solder Pin Length: 2.8 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer (TM56A011EXX11) Attributes:

Model: TM56A011EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray,5000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year

RJ45 Female Connector (TM56A011EXX11) Mechnical Drawing:

Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11

Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11Single Port 10 Pin Connector Rj45 Latch Down Without Led 18.15 Mm TM56A011EXX11
