rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
Specifications
Brand Name :
TM
Model Number :
TM52D011EXX41
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
20Days
Packaging Details :
90pcs/tray,2340pcs/carton
Jack Type :
RJ45
Alias :
RJ48/RJ50 JACK
PCB Mount Angle :
180° Angle
PCB Mount Type :
Thru-Hole
Gold Plating :
Customization，Start from 3U
Number of Positions :
10
Terminals per Port :
10
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Insulation resistance :
500 MΩ MIN @ 500V DC
Contact resistance :
30mΩ
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
500PCS
Package :
90pcs/tray,2340pcs/carton
Description

rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41

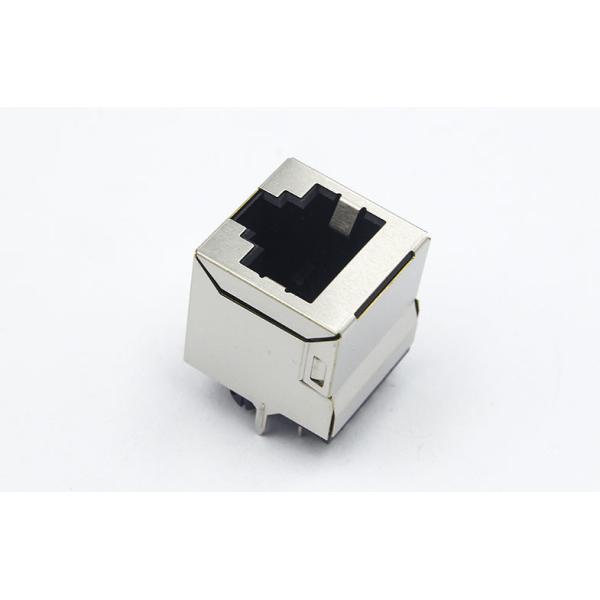

TM52D011EXX41 is Top Entry 10 Pin rj45 Connector with shield Top Entry Thru-Hole .with Locating Pegs,spacing:11.43 mm.Length X Width X Height:15.86 X 17.16 X 16.59 mm.

Alias:RJ48/RJ50 Connector

Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 16.59 mm
Connector Width: 15.86 mm
Connector Height: 16.38 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
180°Orientation
Without LED, let know the connection status
We Support Custom service as required

RJ45 Female Connector (TM52D011EXX41) Mechnical Drawing:

rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
