Specifications
Brand Name :
TM
Model Number :
TM114B01DBA131007
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500 piece
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
100kpcs /day
Delivery Time :
3 work days
Packaging Details :
Tray in Carton
SHIELD PLATING MATERIAL :
NICKEL
SHIELD :
YES
LENGTH :
21.3mm
HOUSING MATERIAL :
PBT UL94V-0
CONTACT MATING AREA PLATING :
GOLD 6U'' PLATING
CONNECTOR TYPE :
BLACK
LED OPTION :
LEFT GREEN,RIGHT YELLOW
NUMBER OF PORTS :
1X3
NUMBER OF CONTACTS :
10
GROUNDING OPTIONS :
Panel Ground and PCB Ground
SHIELD EMI TABS :
YES
ROHS COMPLIANT :
YES
PANEL STOP :
YES
PCB MOUNT ANGLE :
SIDE ENTRY
PACKAGE :
DIP
CONNECTOR & CONTACT TERMINAATES TO :
Printed Circuit Board
LATCH ORIENTATION :
LATCH DOWN
Description

good quality RJ45 Power Over Ethernet (PoE+) RJ45 Jack With Leds 1000Base for Networking Switch TM114B01DBA131007

RJ45 Without Transformer (TM114B01DBA131007) Attributes:

Model Number TM114B01DBA131007
LENGTH 21.3mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

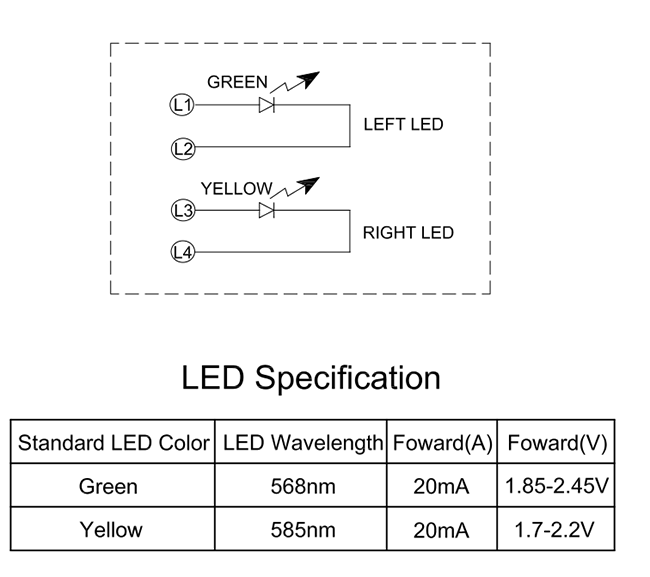

LED OPTION LEFT GREEN,RIGHT YELLOW
NUMBER OF PORTS 1X3
NUMBER OF CONTACTS 8
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN


RJ45 Female Connector (TM114B01DBA131007) Applications:


10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.

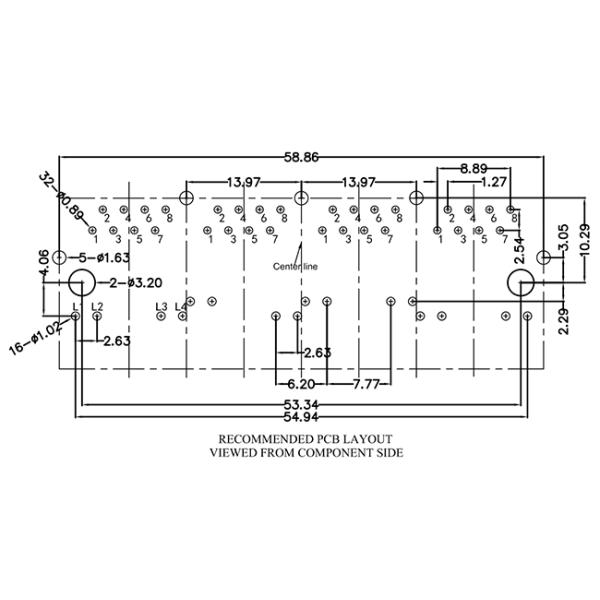

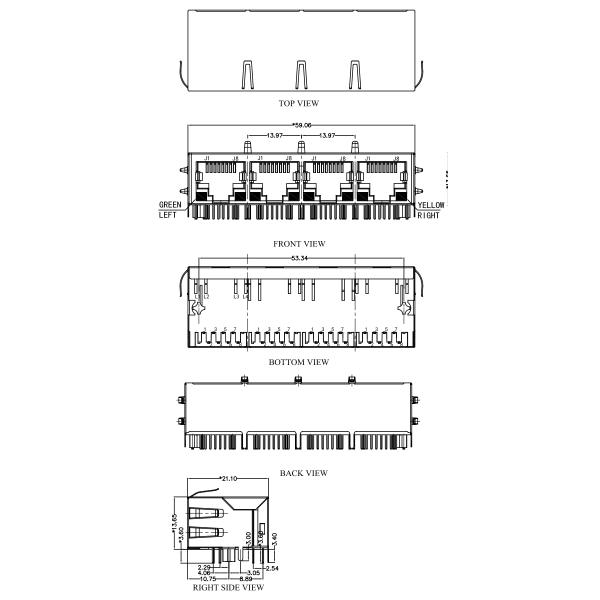

RJ45 Female Connector (TM114B01DBA131007) Mechnical Drawing:

Power Over Ethernet Poe Rj45 Jack Shield EMI LEDS Tab-down 1000 Base For Networking Switch TM114B05DE1Power Over Ethernet Poe Rj45 Jack Shield EMI LEDS Tab-down 1000 Base For Networking Switch TM114B05DE1Power Over Ethernet Poe Rj45 Jack Shield EMI LEDS Tab-down 1000 Base For Networking Switch TM114B05DE1Power Over Ethernet Poe Rj45 Jack Shield EMI LEDS Tab-down 1000 Base For Networking Switch TM114B05DE1Power Over Ethernet Poe Rj45 Jack Shield EMI LEDS Tab-down 1000 Base For Networking Switch TM114B05DE1

RJ45 Connector with Transformer (TM114B01DBA131007) Description:


10/100Base-Tx RJ45 single port 1X4 with LEDS with Side Entry (Right Angle)

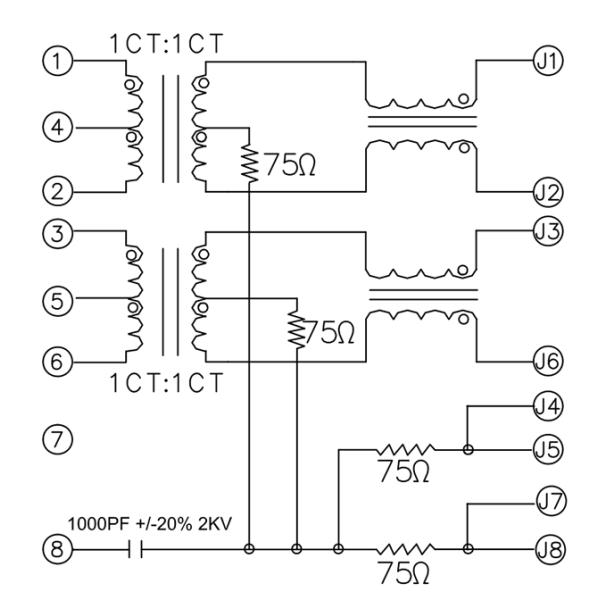

Single port 1X4 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression

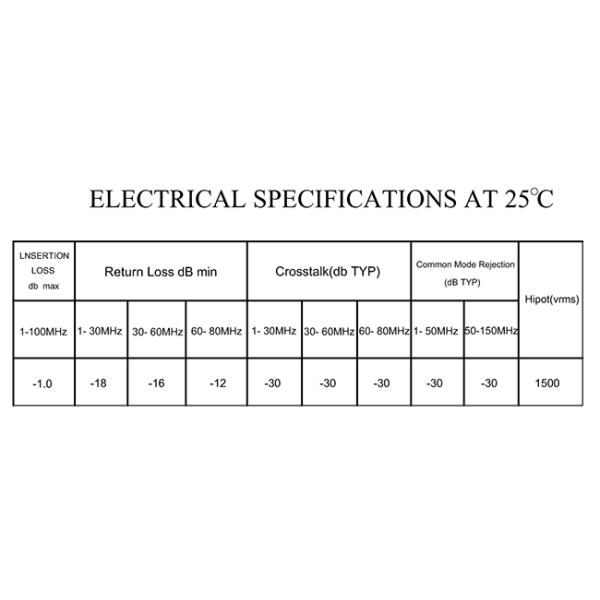

Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
