2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
Specifications
Brand Name :
TM
Model Number :
TM5JC822SX111
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500 piece
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
5KK/year
Delivery Time :
20 Days
Packaging Details :
Tray in Carton
LENGTH :
27.65 mm
HOUSING MATERIAL :
PBT UL94V-0
CONTACT MATING AREA PLATING :
GOLD FU'' PLATING
CONNECTOR TYPE :
BLACK
LED OPTION :
YES
NUMBER OF PORTS :
2X2
NUMBER OF CONTACTS :
8
GROUNDING OPTIONS :
Panel Ground and PCB Ground
SHIELD PLATING MATERIAL :
NICKEL
SHIELD EMI TABS :
NO
SHIELD :
NO
ROHS COMPLIANT :
YES
PANEL STOP :
YES
PCB MOUNT ANGLE :
SIDE ENTRY
PACKAGE :
DIP
CONNECTOR & CONTACT TERMINAATES TO :
Printed Circuit Board
LATCH ORIENTATION :
LATCH DOWN
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
1pcs
Package :
35pcs/tray,875pcs/carton
Description

Side Entry unshielded 2X2 Port RJ45 network jack With LED y/g TM5JC822SX111

Product Structure:



Connector Height: 24.88 mm
Termimal Solder Pin Length: 3.2 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED left yellow/right green, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM5JC822SX111) Attributes:

Model: TM5JC822SX111
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual Layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: left yellow/right green
Shielded EMI Tabs: NO
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 20pcs/tray,500pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year

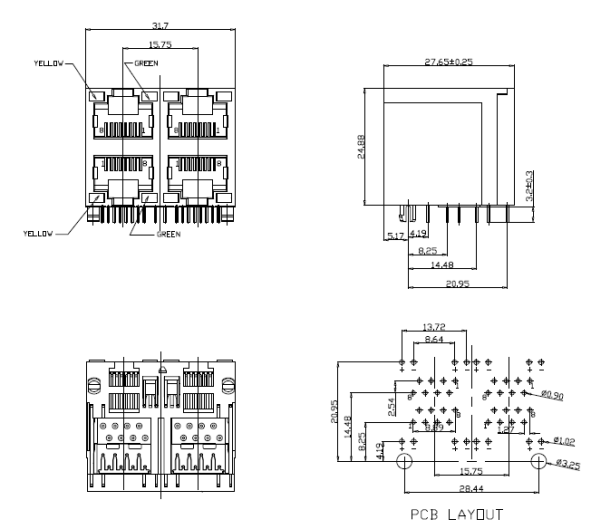

RJ45 Female Connector (TM5JC822SX111) Mechnical Drawing:

2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111
