Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A
Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A
Specifications
Brand Name :
TM
Model Number :
TMRJUSB3EX11A
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray
Current rating :
1.5 A
Shielded EMI Tabs :
No
Product Type  :
RJ45 with USB Connector
Jack Type :
RJ45 or USB
Number of Positions :
8
Terminals per Port :
8
LED Option :
YES,L-YELLOW/R-GREEN
Voltage rating :
125 V
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
500pcs
Package :
50pcs/tray
Description

Single port Integrated Rj45 USB 3.0 connector with Shield and Leds TMRJUSB3EX11A

RJ45 Without Transformer (TMRJUSB3EX11A) Attributes:

Model: TMRJUSB3EX11A
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 USB Connector
Jack Type: RJ45 USB
Number of Positions : 8
Terminals per Port: 8
LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Delivery Time: 20 Days
Supply Ability: 5KK/year

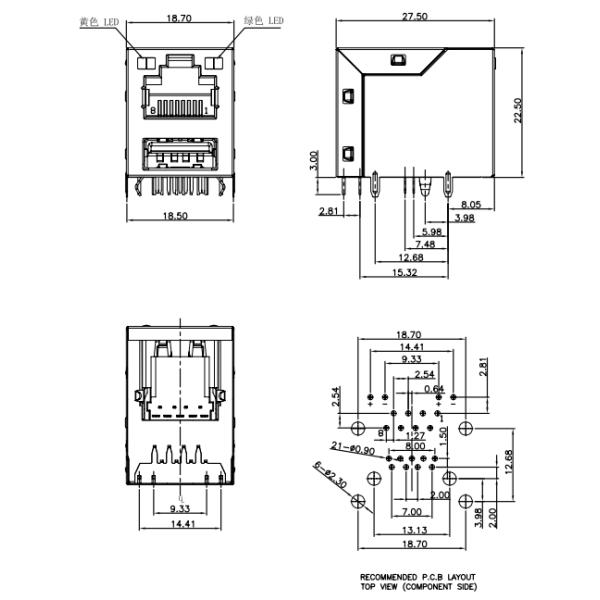

RJ45 Female Connector (TMRJUSB3EX11A) Mechnical Drawing:

Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A
