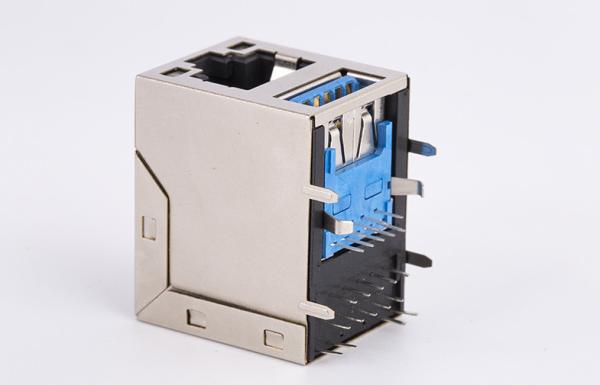

Black Rj45 Single Port / Rj45 Modular Socket 25.78mm Length Tm611q31arx-3.0
Black Rj45 Single Port / Rj45 Modular Socket 25.78mm Length Tm611q31arx-3.0
Specifications
Brand Name :
TM
Model Number :
TM611Q31ARX-3.0)
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500 piece
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
100kpcs /day
Delivery Time :
3 work days
Packaging Details :
Tray in Carton
LED OPTION :
LEFT GN/OR,RIGHT YELLOW
NUMBER OF PORTS :
2X1
NUMBER OF CONTACTS :
12
GROUNDING OPTIONS :
Panel Ground and PCB Ground
SHIELD PLATING MATERIAL :
NICKEL
SHIELD EMI TABS :
NO
SHIELD :
YES
ROHS COMPLIANT :
YES
PANEL STOP :
YES
PCB MOUNT ANGLE :
SIDE ENTRY
PACKAGE :
DIP
CONNECTOR & CONTACT TERMINAATES TO :
Printed Circuit Board
LATCH ORIENTATION :
LATCH DOWN
Description

Single port 2X1 Tab Up RJ45 USB with internal magnetics 100/1000Base-Tx RJ45 Connector with Transformer TM611Q31ARX-3.0

RJ45 Connector with Transformer (TM611Q31ARX-3.0) Description:

100/1000Base-Tx RJ45 single port 2X1 with LEDS with Side Entry (Right Angle)

Single port 2X1 Tab Up RJ45 USB with internal magnetics

Internal magnetics are 100% electrically tested for HI-POT and functionality

Suitable for CAT5&6 fast Ethernet Cable or better UTP

350uHminimum OCL with 8mA bias current

High performance for maximum EMI suppression

Minimum 1500Vrms isolation per IEEE 802.3 requirement

ROHS-6 peak wave solder temperature rating 230℃

Operating temperarure range :-40℃ to +85℃

Storage temperature range :-40℃ to +85℃

RJ45 Without Transformer (TM611Q31ARX-3.0) Attributes:

Model Number TM611Q31ARX-3.0
LENGTH 25.78mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD FU'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN/OR,RIGHT YELLOW
NUMBER OF PORTS 2X1
NUMBER OF CONTACTS 12
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS NO
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN

RJ45 Female Connector (TM611Q31ARX-3.0) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

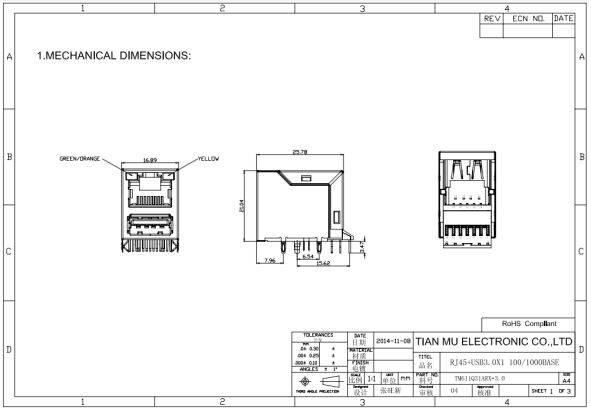

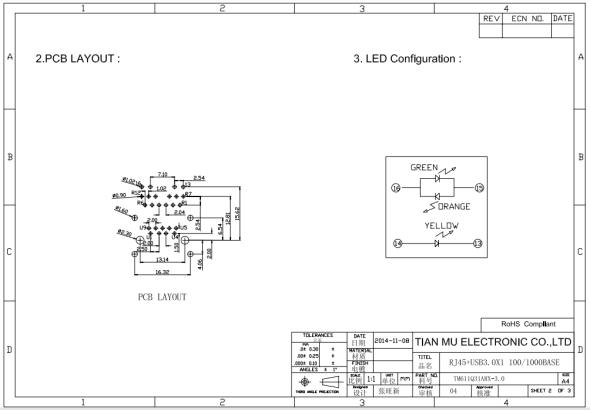

RJ45 Female Connector (TM611Q31ARX-3.0) Mechnical Drawing:

Black Rj45 Single Port / Rj45 Modular Socket 25.78mm Length Tm611q31arx-3.0Black Rj45 Single Port / Rj45 Modular Socket 25.78mm Length Tm611q31arx-3.0Black Rj45 Single Port / Rj45 Modular Socket 25.78mm Length Tm611q31arx-3.0
