Specifications
Brand Name :
TM
Model Number :
TM56S211SXX41
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
15 Days
Packaging Details :
180pcs/tray,1440pcs/carton
Product Type  :
RJ11 Modular Connector
Jack Type :
RJ11
Number of Positions :
4
Terminals per Port :
4
LED Option :
No
Shielded EMI Tabs :
No
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
1pcs
Package :
180pcs/tray,1440pcs/carton
Description

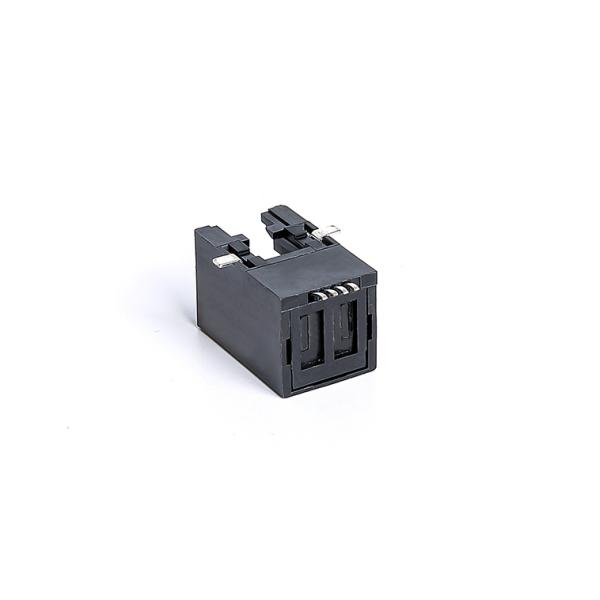

FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down Right Angle TM56S211SXX41

Materials:

Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No.
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
1 x 1 Port / Single Port / SMT Port
Connector Length: 18.1 mm
Connector Width: 11.20 mm
Connector Height: 11.50 mm
Termimal Solder Pin Length: 2.5 mm
4P4C ( 4 positions 4 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ11 Without Transformer (TM56S211SXX41) Attributes:
Model: TM56S211SXX41
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 4
Terminals per Port: 4
LED Option: NO
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 180pcs/tray,1440pcs/carton
Carton size: 35*35*40cm
Delivery Time: 20 Days
Supply Ability: 5KK/year

RJ11 Female Connector () Mechnical Drawing:
