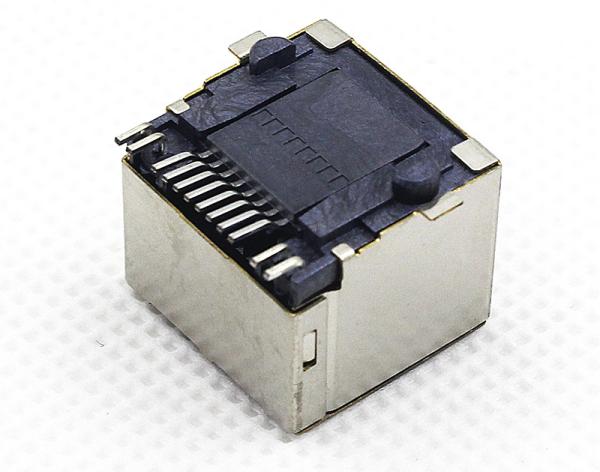

1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
Specifications
Brand Name :
TM
Model Number :
TM5JS811EX115
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
15 Days
Packaging Details :
100pcs/tray
Product Type  :
RJ45 Modular Connector
Jack Type :
RJ45
Number of Positions :
8
Terminals per Port :
8
LED Option :
LEFT GN,RIGHT YE
Shielded EMI Tabs :
No
Voltage rating :
No
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
500pcs
Package :
100pcs/tray
Description

Tab Up Shielded 1x1 Port 8P8C RJ45 Female Connector With LEDs TM5JS811EX115

Materials:


Housing : LCP,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Up
Connector Length: 15.5 mm
Connector Width: 16.45 mm
Connector Height: 13.40 mm
Connector Peg Height: 1.3 mm
Termimal Solder Pin Length: 1.0 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With L-Yellow/R-green, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer ( Attributes:

Model: TM5JS811EX115
Place of Origin: Guangdong of China
Certification: UL,Rohs,TM5JS811EX115)Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: L-Yellow/R-Green
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 900pcs
Package: 180pcs/tray,900pcs/carton
Carton size: 39*39*34.5cm
Delivery Time: 20 Days
Payment Terms:
Supply Ability: 5KK/year

RJ45 Female Connector (TM5JS811EX115) Mechnical Drawing:
