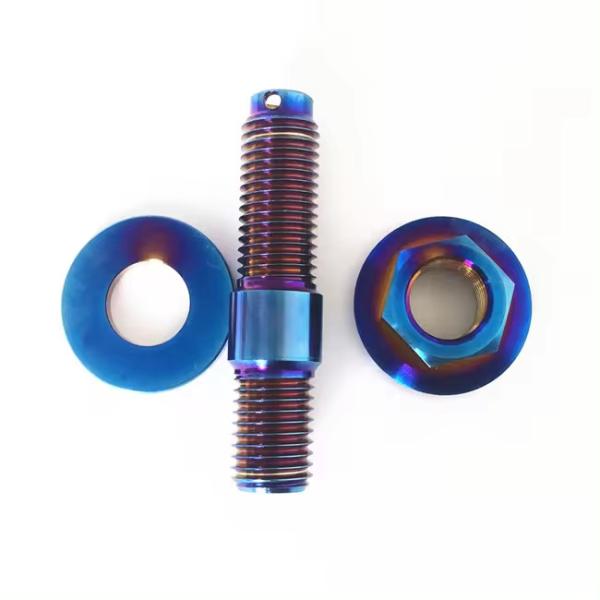

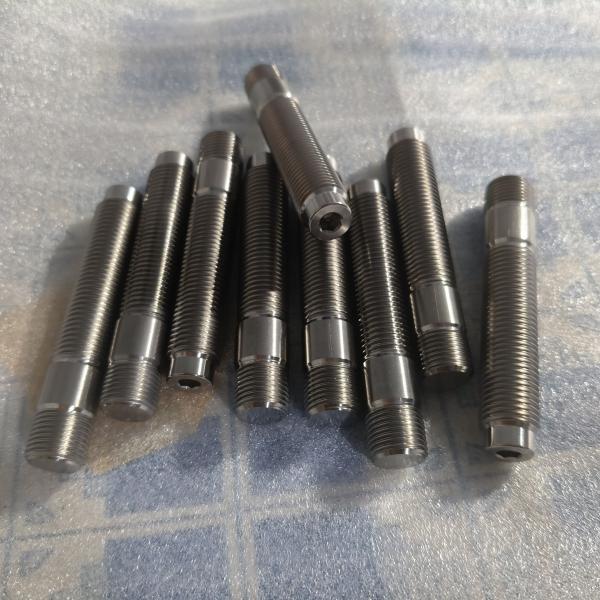

M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
Specifications
Brand Name :
Changsheng
Model Number :
DIN
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
300PC
Price :
0.5USD/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000t/month
Delivery Time :
7-10 days
Packaging Details :
packed with CARTOON BOX
Materials :
Titanium and titanium alloy
Grade :
Grade 1,Grade 5, ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11
Size :
Various sizes available
Surface :
Polished, Pickling
MOQ :
300PC
Color :
silver, black,gold,purple,green.rainbow,blue
Technical :
CNC,Stamping
Warranty :
5years
Package :
Packed with standard expot carton box
Head Type :
slotted cheese head
Usage :
Industrial
Surface Treatment :
Satin, Polish, etc
Weight :
About 2g/piece
Pitch :
1.25, 1.5
Purity :
99.5% min
Lead Time :
15days
Specification :
GB/T5782-2000
Powder Or Not :
Not Powder
Total Length :
80mm
Description

Description

Titanium slotted head bolts are strong, lightweight, and corrosion-resistant fasteners suitable for demanding applications. They are widely used in aerospace and automotive industries where both strength and weight reduction are critical.
Additionally, titanium slotted head screws are commonly utilised in marine, medical, and industrial equipment due to their superior corrosion resistance and biocompatibility.

These bolts are available in a variety of standards, grades, sizes, and colours to meet diverse engineering requirements.

Standards

DIN 963 – Titanium Slotted Countersunk Head Bolt

DIN 85 – Titanium Slotted Pan Head Bolt

DIN 84 – Titanium Slotted Cheese Head Bolt

Specifications

Item Description
Size M1 – M20 (custom sizes available)
Color Options Natural titanium, gold, blue, purple, black, rainbow
Surface Finish Polished or anodised
Head Type Slotted head
Thread Type Metric coarse or fine
Standard DIN963 / DIN85 / DIN84

Available Grades

Grade Description
Gr1 Pure titanium, excellent ductility and corrosion resistance
Gr2 (R50400) Commercially pure titanium with balanced strength and formability
Gr5 (Ti-6Al-4V, R56400) High strength, most commonly used titanium alloy
Gr7 (R52400) Titanium alloy containing Pd for enhanced corrosion resistance
Gr23 (Ti-6Al-4V ELI, RS6401) Extra-low interstitial alloy for superior toughness and biocompatibility

Physical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10

Chemical Composition (wt%)

Grade Fe O N C H Pd Al V Mo Ti
Gr1 0.20 0.18 0.03 0.08 0.015 – – – – Balance
Gr2 0.30 0.25 0.03 0.08 0.015 – – – – Balance
Gr4 0.50 0.40 0.05 0.08 0.015 – – – – Balance
Gr5 0.40 0.20 0.05 0.08 0.015 – 5.5–6.7 3.5–4.5 – Balance
Gr7 0.30 0.25 0.03 0.08 0.015 0.12–0.25 – – – Balance
Gr9 0.25 0.15 0.03 0.08 0.015 – 2.5–3.5 2.0–3.0 – Balance
Gr12 0.30 0.25 0.03 0.08 0.015 – 0.6–0.9 0.2–0.4 – Balance
Gr23 0.25 0.03 0.03 0.08 0.0125 – 5.5–6.5 3.5–4.5 – Balance

Advantages

  1. High Specific Strength
    With a density of only 4.51 g/cm³, titanium is lighter than steel yet significantly stronger.

  2. Excellent Corrosion Resistance
    Titanium and its alloys perform exceptionally well in a wide variety of corrosive environments, including seawater and chemical media.

  3. Outstanding Heat and Low-Temperature Resistance
    Titanium slotted head bolts maintain their performance from −250 °C to 600 °C without deformation.

  4. Non-Magnetic and Non-Toxic
    Titanium is non-magnetic and biocompatible, making it ideal for medical and electronic applications.

  5. Superior Damping Properties
    Titanium’s long vibration attenuation makes it suitable for acoustic, ultrasonic, and precision applications.

Applications

Aerospace and automotive fasteners

Marine engineering and shipbuilding

Chemical processing equipment

Medical implants and devices

Electronics and instrumentation

Industrial and architectural components
