Specifications
Brand Name :
CSTY
Model Number :
Gr5
Certification :
GB/T19001-2016/ISO9001:2015
Place of Origin :
CHINA
MOQ :
200pcs
Price :
$35.00 - $125.00/ kg
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000 pieces per Month
Delivery Time :
15~20 work days
Packaging Details :
wooden case,carton Packaging can be according to customer requirements.
Lead Time :
15days
Technics :
CNC machine screwing
Specification :
GB/T5782-2000
Custom Size :
workable
Corrosion Resistance :
High
Versatile :
Yes
Dimensions :
M3-M24 or customised
Type :
Screws, Bolts, Nuts, Washers, etc.
Size :
Various sizes available
Drive Type :
Phillips, Slotted, Torx, Hex, Square
Packing :
As buyer's requirement
Item Name :
Custom Titanium Parts
Standard :
All standard and accept customized
Low Thermal Conductivity :
Yes
Material :
Gr.5
Description

Introduction

Titanium alloy has the advantages of being lightweight, having high specific strength, and good corrosion resistance, so it is widely used in the automotive industry, the most commonly used titanium alloy bolts in the automotive engine system. There are many advantages to using titanium bolts to make engine parts. So they are widely used in various fields.

Specification

Product name Titanium fasteners/Hardware
Material Pure Titanium, Titanium Alloy
Grade Gr5 (Ti-6AL-4V)/Gr2/Gr7/Gr9
Specification Size: M3-M50, Length 6~300mm Supply non-standard and special size according to customer's
Surface Polished, Anodizing, PVD coating
Color black/gray/white/yellow/ red etc.
logo Can be customized as customers’ requirements.
Applications Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheelchair, sports, anchor, weapon, etc

Mechanical properties

Thread Rolled thread for better fatigue resistance and to avoid galling, instead of a cut thread.
Tensile strength Heat treated to 895MPa~1000MPa
Yield strength 828Mpa~925Mpa (126,000psi~134,000psi)
Hardness 30 HRC-40HRC
Shear strength 500Mpa~550Mpa
Elongation 14%~18%
Working temp Up to 500°c

Product photo

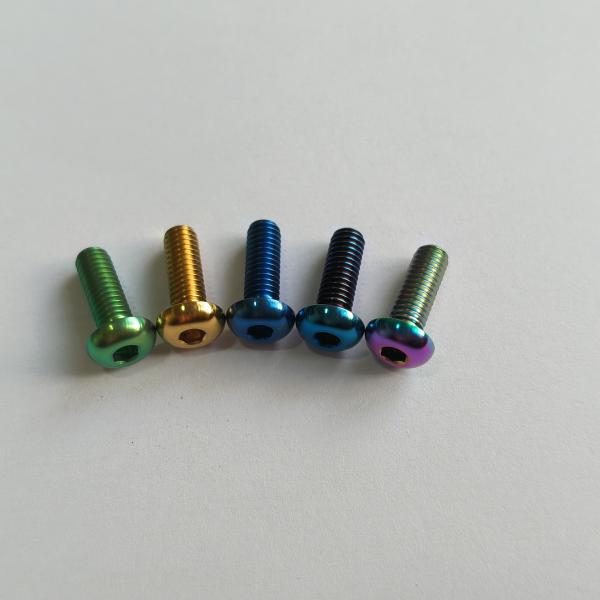

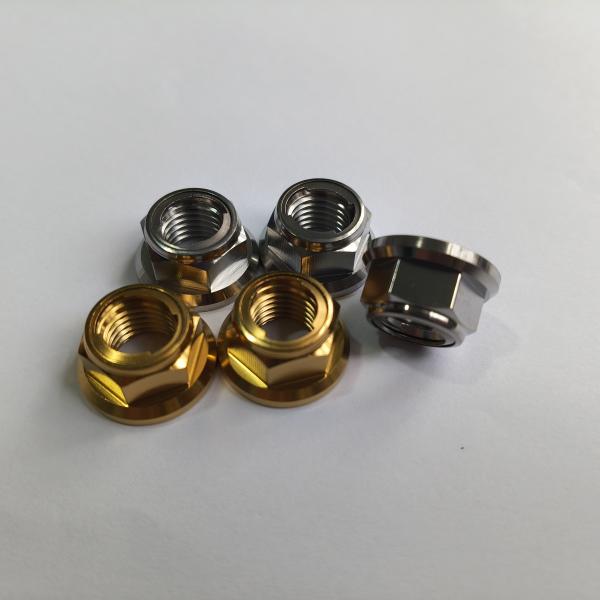

Gr5 Titanium Bolts And Nuts Customized PVD Anodized Color Laser Marking.

Why will car hub bolts not loosen during driving?

Automobile hub bolts are not loose, mainly because when the tire and hub are connected by bolts, there is a certain friction between the bolt and the nut, and this friction can effectively prevent the bolt from loosening. In addition, when the car is driving, the relative movement between the bolt and the nut produces an inward force, which further enhances the fastness of the bolt.

Application

1. Aerospace field: The lightweight, high-strength, high corrosion resistance, and other characteristics of titanium alloy screws make them widely used in the aerospace field, such as the assembly of aircraft engines, aircraft seats, aircraft fuselage, and other components.

2. Medical field: titanium alloy screws have the advantages of good biocompatibility and are not easy to produce allergic reactions, so they can be used in the medical field, such as implants, bone nails, and other medical devices.

3. Sports equipment field: The high strength and lightweight of titanium alloy screws make them suitable for manufacturing high-end sports equipment, such as golf clubs, bicycles, and so on.

4. Electronic products: The high strength and good corrosion resistance of titanium alloy screws make them widely used in the field of electronic products, such as the assembly of mobile phones, tablets, and other electronic products.

FRQ

Commercial CE SAA ROHS Certificate Outdoor IP65 Waterproof 20W 30W 50W 100W 200W 12V LED Flood Lights

Q1. Can I have a sample order for an LED light?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparation,8-10 working days for mass production.

Q3. Do you have any MOQ limit for LED light orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods, and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How do I proceed with an order for an LED light?

A: Firstly, let us know your requirements or application.

Secondly, we will quote according to your requirements or our suggestions.

Thirdly, the customer confirms the samples and places a deposit for a formal order.

Fourthly, we arrange the production.

Q6. Is it OK to print my logo on an LED light product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer a guarantee for the products?

A: Yes, we offer 5-year warranty on our products.

Q8: How to deal with the fault?

A: Firstly, our products are produced in a strict quality control system, and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair them and resend them to you, or we can discuss the solutio,n including re-call according to the real situation.
