No.

name

Spray booth

1

Outsidesize

7000*5200*3650mm

2

Insidesize

6900"4000"2800mm

3

Inletfan

1unit5.5kwDKFfan

4

Outletfan

1unit5.5kwDKFfan

5

Frontdoor

3000"3000mm

6

Sidedoor

800*2000mm

7

Heatingsystem

3kw*10setselectricheating

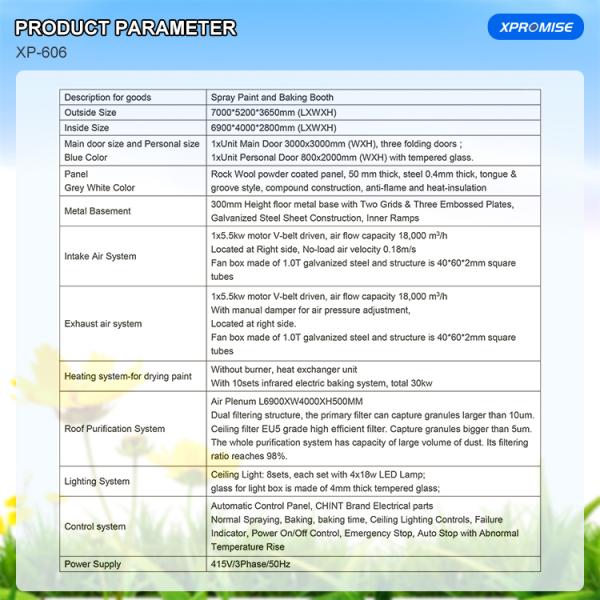

Description for goods

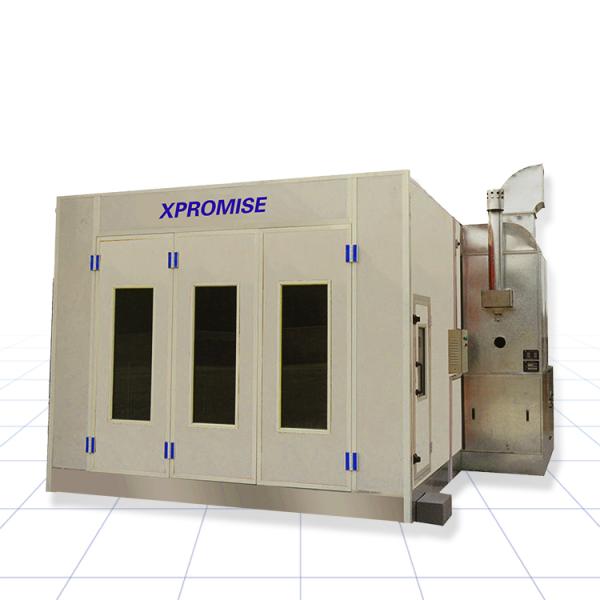

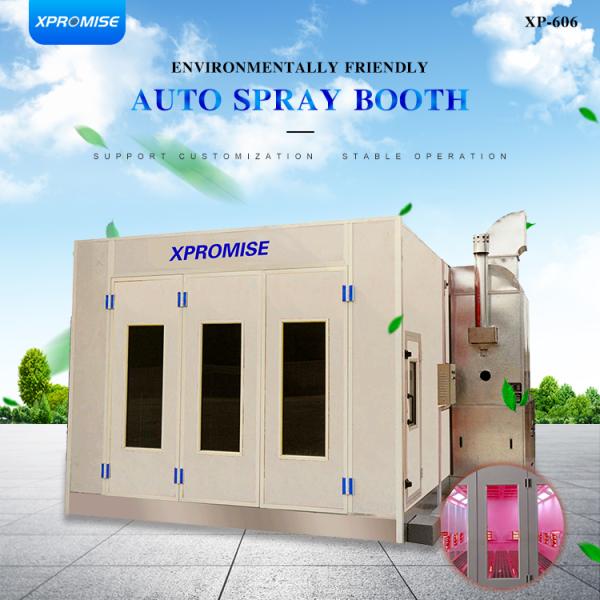

Spray Paint and Baking Booth

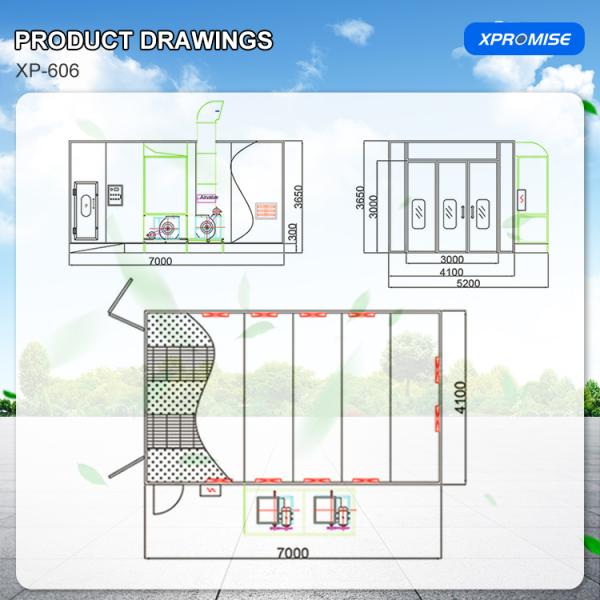

Outside Size

7000*5200*3650mm (LXWXH)

Inside Size

6900*4000*2800mm (LXWXH)

Main door size and Personal size

Blue Color

1xUnit Main Door 3000x3000mm (WXH), three folding doors;

1xUnit Personal Door 800x2000mm (WXH) with tempered glass

Panel

Grey White Color

Rock Wool powder coated panel, 50 mm thick, steel 0.4mm thick, tongue & groove style, compound construction,anti-flame and heat-insulation

Metal Basement

300mm Height floor metal base with Two Grids & Three Embossed Plates, Galvanized Steel Sheet Construction, Inner Ramps

Intake Air System

1x5.5kw motor V-belt driven, air flow capacity 18,000 m3/h

Located at Right side, No-load air velocity 0.18m/s

Fan box made of 1.0T galvanized steel and structure is 40"60"2mm square tubes

Exhaust air system

1x5.5kw motor V-belt driven, air flow capacity 18,000 m3/h

With manual damper for air pressure adjustment,

Located at right side.

Fan box made of 1.0T galvanized steel and structure is 40*60*2mm square tubes

Heating system-for drying paint

Without burner, heat exchanger unit

With 10sets infrared electric baking system, total 30kw

Roof Purification System

Air Plenum L6900XW4000XH500MM

Dual filtering structure, the primary filter can capture granules larger than 10um.

Ceiling filter EU5 grade high efficient filter. Capture granules bigger than 5um.

The whole purification system has capacity of large volume of dust. Its filtering ratio reaches 98%

Lighting System

Ceiling Light: 8sets, each set with 4x18w LED Lamp;

glass for light box is made of 4mm thick tempered glass;

Control system

Automatic Control Panel, CHINT Brand Electrical parts

Normal Spraying, Baking, baking time, Ceiling Lighting Controls, Failure

Indicator, Power On/Off Control, Emergency Stop, Auto Stop with Abnormal

Temperature Rise

Power Supply

415V/3Phase/50Hz
