Outside size (m)

7*5.4*3.42m(LW"H)

Inside size (m)

9*3.9*2.7m(LWH)

Wall panel

Color

Optional: gray, white, blue, red

Material

Rock wool density: 120kg. Thickness: 50mm

Color steel plate

Thickness: 0.426mm

Structure

Strengthen structure, reduce deformation improve wind pressure resistance double-sided film

One side

Use 8mm tempered glass, with heat insulation and explosion-proof film on one side. 360°viewable

Door

Size

3000(W2600(H)

Structure

Use 0.8mm zinc plate, steel frame welding to ensure strength; door hinge uses 6mm steel plate to ensure no deformation or sagging, 5mm square tempered glass observation window is set

Color

Optional: gray, white, blue, red

Safety door

+ small steps

1800 x 600 (mm), 1 aluminum alloy door

Lighting system

LED

(2) side x (4) group x (4) branch, (18) W/ branch Using LED it works normally when the power is as low as 180 volts.

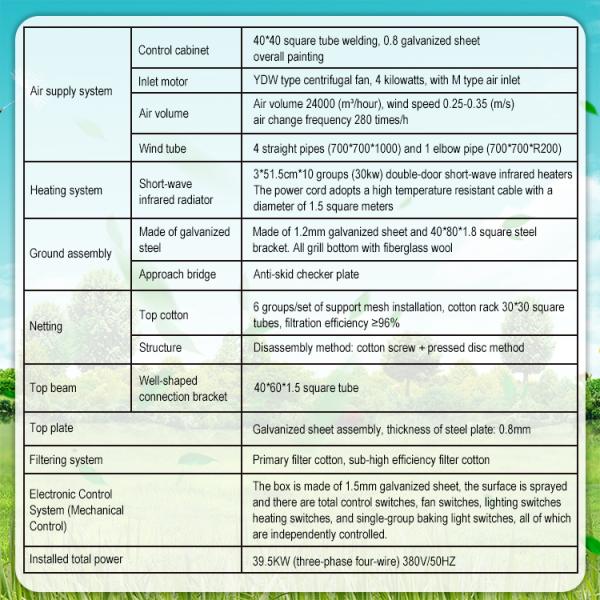

Air supply system

Control cabinet

40*40 square tube welding.0.8 galvanized sheet overall painting

Inlet motor

YDW type centrifugal fan, 4 kilowatts, with M type air inlet

Air volume

Air volume 24000 (m3/hour),wind speed 0.25-0.35 (m/s air change frequency 280 times/h

Wind tube

4 straight pipes (7007001000) and 1 elbow pipe (700700"R200)

Heating system

Short-wave infrared radiator

3*51.5cm*10 groups (30kw) double-door short-wave infrared heaters The power cord adopts a high temperature resistant cable with a diameter of 1.5 square meters

Ground assembly

Made of galvanized steel

Made of 1.2mm galvanized sheet and 40"80"1.8 square steel bracket.All grill bottom with fiberglass wool

Approach bridge

Anti-skid checker plate

Netting

Top cotton

6 groups/set of support mesh installation, cotton rack 30*30 square tubes, filtration efficiency ≥96%.

Structure

Disassembly method: cotton screw + pressed disc method

Top beam

Well-shaped connection bracket

40*60*1.5 square tube

Top plate

Galvanized sheet assembly, thickness of steel plate: 0.8mm

Filtering system

Primary filter cotton, sub-high efficiency filter cotton

Electronic ControlSystem (MechanicalControl)

The box is made of 1.5mm galvanized sheet the surface is sprayed and there are total control switches, fan switches, lighting switches heating switches, and single-group baking light switches, all of which are independently controlled.

Installed total power

39.5KW (three-phase four-wire) 380V/50H2
