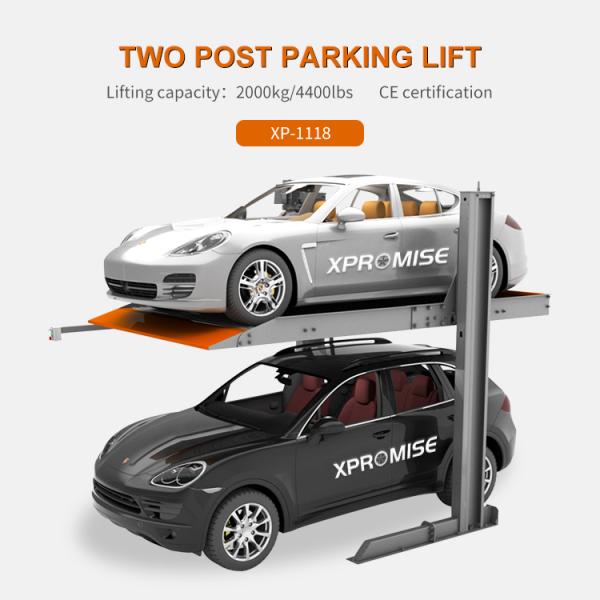

TWO POST PARKING LIFT

Lifting capacity: 2000kg/4400lbs

CE certification

XP-1118

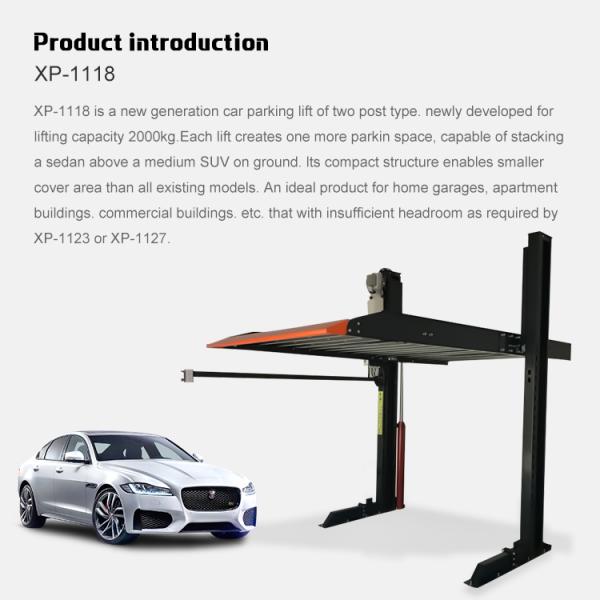

Product introduction

HE-1118 is a new generation car parking lift of two post type. newly developed for lifting capacity 2000kg.Each lift creates one more parkin space, capable of stacking a sedan above a medium SUV on ground. Its compact structure enables smaller cover area than all existing models. An ideal product for home garages, apartment buildings. commercial buildings. etc. that with insufficient headroom as required by HE-1123 or HE-1127.

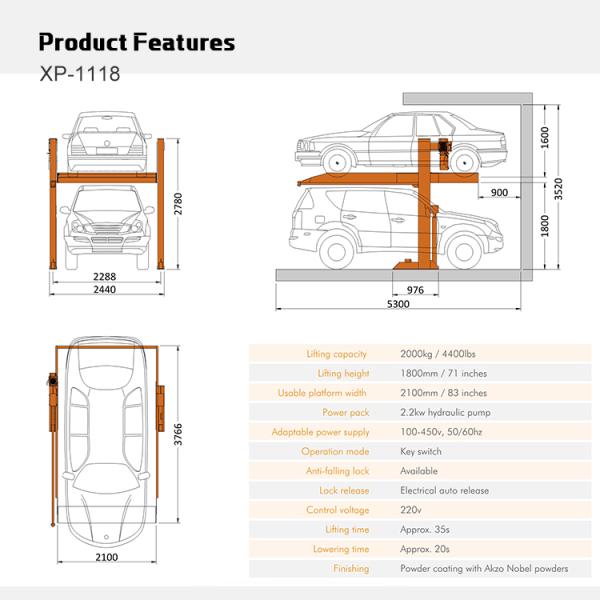

Product Features

1.For dependent parking.

2.Galvanized platform sheets with high rust resistance performance.

3.Each lift offers 2 car spaces

4.Required headroom: 3520mm.

5.Bolts & nuts withstand 72hrs Salt Spray Test.

6.Lifting capacity 2000kg.

7.Driven by hydraulic cylinder + Korean lifting chain.

8.Platform width 2100mm.

9.Synchronizing chain keeps platform level during working under all conditions.

10.Ground car height 1700mm.

11.Standard upper car height 1550mm.

12.Premier surface treatment of power coating enhanced by Akzo Nobel powders.

13.New locking mechanism with superior safety & stability.

14.Easier operation with electric auto release function.

15.Proven quality compliant to CE standards.

Notes

Scope of application

Suitable for residential buildings, office buildings and business premises, hotels

Only for long-term users that have been instructed on how to use the system

For frequently changing users (e.g. for office,hotel and business premises or similar)

- only parking on ground level

- performance of technical system adjustments in necessary

Noise protection

Insulation figure of the construction of min. Rw = 57 dB

Walls which are bordering the parking systems must be done as single wall and deflection resistant with min. m =300 kg/ m2

Solid ceiling above the parking systems with min. m = 400 kg/ m

At differing constructional conditions additional sound absorbing measures are to be provided by the customer

The best results are reached by separated sole plates from the construction.

Electrical installation preparation

Cabling preparation to be performed by the customer:

- Up to the main switch to be in place prior to starting the installation operations

- Connection to the main switch during installation

- System functional check testing can be performed by the electrician provided by the customer

Grounding and potentialequalization:

- To be performed by the customer compliant to local regulations

- Connections required every 10 meters

Protection against corrosion

Independent of a maintenance workings has to be carried out according to ourCleaning andMaintenance Instruction regularly.

Clean up galvanized parts and platforms of dirt and road salt as well as other pollution (corrosion danger)!

Temperature

The installation is designed to operate between +5°and +40°C.Atmospheric Humidity: 50% at +40°C.If the local circumstances differ from the above please contact our company

Fire safety

Each and every fire safety requirement and all possible mandatory item(s) and equipment(s) (fire extinguishing systems and fire alarm systems, etc.) are to be provided by the customer.

Parking

- Drive the car backward onto the appropriate position of the platform.Collision with the control arm and side beams shall be avoided.

- Put the brake on after vehicle parked on the targeted position to avoid any accidental movement

- Open the car door carefully to avoid any collision.Pay attention to the waving plates and side beams in case any falling down of person

- Turning UP to lift the car to the appropriate position, and the platform will be locked automatically.

- Before another vehicle parked under platform, please check and make sure the nether vehicle is lower than platform height, to avoid any damage.

Railings

If walkways are arranged directly to the side or behind the systems, railings have to be provided acc.EN ISO 13857 by client acc.to local requirements, height min. 200cm.

Maintenance

Do lubrication on guide rail and guide pulley once per month.

Do lubrication on balance chain once per month.

Change all the hydraulic oil three months after first operation;and change oil every nine months after first changing.

Frequently check the screw nuts of bolts fixing the electromagnet and locking plate, if any screw nut is loosening please fasten it asap.

If any noise comes out from electromagnet, please replace it asap

The seal in hydraulic cylinder should be replaced every two years.

The roller and sliding block should be replaced every two years.

The valve element in solenoid valve and filter in power unit should be cleaned every half year.

Before operation, please check the connector of electromagnet if it´s loosening please fasten it;then do testing on top limit switch andphotocell sensor, if it cannot work please fix the problem, and if cannot fix it please replace it.
