Specifications
Brand Name :
XPROMISE
Model Number :
XP-1123
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Supply Ability :
2000pcs /1 week
Delivery Time :
7 work days
Description

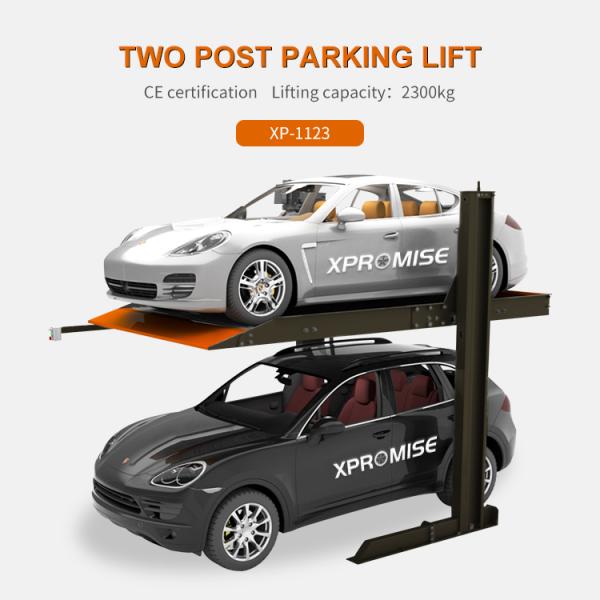

TWO POST PARKING LIFT

Lifting capacity: 2300kg

CE certification

XP-1123

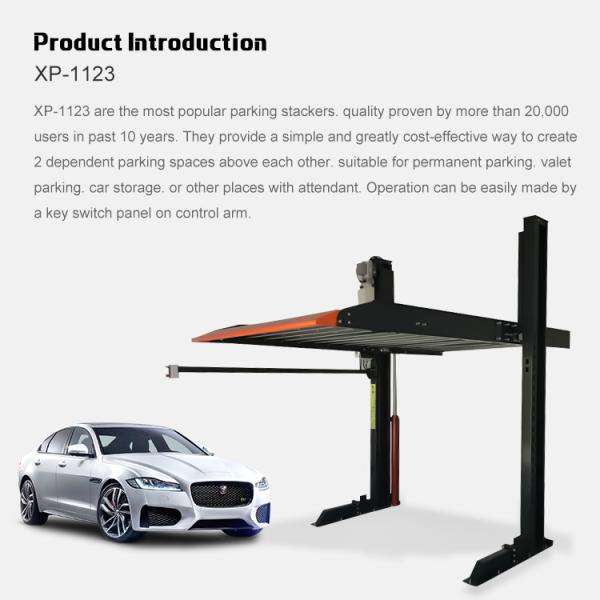

Product introduction

HE-1123 are the most popular parking stackers. quality proven by more than 20,000 users in past 10 years. They provide a simple and greatly cost-effective way to create 2 dependent parking spaces above each other. suitable for permanent parking. valet parking. car storage. or other places with attendant. Operation can be easily made by a key switch panel on control arm.

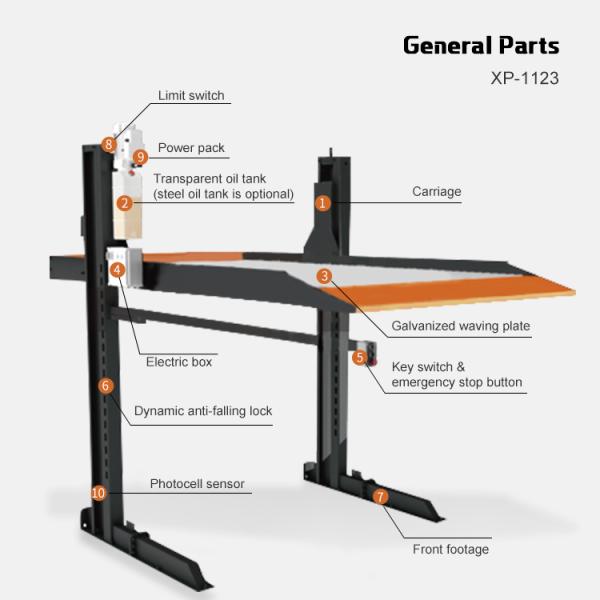

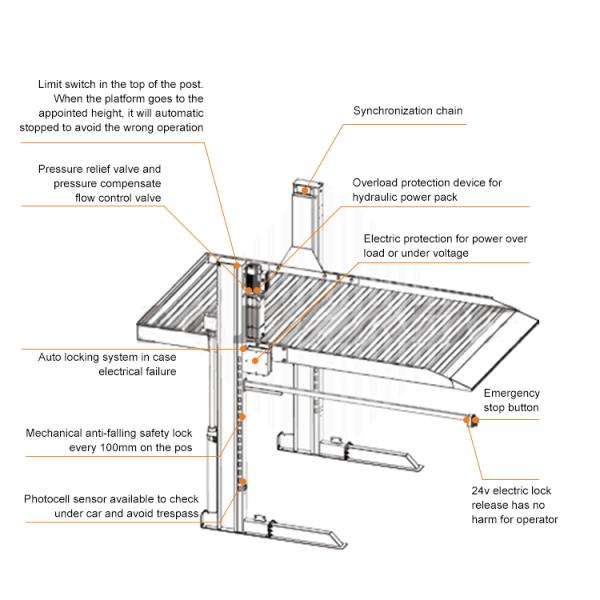

Product Features

1.Lifting capacity 2300kg

2.Car heights on ground up to 2050mm.

Platform width up to 2500mm

Lifting height adjustable by limit switch

Electric auto lock release enables easier operation

24V control voltage avoids electric shock

Galvanized platform, high-heel friendly

Bolts & nuts passing 48hrs Salt Spray Test.

Driven by hydraulic cylinder + Korean lifting chain

Synchronization chain keeps platform level under all conditions

Akzo Nobel powder coating provides long lasting superficial protection

Proven high end quality with CE certificate tested by TUV

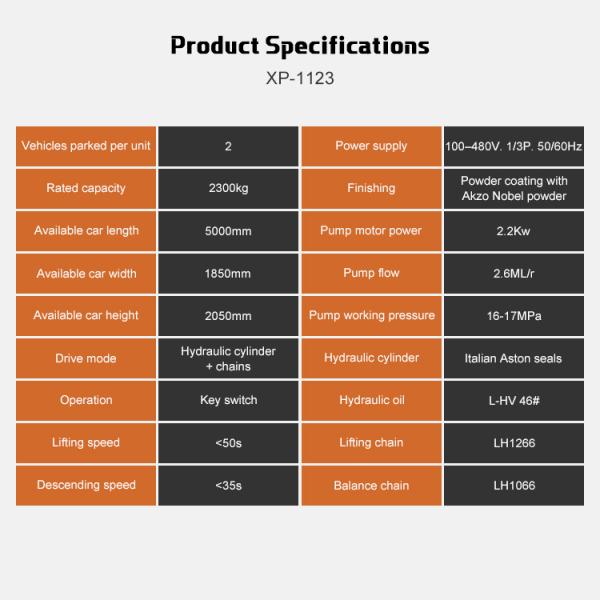

Vehicles parked per unit

2

Power supply

100-480V. 1/3P. 50/60Hz

Rated capacity

2300kg

Finishing

Power coating with Akzo Nobel powder

Available car length

5000mm

Pump motor power

2.2Kw

Available car width

1850mm

Pump flow

2.6ML/r

Available car height

2050mm

Pump working pressure

16-17MPa

Drive mode

Hydraulic cylinder+chains

Hydraulic cylinder

Italian Aston seals

Operation

Key switch

Hydraulic oil

L-HV 46#

Liftingspeed

<50s

Lifting chain

LH1266

Descending speed

>35s

Balance chain

LH1066

Product Dimensions

Clear platform width of 2100 mm for car widths of 1850 mm. For large touring sedans we recommend a clear platform width of at least 2300-2500 mm.

According to ISO 3864 the floor has to be marked with 100 mm wide yellow-black at a distance of 500 mm from the platform edge by the purchaser (to be performed according to local regulations.)

The lowering speed of an empty platform is considerably lower than a loaded one.

It is not possible to have channels or undercuts and/or concrete haunches along the floor-to-wall joints. It the event that channels or undercuts are necessary, the system width needs to be reduced or the installation width needs to be wider.

The manufacturer reserve the right to construction or model modifications and/or alterations.

Furthermore, the right to any subsequent part modification and/or variations and amendments in procedures and standards due to technical and engineering progresses in the art or due to environmental regulation changes, are also hereby reserved.

Width Calculation

Unit A

Total width required

Clear platform width

2547

2100

2647

2200

2747

2300

2847

2400

2947

2500

Unit A+B

Total width required

Clear platform width

4929

2100

5129

2200

5329

2300

5529

2400

5729

2500

Unit A+B+B

Total width required

Clear platform width

7311

2100

7611

2200

7911

2300

8211

2400

8511

2500

Notes

Scope of application

Suitable for residential buildings, office buildings and business premises, hotels

Only for long-term users that have been instructed on how to use the system

For frequently changing users (e.g. for office,hotel and business premises or similar)

- only parking on ground level

- performance of technical system adjustments in necessary

Noise protection

Insulation figure of the construction of min. Rw = 57 dB

Walls which are bordering the parking systems must be done as single wall and deflection resistant with min. m =300 kg/ m2

Solid ceiling above the parking systems with min. m = 400 kg/ m

At differing constructional conditions additional sound absorbing measures are to be provided by the customer

The best results are reached by separated sole plates from the construction.

Electrical installation preparation

Cabling preparation to be performed by the customer:

- Up to the main switch to be in place prior to starting the installation operations

- Connection to the main switch during installation

- System functional check testing can be performed by the electrician provided by the customer

Grounding and potentialequalization:

- To be performed by the customer compliant to local regulations

- Connections required every 10 meters

Protection against corrosion

Independent of a maintenance workings has to be carried out according to ourCleaning andMaintenance Instruction regularly.

Clean up galvanized parts and platforms of dirt and road salt as well as other pollution (corrosion danger)!

Temperature

The installation is designed to operate between +5°and +40°C.Atmospheric Humidity: 50% at +40°C.If the local circumstances differ from the above please contact our company

Fire safety

Each and every fire safety requirement and all possible mandatory item(s) and equipment(s) (fire extinguishing systems and fire alarm systems, etc.) are to be provided by the customer.

Parking

- Drive the car backward onto the appropriate position of the platform.Collision with the control arm and side beams shall be avoided.

- Put the brake on after vehicle parked on the targeted position to avoid any accidental movement

- Open the car door carefully to avoid any collision.Pay attention to the waving plates and side beams in case any falling down of person

- Turning UP to lift the car to the appropriate position, and the platform will be locked automatically.

- Before another vehicle parked under platform, please check and make sure the nether vehicle is lower than platform height, to avoid any damage.

Railings

If walkways are arranged directly to the side or behind the systems, railings have to be provided acc.EN ISO 13857 by client acc.to local requirements, height min. 200cm.

Maintenance

Do lubrication on guide rail and guide pulley once per month.

Do lubrication on balance chain once per month.

Change all the hydraulic oil three months after first operation;and change oil every nine months after first changing.

Frequently check the screw nuts of bolts fixing the electromagnet and locking plate, if any screw nut is loosening please fasten it asap.

If any noise comes out from electromagnet, please replace it asap

The seal in hydraulic cylinder should be replaced every two years.

The roller and sliding block should be replaced every two years.

The valve element in solenoid valve and filter in power unit should be cleaned every half year.

Before operation, please check the connector of electromagnet if it's loosening please fasten it;then do testing on top limit switch andphotocell sensor, if it cannot work please fix the problem, and if cannot fix it please replace it.
