Two Piece Pneumatic Forging Power Hammer for Versatile Forging Applications
Two Piece Pneumatic Forging Power Hammer for Versatile Forging Applications
Two Piece Pneumatic Forging Power Hammer for Versatile Forging Applications
Two Piece Pneumatic Forging Power Hammer for Versatile Forging Applications
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC
Condition :
New
Machine Type :
Pneumatic Hammer
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Motor, Pressure vessel
Warranty :
1 Year
Key Selling Points :
Long Service Life
Showroom Location :
Brazil, Saudi Arabia
Applicable Industries :
Manufacturing Plant
pneumatic hammer :
pneumatic hammer
After-sales Service Provided :
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
France, Germany
Weight :
2000kg
Packaging Details :
Wooden case(can be fumigated)
Port :
China port
Supply Ability :
500 Set/Sets per Month
Price :
$19,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

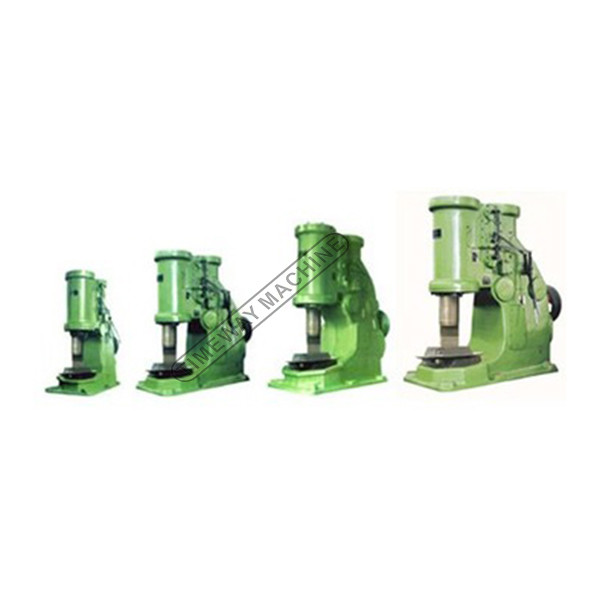

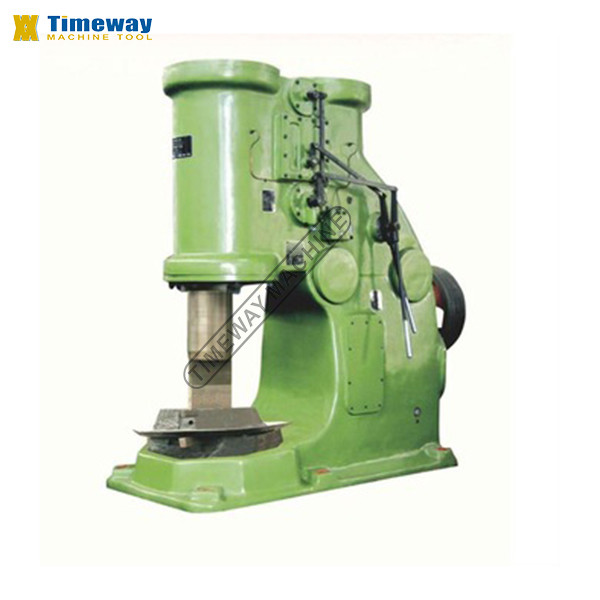

Two Piece Pneumatic Forging Hammer

Applications:

This pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forging in bolster dies.

Features:

*Ready operation: economic and convenient

*Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired

*A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.

The main technical parameter two pieces pneumatic forging hammer:

Model

AH-150

AH-250

AH-400

AH-560

AH-750

AH-1000

AH-2000

Weight of falling parts (kg) )

150

250

400

560

750

1000

2000

Maximum hit energy(kj)

2.5

5.6

9.5

13.7

19

27

54

Hit number(min-1)

180

140

120

115

105

95

80

Heigh of working area (mm)

370

450

530

600

670

800

1000

Tup axis to frame front (mm)

350

420

520

550

750

770

950

Dimension of top die surface(L x W) (mm)

200x85

220x100

250x120

300x140

330x160

365x180

400x300

Dimension of bottom die surface(L x W) (mm)

200x85

220x100

250x120

300x140

330x160

365x180

400x300

Forges

Square(mmxmm)

130x130

145x145

220x220

270x270

270x270

290x290

350x350

Round(mm)

Φ145

Φ175

Φ240

Φ280

Φ300

Φ320

Φ400

Motor

Type

Y180M-4-B3

Y180L-4-B3

Y200L-4-B3

Y280S-6-B3

Y280M-6-B3

Y315S-6-B3

Y315L2-6-B3

Power(kw)

18.5

22

30

45

55

75

132

Weight

Hammer(kg)

3260

5000

8000

9800

17000

20000

48000

Anvil block(kg)

1500

2500

4800

6720

9000

13000

24000

Outside Size

2390x1085x2150

2639x1155x2540

2785x1400x2884

3464x1500x3157

3905x1370x3175

4125x1500x3770

4200x2300x4390
