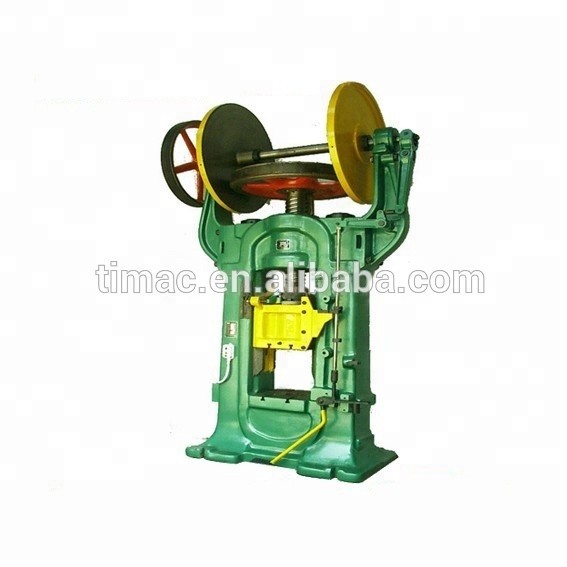

Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC
Condition :
New
Machine Type :
Friction Screw Press
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Gearbox, Motor
Voltage :
3 Phase 380V 10%/50-60Hz
Power :
11 kw
Dimension(L*W*H) :
1465x2240x3730 mm
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
Italy, France, Brazil, Peru, Indonesia, India, Mexico, Russia, Thailand, Chile, South Africa
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Other
Weight (KG) :
2490
Control type :
Pedal control
Nominal capacity :
1600KN
Slide stroke :
360mm
Number of strokes per minute :
17
Worktable size :
560*510mm
Space for installing die :
260mm
Machine type :
Normal friction screw press
After Warranty Service :
Field maintenance and repair service
Weight :
8186 kg
Certification :
CE ISO9001
Packaging Details :
Soft package or According to customer's require
Port :
China Port
Supply Ability :
700 Set/Sets per Year
Price :
$20,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them, model JA-53-300 has won the silver medal in china.
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Specification
Unit
FSP-63
FSP-100
FSP-160
FSP-300
Nominal capacity
KN
630
1000
1600
3000
Energy

KJ
2.25
5
10
20
Slide stroke

mm
200
310
360
400
Strokes per minute

Min-1
35
19
17
15
Space for installing die

mm
235
220
260
300
Bed dimension

mm
315x270
500x450
560x510
650x570
Bottom of slide

mm
275x227
390x280
440x444
520x485
Overall dimensions

mm
1010x1141x2655
1393x1884x3375
1465x2240x3730
1820x2581x4345
Main motor power

kw
5.5
7.5
11
22
Total weight

kw
3572
5780
8186
14800
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Why Choose Us
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Mechanical Double Disc Friction Screw Press with Pedal Device Nominal Capacity 1600KN
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
