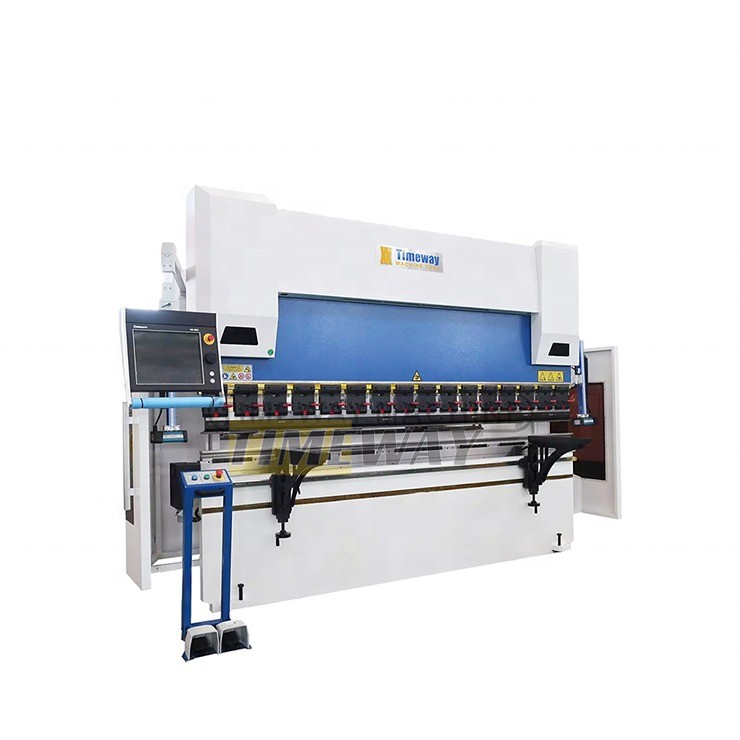

Direct Sell CNC Hydraulic Sheet Metal Bending Machine Press Brake with Weight KG 2800

Specifications

Place of Origin :

China

Brand Name :

Timeway

Condition :

New

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

New Product 2020

Warranty of core components :

1 Year

Core Components :

PLC, Motor

Warranty :

1 Year

Key Selling Points :

High Productivity

Weight (KG) :

2800

Applicable Industries :

Manufacturing Plant, Machinery Repair Shops

Showroom Location :

United Kingdom, Mexico, Russia, Thailand, Colombia, Bangladesh

Nominal pressure (KN) :

4000

Length of working table (mm) :

2000

Distance between columns (mm) :

1600

Throat depth (mm) :

250

Ram stroke (mm) :

100

Main motor power (kw) :

Machine weight :

2800

machine diemnsions :

3250*15110*3250

machine type :

cnc type

warrenty :

1 years

Packaging Details :

Wooden cases(can be fumigated)

Port :

China Port

Supply Ability :

150 Set/Sets per Month

Price :

$18,000.00/sets 1-2 sets

MOQ :

1 set

Description

Products Description

Model	Nominal pressure (KN)	Length of working table (mm)	Distance between columns (mm)	Throat depth (mm)	Ram stroke (mm)	Main motor power (kw)
WC67Y/K-40/2000	400	2000	1600	250	100	4
WC67Y/K-40/2200	400	2200	1800	250	100	4
WC67Y/K-40/2500	400	2500	2000	250	100	4
WC67Y/K-63/2500	630	2500	2000	250	120	5.5
WC67Y/K-63/3200	630	3200	2600	250	120	5.5
WC67Y/K-80/2500	800	2500	2600	250	150	5.5
WC67Y/K-80/3200	800	3200	2600	250	150	7.5
WC67Y/K-100/2500	1000	2500	2000	320	150	7.5
WC67Y/K-100/3200	1000	3200	2600	320	150	7.5
WC67Y/K-100/4000	1000	4000	3000	320	150	7.5
WC67Y/K-125/2500	1250	2500	2000	320	150	7.5
WC67Y/K-125/3200	1250	3200	2600	320	150	7.5
WC67Y/K-125/4000	1250	4000	3000	320	150	7.5
WC67Y/K-160/3200	1600	3200	2600	400	180	11
WC67Y/K-160/4000	1600	4000	3200	400	180	11
WC67Y/K-160/6000	1600	6000	4800	400	180	15
WC67Y/K-200/3200	2000	3200	2600	400	200	15
WC67Y/K-200/4000	2000	4000	3200	400	200	15
WC67Y/K-200/6000	2000	6000	4800	400	200	18.5
WC67Y/K-250/3200	2500	3200	2600	400	250	22
WC67Y/K-250/4000	2500	4000	3200	400	250	22
WC67Y/K-250/6000	2500	6000	4800	400	250	22
WC67Y/K-300/3200	3000	3200	2500	400	250	22
WC67Y/K-300/4000	3000	4000	3200	400	250	22
WC67Y/K-300/6000	3000	6000	4800	400	250	30
WC67Y/K-400/3200	4000	3200	2500	400	250	30
WC67Y/K-400/4000	4000	4000	3000	400	250	30
WC67Y/K-400/6000	4000	6000	4800	400	250	37
WC67Y/K-500/6000	5000	6000	4800	400	300	37
WC67Y/K-500/7000	5000	7000	5400	400	300	37
WC67Y/K-600/6000	6000	6000	4800	400	300	45
WC67Y/K-600/7000	6000	7000	5600	400	300	45
WC67Y/K-700/7000	7000	7000	5600	400	300	45
WC67Y/K-800/6000	8000	6000	4600	400	400	55
WC67Y/K-800/8000	8000	8000	6200	500	400	55
WC67Y/K-1000/6000	10000	6000	5600	600	500	75

Why Choose Us

Renishaw laser interferometer：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
