45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Motor
Warranty :
1 Year
Key Selling Points :
Automatic
Weight (KG) :
10000
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Other
Showroom Location :
Canada, United Kingdom, Germany, Peru, Saudi Arabia, Indonesia, Mexico, Kenya, Colombia, Algeria, South Africa
After-sales Service Provided :
Online support
After Warranty Service :
Field maintenance and repair service
Max. pull :
250 kn
Hydraulic pressure :
40 mpa
Pull and press stroke :
45 mm
Applicable main shaft diameter :
≤85 mm
External dimension :
1800x700x1100 mm
Weight :
125 kg
Warranty period :
1 year
Packaging Details :
wooden case
Port :
China Port
Supply Ability :
800 Set/Sets per Month
Price :
$7,500.00/sets 1-1 sets
MOQ :
1 set
Description
Products Description

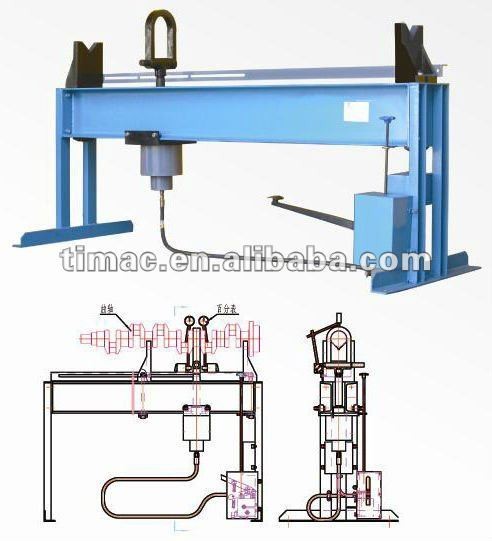

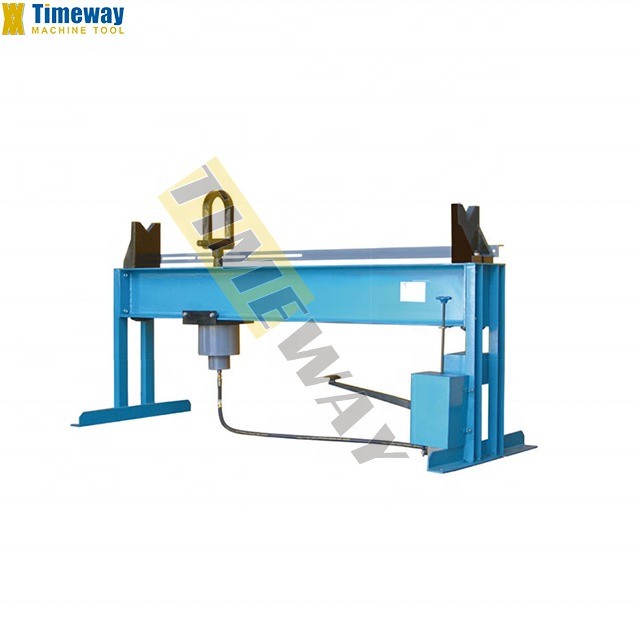

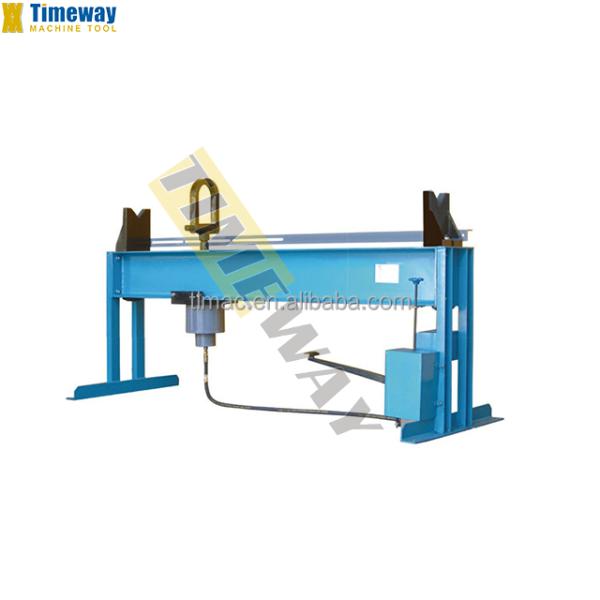

45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
Design is unique, appearance is neat.
Foot-operated hydraulic drive.
Operation is convenient, micro is controllable.
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
Specification
QJ250Y
QJ680Y
Max. pull(KN)
250
680
Hydraulic pressure(Mpa)
40
40
Pull and press stroke(mm)
45
50
Applicable main shaft diameter(mm)
≤85
≤120
External dimension(mm)
1800x700x1100
2200x750x1100
Weight(kg)
125
220
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
Why Choose Us
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
45mm Pull and Press Stroke Crankshaft Straightening Machine with Automatic Operation
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
