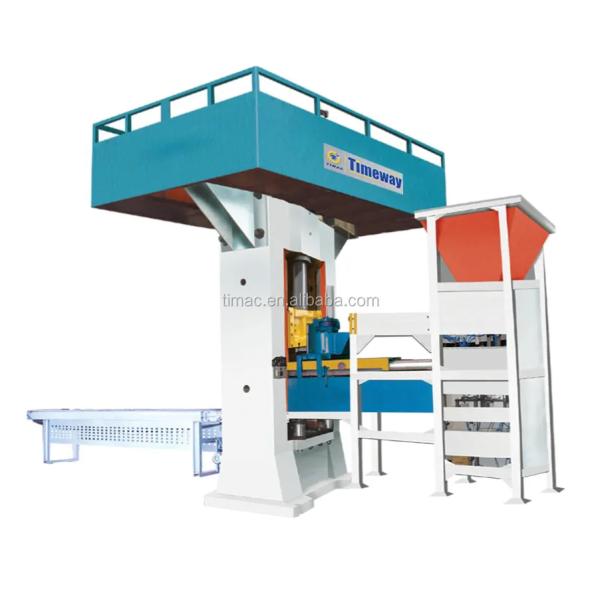

Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty :
1 Year
Key Selling Points :
High Safety Level
Weight (KG) :
116
Applicable Industries :
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining
Showroom Location :
Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Chile
Voltage :
380V/50HZ
Nominal pressure :
5000KN
Motor power :
45Kw
Worktable size :
1200*1120mm
Machine dimensions :
4000*2300*5000mm
Slide stroke :
750mm
Control system :
Servo motor drive and intellgent control system
Structure type :
Ordinary type and static pressure type
After-sales Service Provided :
Online support
color :
Customer Choose
Packaging Details :
Wooden pallet or Wood case
Port :
China Port
Supply Ability :
200 Set/Sets per Year
Price :
$100,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description
Electric Screw Press
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size

Features

1. Realization of electronic weighing, automatic loading, automatic molding, automatic brick and whole process automation. 2. One machine with one mould or multi-moulds, continuous production, only need one worker arrang and put bricks, safe and efficient. 3. This series of products have the advantages of high accuracy, high accuracy, easy operation, convenient maintenance, high production efficiency and high automation.
Model
Nominal
Pressure
(KN/T)
Max.
Pressure
(KN)
Slide
Stroke
(mm)
Stroke
No.
Die Set
Height
(mm)
Worktable
Size
(mm)
Motor
Power
(KW)
Weight
(T)
ESP-30
300/30
600
300
22
750
405*470
5.5
1.2
ESP-60
600/60
1200
430
22
780
560*460
7.5
3.5
ESP-200
2000/200
4000
650
22
780
900*660
22
8.5
ESP-315
3150/315
6300
600
20
780
1200*880
26
18
ESP-400
4000/400
8000
750
20
920
1200*1050
42
28

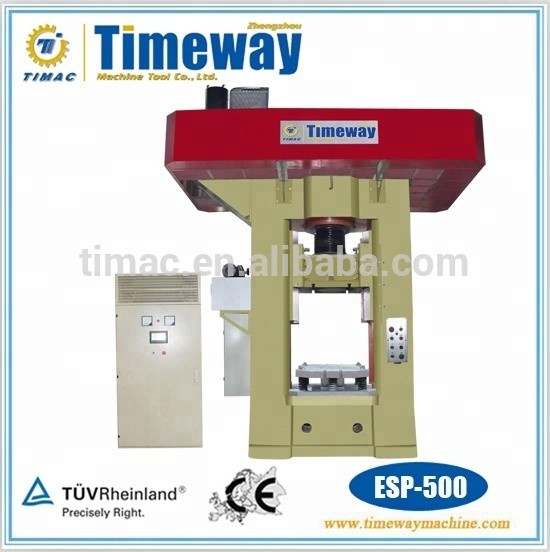

ESP-500
5000/500
10000
750
20
960
1200*1120
45
35
ESP-630B
6300/630
12000
750
18
1150
1250*1120
78
46
ESP-800B
8000/800
16000
750
18
1205
1250*1250
78
62
ESP-1000B
10000/1000
20000
800
18
1260
1300*1120
63*2
72

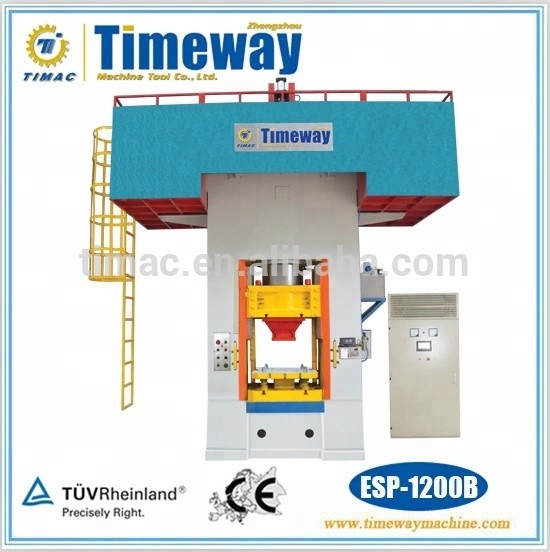

ESP-1200B
12000/1200
24000
800
17
1250
1320*1140
78*2
76
ESP-1600B
16000/1600
32000
800
14
1250
1340*1250
95*2
116
Detailed Images
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size

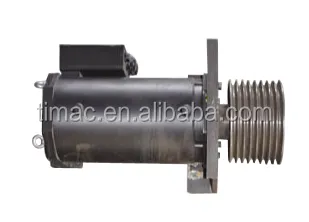

Drive: Servomotor drive system

1. Lower start current, soft starter reduce the electric shock to the electrical net.
2. Motor will start-up when press molding, and motor will be under stop condition when loading, production, mould finishing, which is power saving 55%.
3. High control precision. Speed variance is 0.0001/r.
4. Fast response time, single stroke operation, and speed freely adjusts, totally simulate manual labor's technology.
5. With strong instantaneous overload capacity, over voltage, under voltage, over current multiple protection system.
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size

Set up: Touch screen easy setting

1. Under the necessity of moulding process, touch-screen can digital set up press-times, press-strength, press-speed and so on, so as to reduce factitious factor, and improve stability of product quality. 2. Touch screen can real time display the working status, system can monitor the production process, and detect and report equipment failure automatically. 3. Touch screen can set password protection, ensure production safety.
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Operation; One button operation
1. Don't need skilled press machine operator, press the button to automatically complete the whole set of press process, and it's
laborsaving.

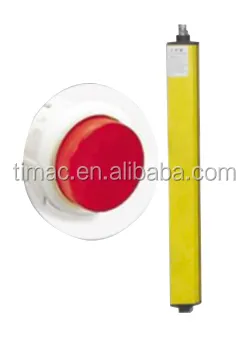

2. Set the emergency stop button, achieve emergency braking, and improve the production safety.
Protection: Multi safety protection
1. Achieve zero speed and torque brake servomotor.
2. Cylinder to push the friction plate to produce mechanical brake for the fly-wheel.
3. Slider will stop at once when power supply is anomaly.
4.Infrared safety raster form a safety screen, to ensure the safety of the personnel in the process of production.
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Maintenance: Auto lubrication system
Using program controlled grease lubrication system, completely free maintenance, improve the usage life of equipment and reduce production costs.
Client feedback
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size

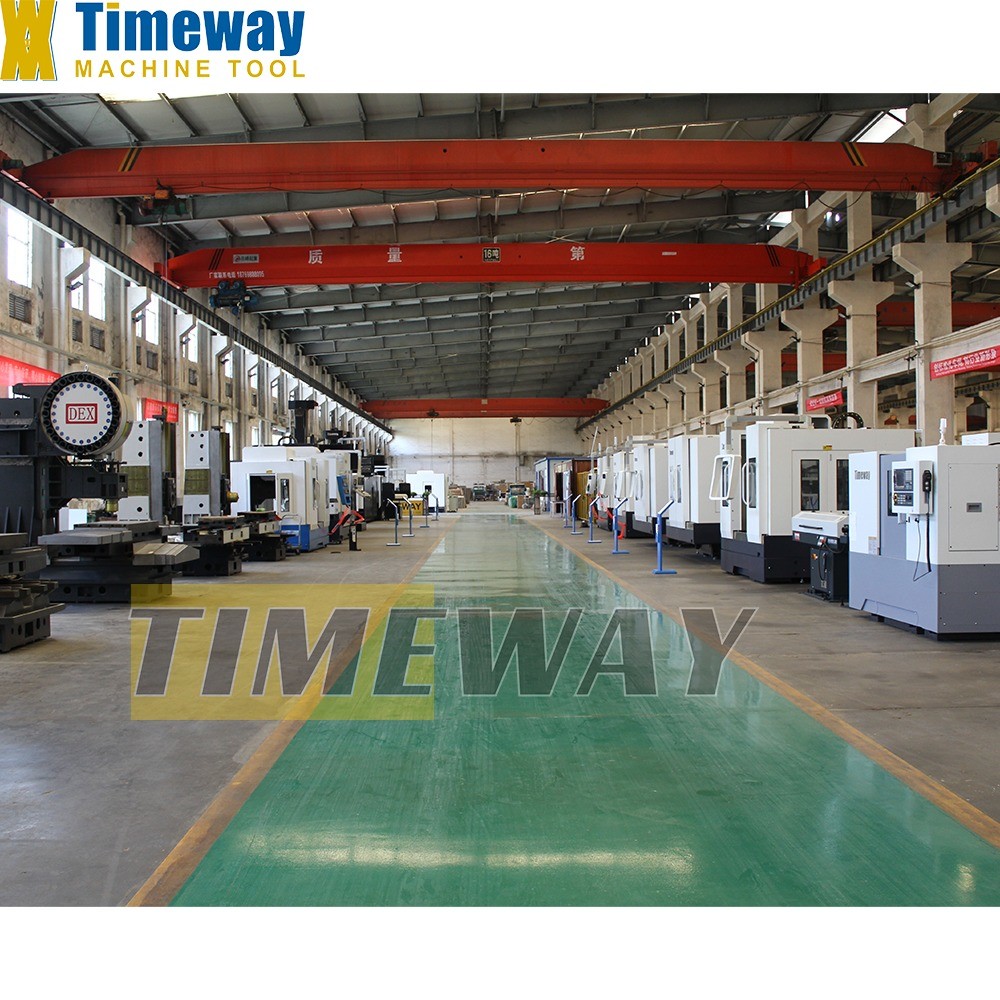

Factory Display：
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Servo Motor Control Electric Screw Press for Dies or Moulds 1200*1120mm Worktable Size
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
