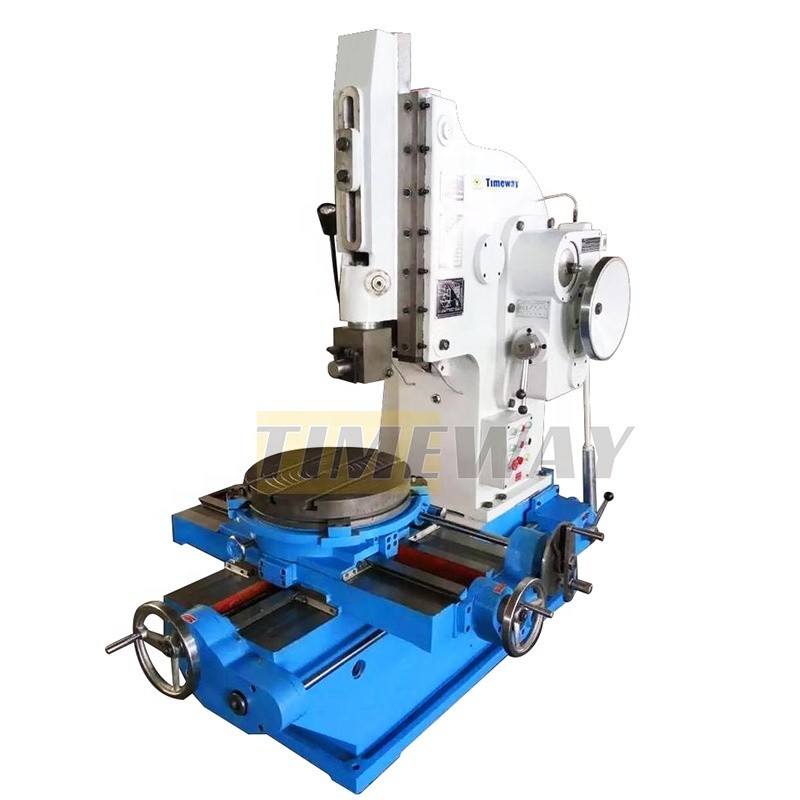

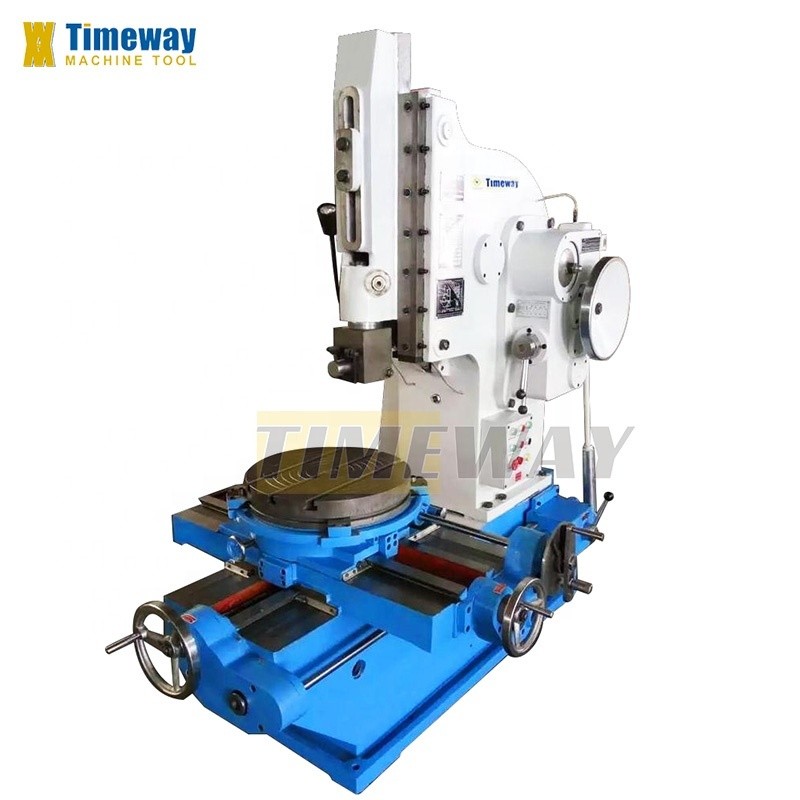

High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
Specifications
Place of Origin :
China
CNC or Not :
Normal
Condition :
New
Type :
Gear Shaping Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor
Brand Name :
TIMAC
Voltage :
220/380V
Dimension(L*W*H) :
1916*1305*1995 mm
Warranty :
1 Year
Key Selling Points :
Energy saving
Weight (KG) :
2200
Power (kW) :
3 kw
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Showroom Location :
Egypt, Canada, Turkey, Italy, France, Peru, Indonesia, Russia, Thailand
Name :
Shaper Machine
Keyword :
Slotter Machine
Model :
B-200
Max. cutting depth :
200 mm
Vertical adjustable distance of ram :
230 mm
Table diameter :
500 mm
Worktable longitudinal travel :
500 mm
Worktable cross travel :
500 mm
Main motor power :
3 kw
Machine weight :
2200 kg
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$6,800.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

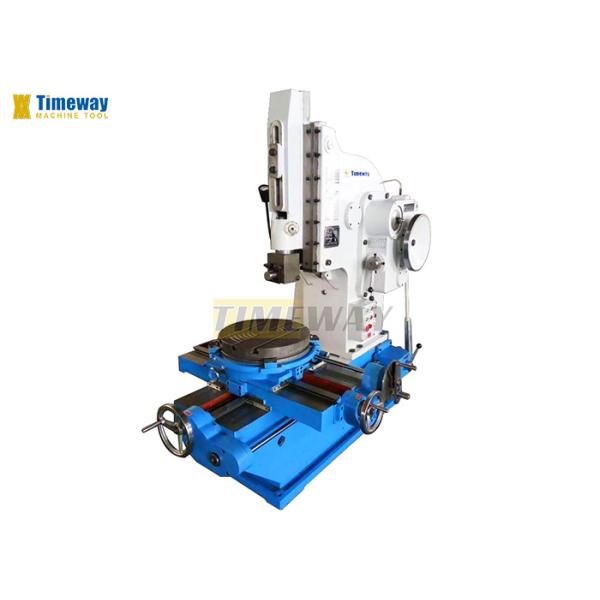

High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
Specification
Unit
B-200
B-320
B-400
Max. cutting depth
mm
200
320
400
Ram movement times
times/min
20, 32, 50, 80
20, 32, 50, 80
20, 32, 50, 80
Vertical adjustable distance of ram
mm
230
315
315
Ram swivel angle
°
0-8°
0-8°
0-8°
Table diameter
mm
500
630
630
Distance from tool support surface to column
mm
485
600
600
Distance from lower surface of carriage to table
mm
320
490
690
Worktable longitudinal travel
mm
500
630
620
Worktable cross travel
mm
500
560
560
Worktable longitudinal & cross feed rate
mm
0.08-1.21
0.08-1.21
0.08-1.21
Worktable rotary feed rate
°
0.052-0.783
0.052-0.783
0.052-0.783
Main motor power
kw
3
4
4
Main motor speed
rpm
1430
960
960
Machine weight
kg
2200
3000
3700
Machine dimensions (LxWxH)
mm
1916x1305x1995
2261x1495x2245
2290x1525x2485
Why Choose Us
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
