Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Specifications
Place of Origin :
China
Brand Name :
TIMAC
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Motor
Voltage :
380V/50HZ
Dimension(L*W*H) :
2150*2150*2200mm
Warranty :
One Year
Key Selling Points :
Multifunctional
Applicable Industries :
Manufacturing Plant
Showroom Location :
Canada, United States, Philippines, Pakistan, Thailand, Chile, Romania, Kyrgyzstan
Weight (KG) :
1500 KG
Color :
Optional
Max. slotting length :
180mm
Ram stroke adjustment :
80mm
Ram movement times per minute :
45/60/90times
Worktable size :
600*320mm
Worktable travel(X/Y) :
460*320mm
Rapid feed speed :
5m/min
X/Y-axis motor torque :
6N.m
Control type :
KND1000M CNC system
Packaging Details :
Standard Package
Port :
China Port
Supply Ability :
500 Set/Sets per Year
Price :
$100,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Specifications
Unit
BKE-180

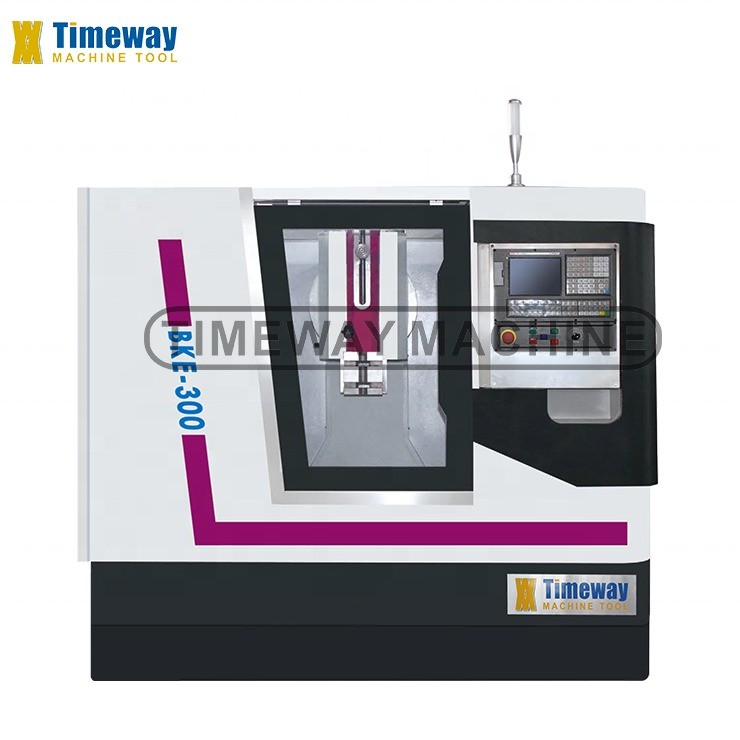

BKE-300
BKE-320
Ram max. slotting length
mm
180
300
320
Ram vertical adjustment stroke
mm
80
75
315
Ram movement times
times/min
46, 60, 90
30-180
20, 32, 50, 80
Work table size
mm
600x320
550x405
600x320
Travel of table
mm
460/320
280/330
620/560
Distance from ram to column
mm
400
505
600
Distance from ram nose to table
mm
480
540
490
X/Y-axis rapid feed speed
m/min
5
5
5
Worktable rotary angle (optional)
°
360°
360°
360°
X-axis motor torque
N.m
6
6
7.7
Y-axis motor torque
N.m
6
6
7.7
Main motor power
kw
1.5/2.2
3.7
4
Machine weight
kg
1500
2800
3700
Packing size (LxWxH）
cm
220x210x230
230x220x230
280x240x250
Why Choose Us
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
