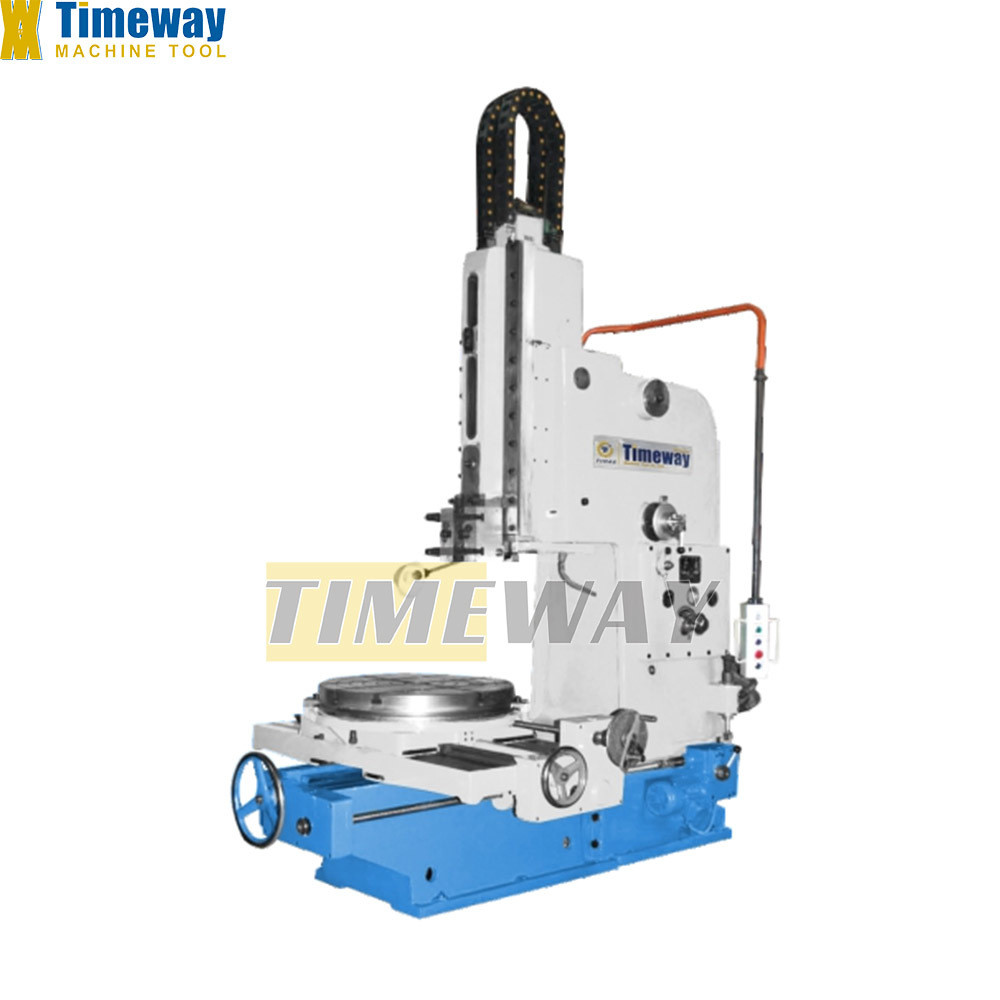

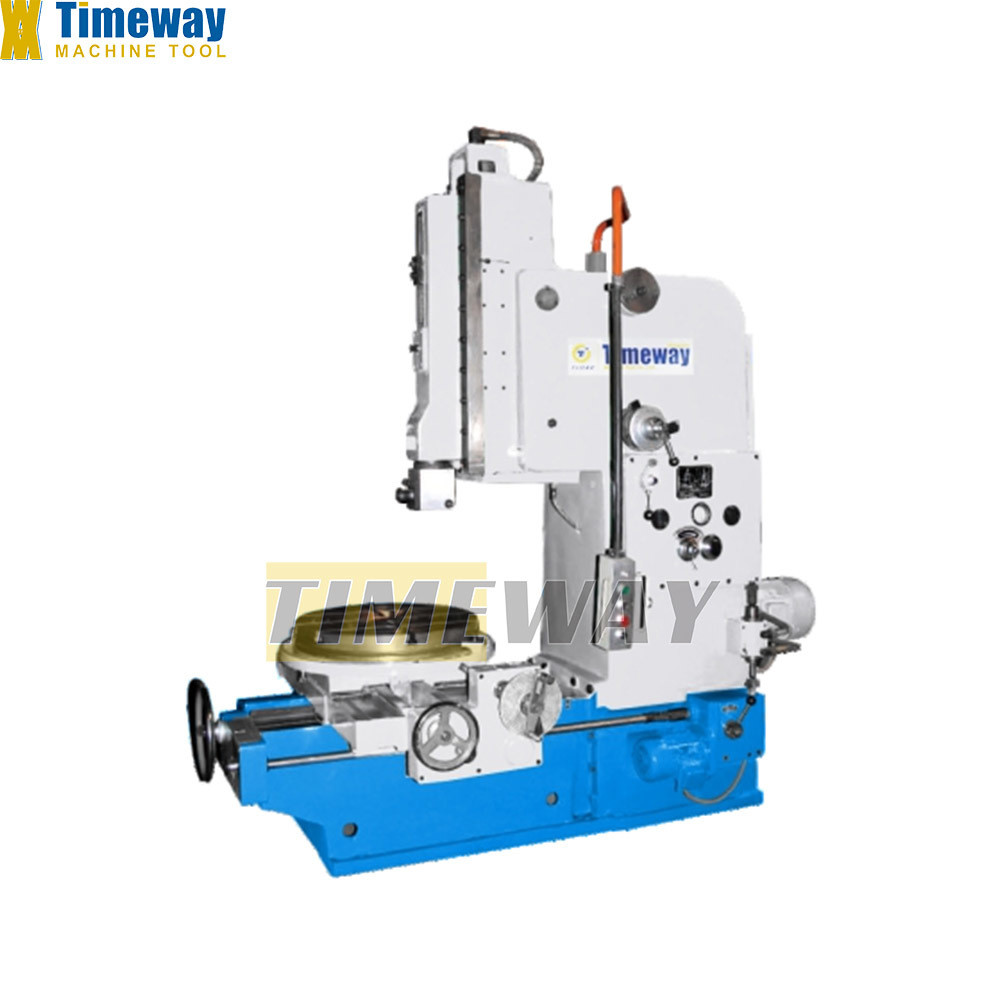

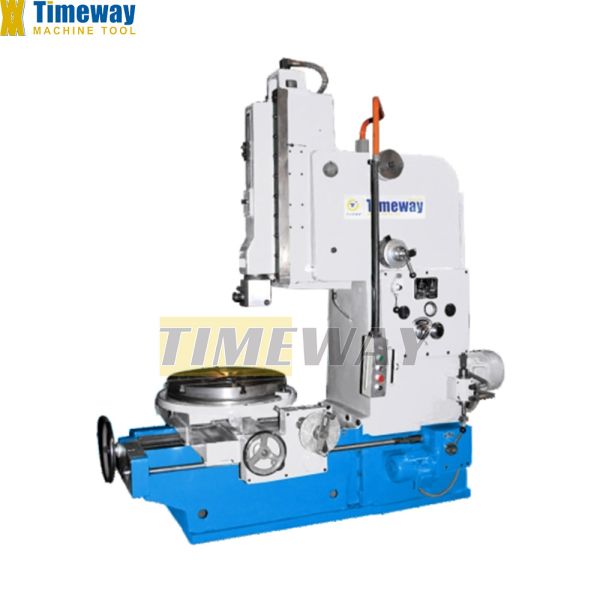

Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Warranty :
1 Year
Key Selling Points :
Competitive Price
Power (kW) :
5.5
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
Egypt, United States, Italy, Germany, Indonesia, India, Spain, Thailand, South Korea, Colombia, Bangladesh, Kyrgyzstan, Nigeria
Weight (KG) :
2900 KG
Product name :
Mechanical Slotting Machine
Model :
BH-320, BH-400
Machine Type :
Vertical
Material :
Metal
COLOR :
Support Customized
Key word :
Slotting Machine
Max. slotting length :
320/400mm
Table longitudinal travel :
620mm
Table cross travel :
535/620mm
Table diameter :
630/730mm
Price :
$11,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Product Description
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Specification
SPECIFICATION
UNIT
BH-320
BH-400
Max. stroke length of ram
mm
320
400
Min. stroke length of ram
mm
125
125
Max. slotting length
mm
320
400
Ram vertical adjustable stroke
mm
340
450
Ram slotting speed
m/min
5-22
5-22
Ratio of slotting speed and return speed
-
1:1.53
1:1.53
Ram slotting speed steps
steps
stepless
stepless
Max. slotting force
KN
16.6
16.6
Distance from tool holder to column
mm
630
680
Distance from ram nose to table
mm
500
550
Table longitudinal travel
mm
620
620
Table cross travel
mm
535
620
Table diameter
mm
Φ630
Φ730
Inclination of ram
°
0-10°
0-10°
Table feed rate
mm
0.054-1.24
0.054-1.24
Table rotary feed rate
°
0.035°-0.805°
0.035°-0.805°
Tool size
mm
25x40
25x40
Loading capacity
kg
500
800
T-slots width
mm
18H8
18H8
Main motor power
kw
5.5
5.5
Rapid feed motor power
kw
0.75
0.75
Machine weight
kg
2900
3500
Machine dimensions (LxWxH)
mm
2624x1405x2505
2624x1405x2550
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Factory Display：
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Vertical Slotting Machine BH-320 BH-400 For Metal Max. slotting length 320/400mm
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
