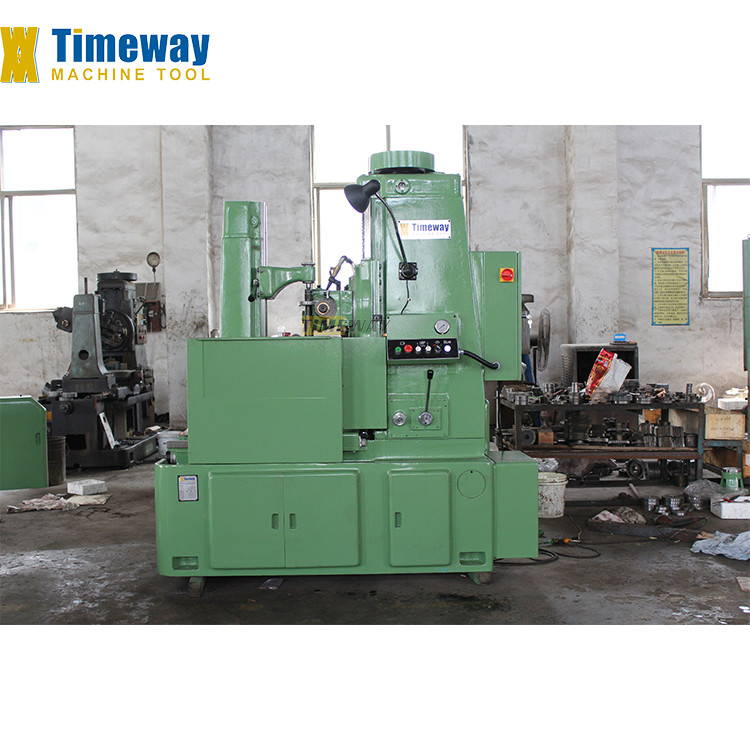

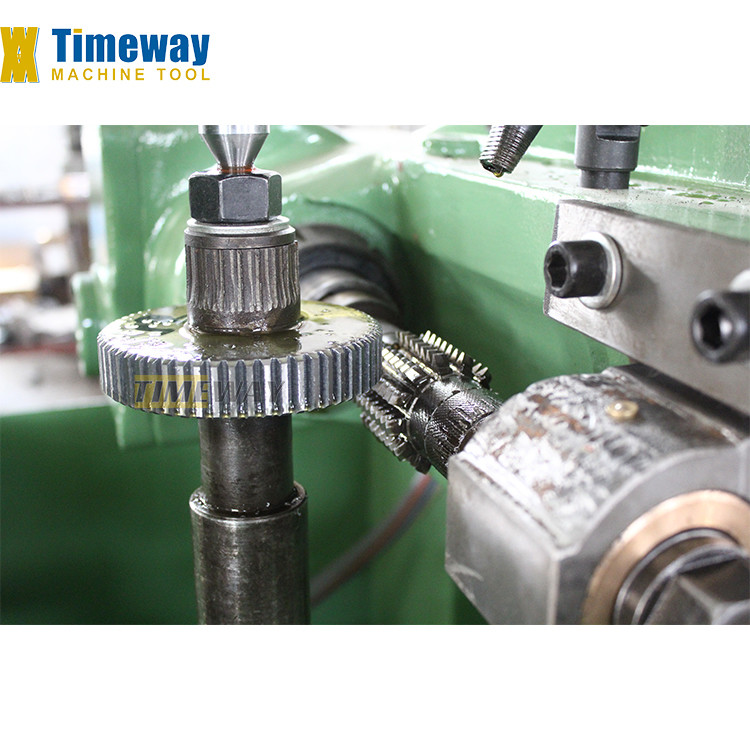

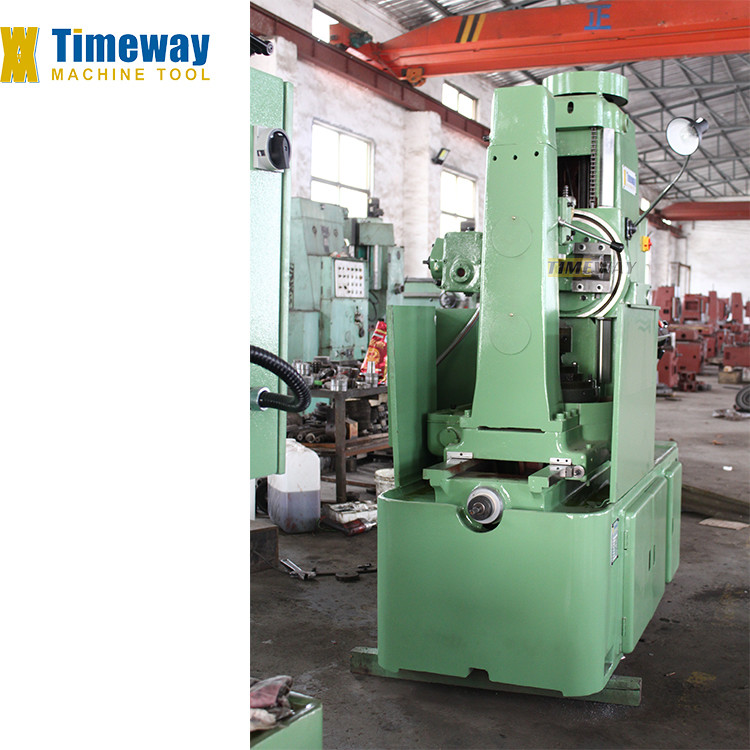

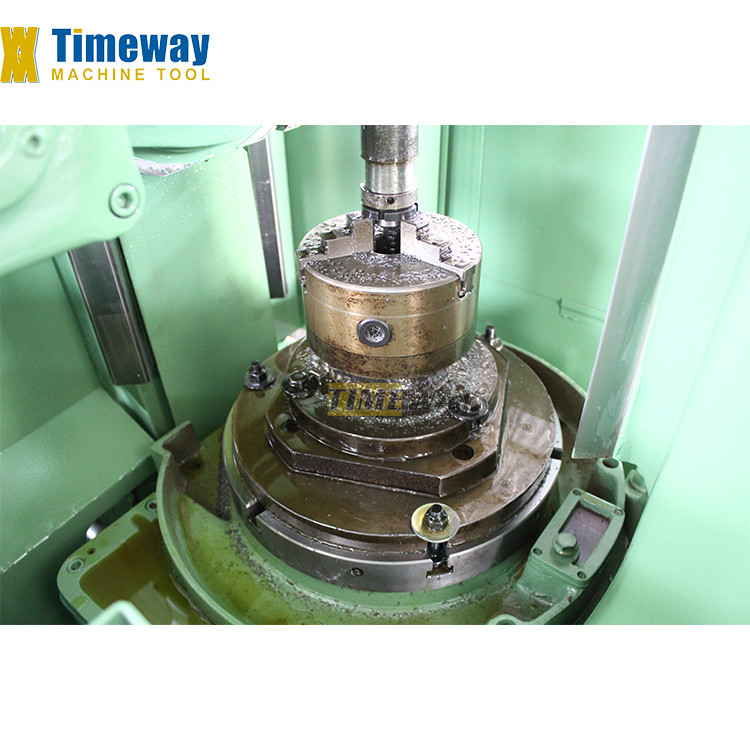

GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Specifications
Place of Origin :
Shanghai, China
CNC or Not :
Normal
Condition :
New
Type :
Gear Hobbing Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine, Gear
Brand Name :
Timac, Timeway
Voltage :
as require
Dimension(L*W*H) :
2450x1272x1790
Warranty :
1 Year
Key Selling Points :
Automatic
Weight (KG) :
4500
Power (kW) :
5.5
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Advertising Company
Showroom Location :
United States, France, Brazil, Indonesia, UAE, Colombia, Uzbekistan
After-sales Service Provided :
Online support
Max. workpiece modulus :
500
Max. processing width :
8
Hob diameter/length :
250
Worktable diameter :
160
Hobbing spindle speed range :
Hobbing spindle speed range
Gross weight/Net weight :
5300/4500
Packaging Details :
Wooden case(fumigated)
Port :
China port
Supply Ability :
100 Set/Sets per Year
Price :
$14,900.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

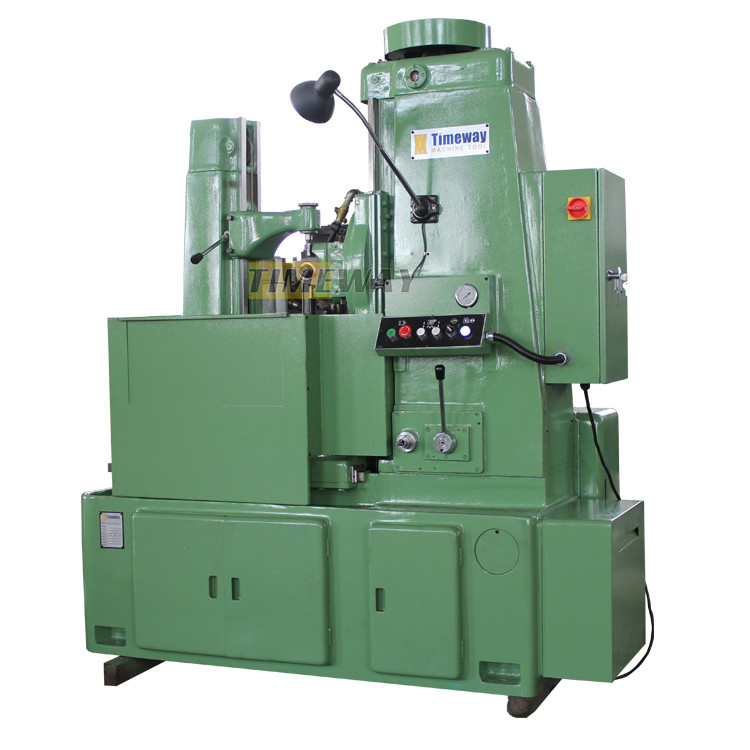

Hobbing Machine GHM-500
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Specification
Unit
GHM500
GHM800
GHM1000
Max. cutting modulus (steel)
mm
5
6
8
Max. cutting modulus (cast iron)
mm
6
8
10
Max. diameter of spur gear (with rear column)
mm
350
450
450
Max. diameter of spur gear (without rear column)
mm
500
800
1000
Max. diameter of cylindrical helical gear (30°)
mm
370
500
500
Max. diameter of cylindrical helical gear (45°)
mm
250
-
-
Max.diameter of cylindrical helical gear (60°)
mm
-
190
190
Max. vertical stroke length of hob
mm
260
275 (375)
275
Max. hobbing length
mm
240
255 (355)
255
Distance from hobbing spindle to worktable Max.
mm
320
500
500
Distance between center lines Min.
mm
25
30
30
Distance from worktable to hobbing spindle Min.
mm
170
195
195
Diameter of interchangeable hob spindle
mm
22, 27, 32
22, 27, 32
22, 27, 32
Max. diameter of hob
mm
120
120 (220)
120
Table hole diameter
mm
60
80
80
Diameter of worktable spindle
mm
30
35
35
Hobbing spindle speed steps
steps
8
-
-
Hobbing spindle speed range
rpm
50-275
48-192
48-192
Vertical hobbing feed per revolution
mm/r
0.24-4.25
0.25-3
0.25-3
Main motor power
kw
3
3
5.5
Main motor rotation speed
rpm
1430
1430
1430
Pump motor power
kw
0.125
0.04
0.04
Pump motor rotation speed
rpm
2790
-
-
Machine weight
kg
2400
3300
4300
Machine size (LxWxH)
mm
1825×935×1730
2290x1100x1910
2290x1100x1910

Standard accessories

Φ22 Hob spindle
Φ27 Hob spindle
Φ32 Hob spindle
Φ35 Workpiece spindle
Work lamp
Coolant system
small claw clutch
Big claw clutch
Protection guard
General tools
Foundation bolts
Operation manual

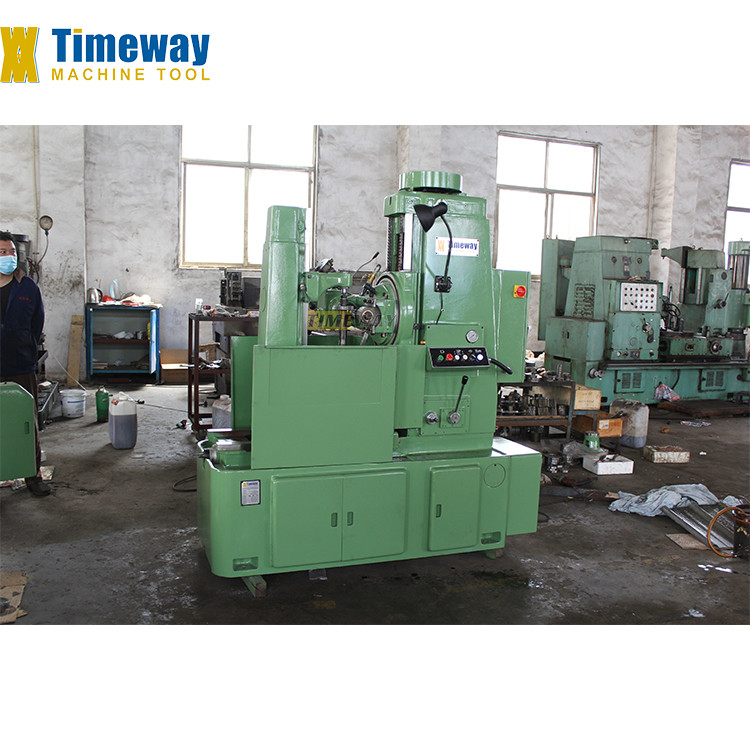

Machine Details
Positive Comments From Customers
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Factory Display：
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
